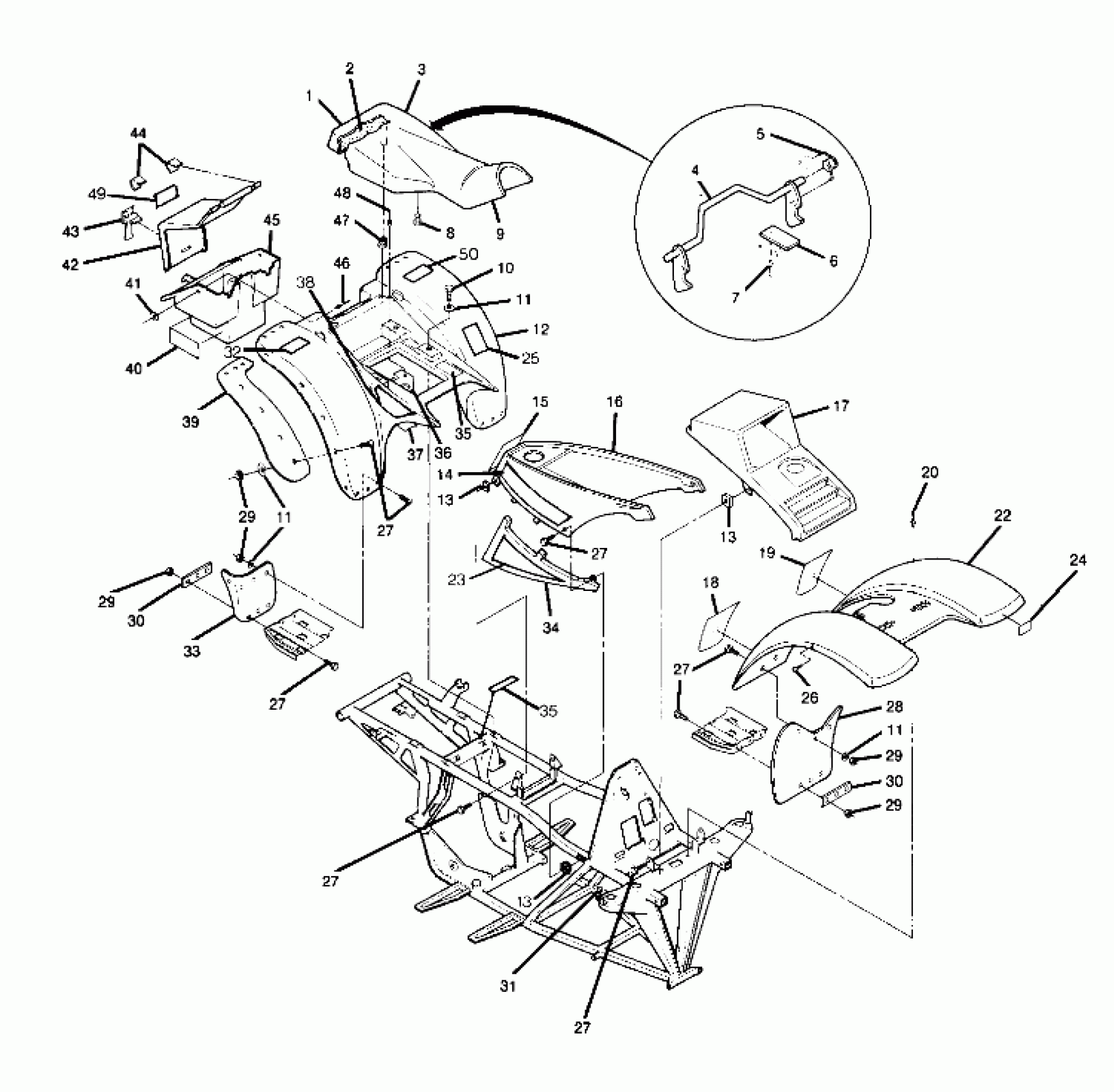

Polaris TRAIL BOSS 2X4 - W897527 Body Assembly (4916341634001A) Diagram
#
1
SEAT ASM. Substituted by 2681724-132
2681411
Unavailable
2
SEAT BUN Substituted by 2681393
5431077
Unavailable
3
COVER, SEAT Substituted by 2681723-132
2681412
Unavailable
4
LATCH,SEAT
1011558
Unavailable
5
SPRING, LATCH
7041158
Unavailable
6
BRACKET,LEVER RETAINER
5211033
$29.25
7
BLIND RIVET(50)
7621403
$1.49
8
Bumper, Rubber
5410414
$3.19
9
BASE, SEAT Substituted by 2681393
5430974
Unavailable
10
BOLT(10)
7512232
$1.49
11
WASHER(10)
7558301
$1.49
11
WASHER(10)
7558301
$1.49
11
WASHER(10)
7558301
$1.49
12
CAB, REAR [No Longer Available] (Fender) - No. 22
5430991
Unavailable
13
NUT, SPEED(10)
7670060
$3.99
13
NUT, SPEED(10)
7670060
$3.99
13
NUT, SPEED(10)
7670060
$3.99
14
DECAL,TANK COVER(2X4) [No Longer Available]
7072803
Unavailable
15
DECAL,AGE WARN.(CPSC) Substituted by 7074827
7072692
Unavailable
16
COVER, FUEL TANK Substituted by 5431197-133
5430972
Unavailable
17
COVER, OIL TANK [No Longer Available]
5430973
Unavailable
18
DECAL(CPSC),WARNING Substituted by 7073147
7072720
Unavailable
19
DECAL,WARNING(CPSC) [No Longer Available]
7072693
Unavailable
20
RIVET(50)
7621457
$1.49
22
CAB, FRONT [No Longer Available]
5430990
Unavailable
23
DECAL,LH SIDE,(2X4) [No Longer Available]
7072708
Unavailable
23
DECAL,RH SIDE,(2X4) [No Longer Available]
7072709
Unavailable
24
LABEL, 'U.S.A.' [No Longer Available]
7073025
Unavailable
25
DECAL(CPSC),TIRE PRESS(2X4) [No Longer Available]
7072809
Unavailable
26
CLIP, PUSH-ON(10)
7670052
$1.99
27
BOLT, BLACK(10)
7512282
$1.49
27
BOLT, BLACK(10)
7512282
$1.49
27
BOLT, BLACK(10)
7512282
$1.49
27
BOLT, BLACK(10)
7512282
$1.49
27
BOLT, BLACK(10)
7512282
$1.49
27
BOLT, BLACK(10)
7512282
$1.49
28
MUDFLAP, LH FRONT Substituted by 5850082-070
5850082
$11.51
28
MUDFLAP, RH FRONT Substituted by 5850083-070
5850083
Unavailable
29
NUT-LOCK(10)
7542122
$1.49
29
NUT-LOCK(10)
7542122
$1.49
29
NUT-LOCK(10)
7542122
$1.49
29
NUT-LOCK(10)
7542122
$1.49
30
BRKT, MUD FLAP Substituted by 5211131-067
5211131
Unavailable
30
BRKT, MUD FLAP Substituted by 5211131-067
5211131
Unavailable
31
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
32
DECAL(CPSC),WARN,R.RACK [No Longer Available]
7072788
Unavailable
33
MUDFLAP,LH,LOW,REAR
5850076
Unavailable
33
MUDFLAP,RH,LOW REAR
5850077
$23.65
34
COVER,SIDE PANEL,LH [No Longer Available]
5430970
Unavailable
34
COVER,SIDE PANEL,RH [No Longer Available]
5430971
Unavailable
35
DECAL,FILTER ELEMENT [No Longer Available]
7072791
Unavailable
35
DECAL,FILTER ELEMENT [No Longer Available]
7072791
Unavailable
36
BRKT,R.HOLDDOWN
5220880
Unavailable
37
TAPE,FOIL,R.CAB (Inside)
5810416
Unavailable
38
DECAL,CAB,REAR [No Longer Available]
7072705
Unavailable
39
FLAP,MUD,LH REAR
5850060
Unavailable
39
FLAP,MUD,RH REAR
5850061
Unavailable
40
TAPE, FOIL
5810310
Unavailable
41
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
42
LID,TOOL BOX
5430910
Unavailable
43
STRAP,TOOL COMPARTMENT
5410425
Unavailable
44
CLIP, LID HINGE(10)
7670050
Unavailable
45
BOX,TOOL COMP.
5430882
Unavailable
46
RIVET(50)
7621462
$1.49
47
GROMMET
5410413
Unavailable
48
RIVET,3/16X.402(50)
7621432
$1.49
49
DECAL(CPSC),PASS.WRN. [No Longer Available]
7072805
Unavailable
50
DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]
7072786
Unavailable
