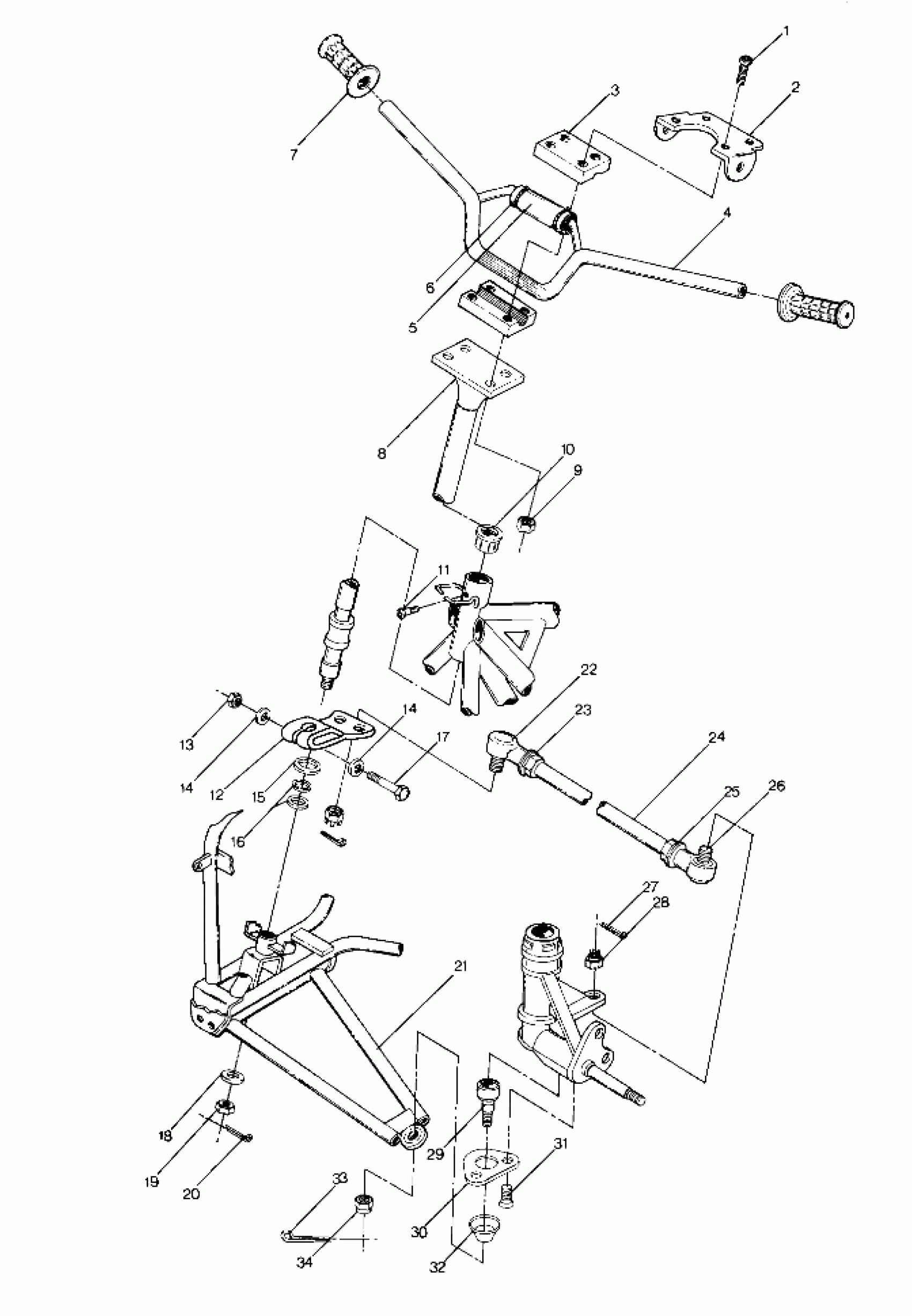

Polaris TRAIL BOSS 2X4 - W887527 Steering Assembly (4914771477011A) Diagram

#

Description
Price

1

BOLT(10)

7512272

Unavailable

2

BRACKET,H/L MT.

5220484

Unavailable

3

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

4

HANDLEBAR WELD. Substituted by 5224316-067

1823131

Unavailable

5

Pad, Handlebar

5521181

Unavailable

6

TIE, CABLE(10)

7080356

$2.39

7

GRIP, HANDLEBAR

5431030

$24.27

8

POST, STEERING Substituted by 1843020-067

1843020

Unavailable

9

NUT-LOCK(10)

7542122

$1.49

10

BUSHING,STEERING

5430856

Unavailable

11

SCREW

7510503

Unavailable

12

FROG,STEERING

5220546

Unavailable

13

NUT LOCK(10)

7542403

$3.99

14

WASHER(10) Substituted by 7555806

7555720

$0.79

14

WASHER(10) Substituted by 7555806

7555720

$0.79

15

WASHER(10)

7555726

$1.59

16

O-RING

5410483

Unavailable

17

BOLT Substituted by 7515491

7515433

$1.59

18

WASHER(10)

7555721

$1.49

19

NUT, LOCK(10)

7542717

Unavailable

20

PIN, COTTER

7661207

Unavailable

21

A-FRAME,LH WELD.

1580031

Unavailable

21

A-FRAME,RH WELD.

1580032

Unavailable

22

ROD END, RH Substituted by 7060172

7060138

$56.65

23

NUT, RH, 10 MM.(10)

7546901

$2.39

24

TIE ROD

5020473

Unavailable

25

NUT, LH, 10 MM.(10)

7546902

Unavailable

26

ROD END

7060147

$56.65

27

PIN COTTER(10)

7661203

$1.49

28

NUT, CASTLE(10)

7546904

$4.79

29

BALL JOINT Substituted by 7080673 (Incl. 32-34)

7080364

Unavailable

30

BRACKET-BALL JOINT

5211121

$31.99

31

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

32

SEAL

-------

Unavailable

33

Cotter Pin

-------

Unavailable

34

Nut

-------

Unavailable
