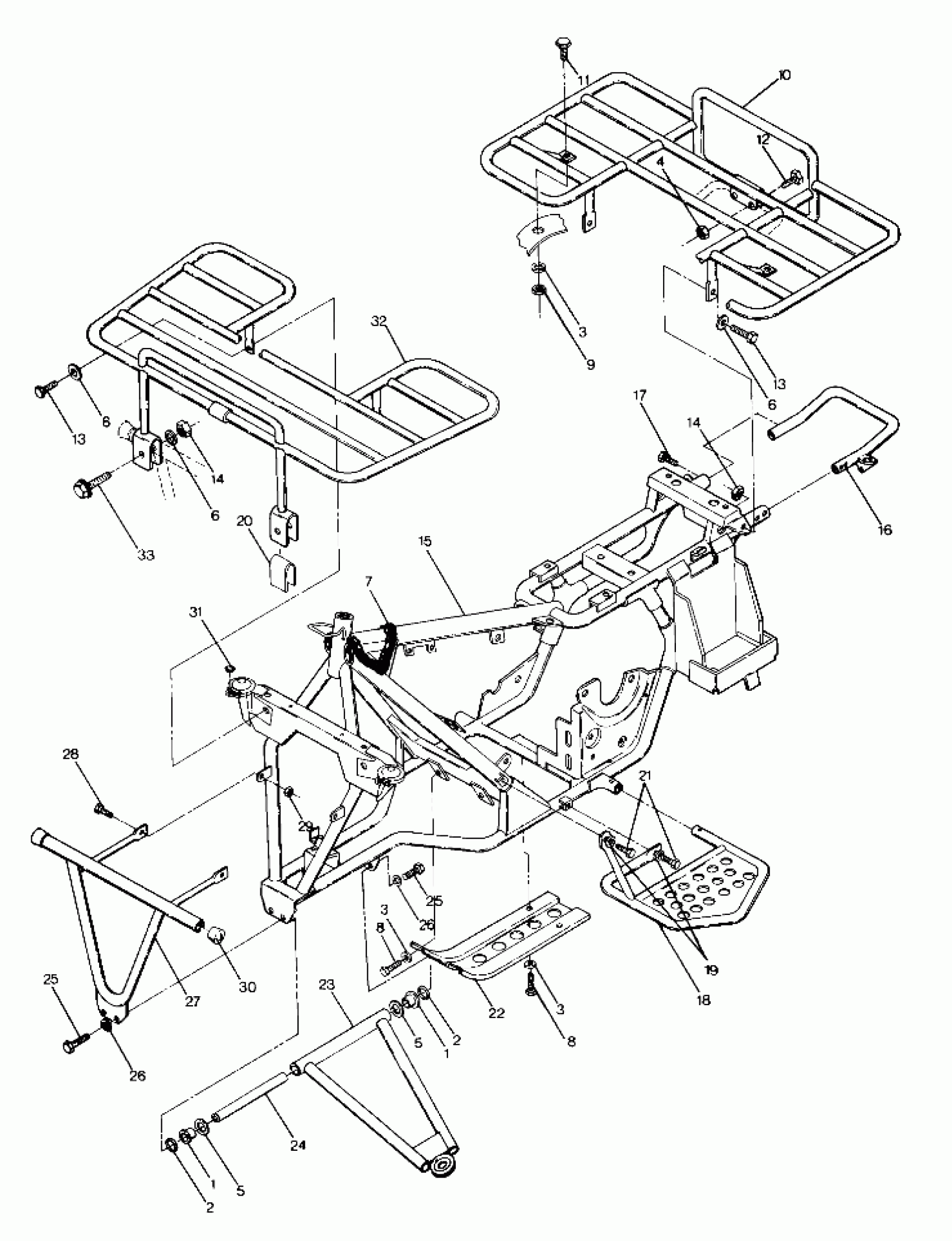

Polaris TRAIL BOSS 2X4 - W887527 Frame Assembly with Racks (4914771477003A) Diagram

#

Description
Price

1

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

1

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

2

O RING

5410458

Unavailable

2

O RING

5410458

Unavailable

3

WASHER,WROUGHT(10)

7558302

$1.59

3

WASHER,WROUGHT(10)

7558302

$1.59

3

WASHER,WROUGHT(10)

7558302

$1.59

4

NUT(10)

7542124

Unavailable

5

WASHER(10)

7555774

Unavailable

5

WASHER(10)

7555774

Unavailable

6

WASHER WROUGHT(10)

7558403

$4.79

6

WASHER WROUGHT(10)

7558403

$4.79

6

WASHER WROUGHT(10)

7558403

$4.79

7

SEAL, AIR FOAM

5810348

Unavailable

8

BOLT(10)

7512232

$1.49

8

BOLT(10)

7512232

$1.49

9

NUT-LOCK(10)

7542122

$1.49

10

RACK, REAR Substituted by 2670089

2670098

Unavailable

11

BOLT(10)

7512269

Unavailable

12

BOLT

7512270

Unavailable

13

SCREW(10)

7512310

$2.39

13

SCREW(10)

7512310

$2.39

14

NUT, NYLOK(10)

7542327

$4.79

14

NUT, NYLOK(10)

7542327

$4.79

15

FRAME,(2X4,'88) [No Longer Available]

1040163

Unavailable

16

BUMPER

2670097

Unavailable

17

SCREW(10)

7512252

Unavailable

18

PAD,FOOT,LH,WELD

1040132

Unavailable

18

PAD,FOOT,RH,WELD [No Longer Available]

1040133

Unavailable

19

LOCK WASHER(10)

7552901

$1.49

20

PAD [No Longer Available]

5850063

Unavailable

21

BOLT(10)

7512315

$4.79

22

GUARD, ROCK

5220615

Unavailable

23

A-FRAME,LH WELD.

1580031

Unavailable

23

A-FRAME,RH WELD.

1580032

Unavailable

24

SHAFT,'A' ARM

5020477

Unavailable

25

BOLT(10) Substituted by 7512492

7515458

Unavailable

25

BOLT(10) Substituted by 7512492

7515458

Unavailable

26

WASHER(10)

7552603

$1.49

26

WASHER(10)

7552603

$1.49

27

BUMPER Substituted by 2670086-067

2670086

Unavailable

28

BOLT(10)

7515481

$2.63

29

NUT-LOCK(10)

7542439

$1.49

30

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

31

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

32

RACK,FRONT,WELD. Substituted by 2670088

2670103

Unavailable

33

BOLT(10)

7515319

$4.79
