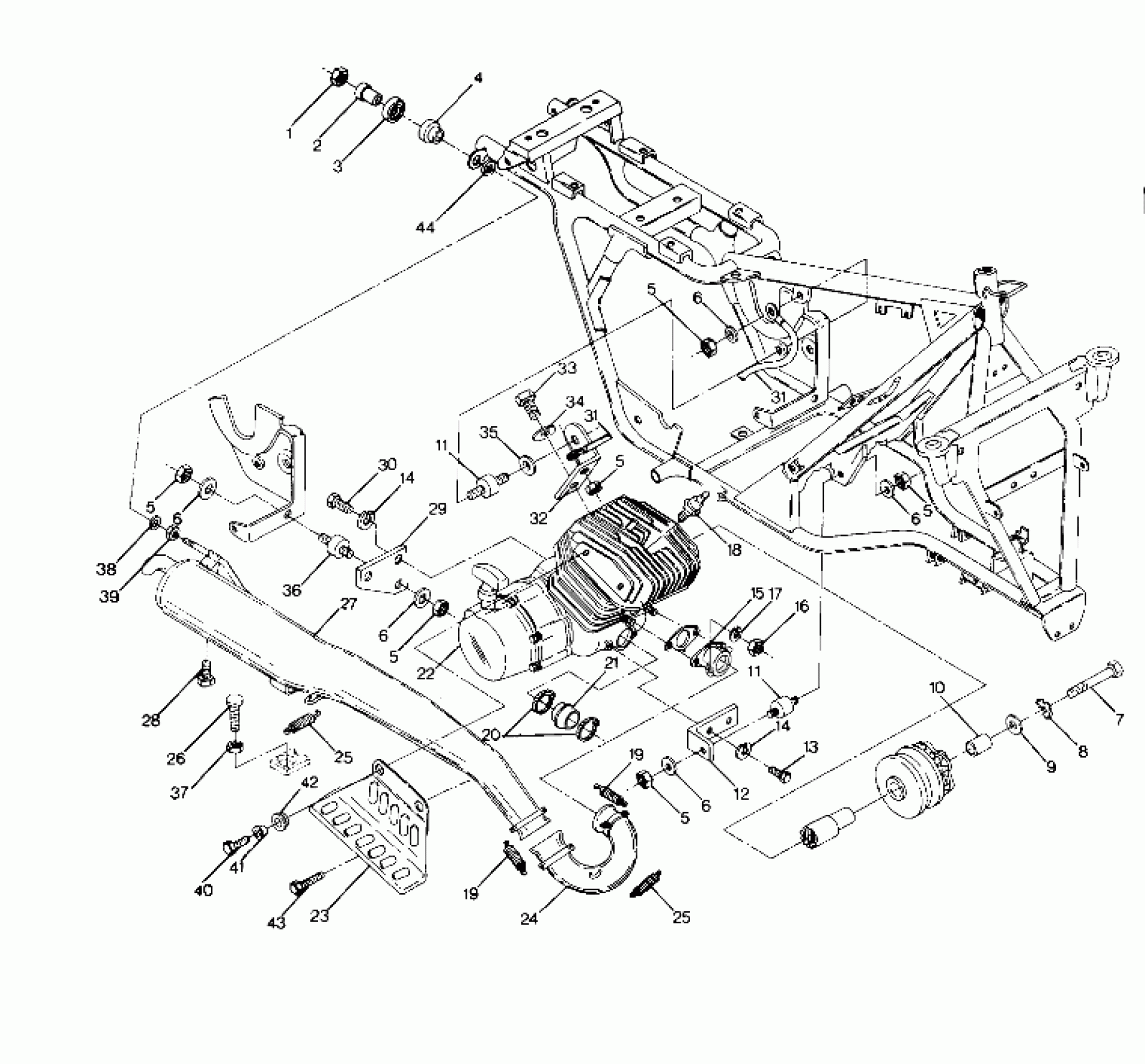

Polaris TRAIL BOSS 2X4 - W887527 Engine and Muffler Mounting (4914771477005A) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

2

BUSHING,MUFFLER MT.

5020438

Unavailable

3

CAP,VIB. DAMPNER

5220630

Unavailable

4

DAMPENER-MTR.MT.

5410326

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

5

NUT LOCK(10)

7542403

Unavailable

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

6

WASHER(10)

7555801

$3.97

7

BOLT(10)

7512566

$33.24

8

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

9

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

10

BUSHING-.437 X.770 X.50

5430261

$7.14

11

MOUNT,MOTOR

3110026

$40.46

11

MOUNT,MOTOR

3110026

$40.46

12

PLATE,FRONT MT.

5220589

Unavailable

13

SCREW(10)

7512490

$3.97

14

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

14

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

15

MANIFOLD

1260509

Unavailable

16

NUT(10)

3080285

Unavailable

17

WASHER LOCK ,(10)

3080530

$3.17

18

SPARKPLUG, RN4YC(3)

3070167

Unavailable

19

SPRING, EXHAUST(10)

7042031

$6.46

19

SPRING, EXHAUST(10)

7042031

$6.46

20

CABLE, TIE

7080346

Unavailable

21

BOOT,CLUTCH INTAKE

5410421

$11.32

22

ENG.EC25PF-03 [No Longer Available]

1211458

Unavailable

23

HEATSHIELD,MUFFLER Substituted by 5220671-067

5220671

Unavailable

24

PIPE, HEADER

1260511

$102.38

25

SPRING-EXHAUST(10)

7042029

$5.65

25

SPRING-EXHAUST(10)

7042029

$5.65

26

MOUNT, MOTOR

3110030

Unavailable

27

MUFFLER WELD.

1260524

Unavailable

28

BOLT(10)

7512666

$2.38

29

PLATE,REAR MOUNT

5220588

Unavailable

31

CABLE,GROUND/ENG.

4010067

Unavailable

31

CABLE,GROUND/ENG.

4010067

Unavailable

32

MOUNT,ENG.,TOP Substituted by 5220471-067

5220471

Unavailable

33

BOLT(10)

7515321

Unavailable

34

LOCK WASHER(10)

7552901

$1.19

35

INSULATOR,MOTOR MT.

5430802

$28.32

36

MOUNT, MOTOR

3110028

Unavailable

37

NUT HEX(10)

7542401

$2.38

38

WASHER(10)

7555716

$1.59

39

NUT HEX(10)

7542301

$1.59

40

BOLT&WASHER

3083730

$4.76

41

COLLAR

3083732

Unavailable

42

MOUNTING,RUBBER

3083731

$4.92

43

BOLT&WASHER

3083729

Unavailable

44

WASHER,RUBBER

5410436

$1.59
