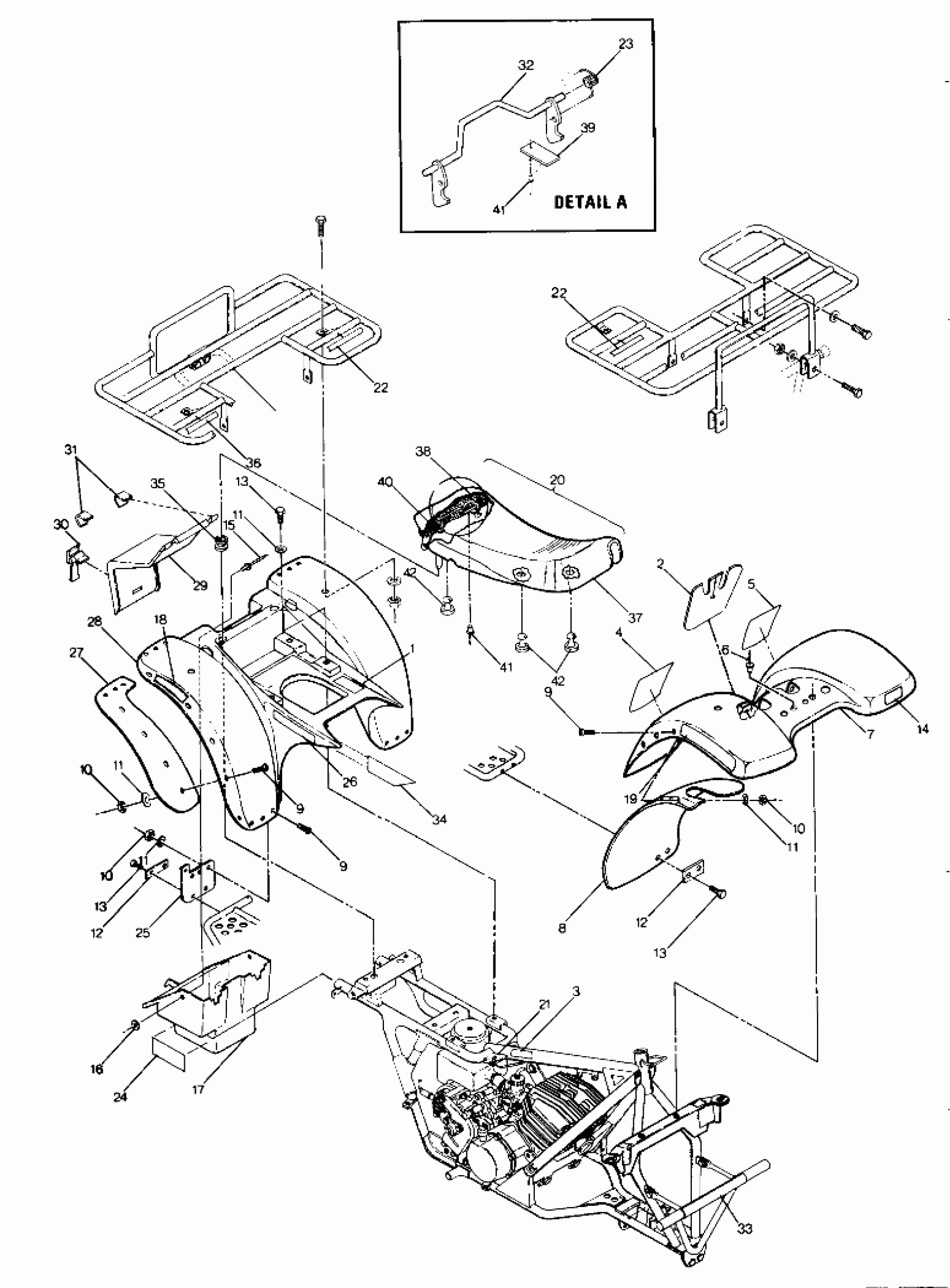

Polaris TRAIL BOSS 2X4 - W887527 BODY ASSEMBLY (4914771477001A) Diagram

#

Description
Price

1

DECAL,FILTER ELEMENT [No Longer Available]

7072403

Unavailable

2

FLAP,SPLASH GUARD EXT.

5850080

Unavailable

3

DECAL, MANUF. [No Longer Available]

7072535

Unavailable

4

DECAL,OPER.WARN,ENG. (English)

7072554

Unavailable

5

DECAL,WARN.(FRENCH) [No Longer Available] (French)

7072642

Unavailable

6

RIVET(50)

7621457

$1.49

7

CAB,FRONT,LT.BLUE Substituted by 5430990-107

5430835

Unavailable

8

MUDFLAP,FRONT,LH

5850071

Unavailable

8

MUDFLAP,FRONT,RH

5850072

Unavailable

9

BOLT, BLACK(10)

7512282

$1.49

9

BOLT, BLACK(10)

7512282

$1.49

9

BOLT, BLACK(10)

7512282

$1.49

10

NUT-LOCK(10)

7542122

$1.49

10

NUT-LOCK(10)

7542122

$1.49

10

NUT-LOCK(10)

7542122

$1.49

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

12

BRACKET,MUD FLAP Substituted by 5211020-067

5211020

Unavailable

12

BRACKET,MUD FLAP Substituted by 5211020-067

5211020

Unavailable

13

BOLT(10)

7512232

$1.49

13

BOLT(10)

7512232

$1.49

13

BOLT(10)

7512232

$1.49

14

LABEL, 'U.S.A.' [No Longer Available]

7073025

Unavailable

15

RIVET(50)

7621462

$1.49

16

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

17

BOX,TOOL COMP.

5430882

Unavailable

18

DECAL,LH R.FDR,STROBE [No Longer Available]

7072520

Unavailable

18

DECAL,RH R.FDR,STROBE [No Longer Available]

7072521

Unavailable

19

DECAL,LH F.FDR,STROBE [No Longer Available]

7072518

Unavailable

19

DECAL,RH F.FDR,STROBE [No Longer Available]

7072519

Unavailable

20

SEAT ASM, (T.B.) Substituted by 2681240 (Incl. 22-23, 32, 38-42)

2681362

Unavailable

21

STRAP, BLK

7080272

Unavailable

22

DECAL,WRN.HVY LOAD [No Longer Available]

7072605

Unavailable

22

DECAL,WRN.HVY LOAD [No Longer Available]

7072605

Unavailable

23

SPRING, LATCH

7041158

Unavailable

24

TAPE, FOIL

5810310

Unavailable

25

FLAP,MUD,LH REAR

5850062

Unavailable

25

FLAP,MUD,RH REAR

5850066

Unavailable

26

DECAL, 2X4 [No Longer Available]

7072522

Unavailable

27

FLAP,MUD,LH REAR

5850060

Unavailable

27

FLAP,MUD,RH REAR

5850061

Unavailable

28

CAB, REAR [No Longer Available]

5430991

Unavailable

29

LID,TOOL BOX

5430910

Unavailable

30

STRAP,TOOL COMPARTMENT

5410425

Unavailable

31

CLIP, LID HINGE(10)

7670050

Unavailable

32

LATCH,SEAT

1011558

Unavailable

33

DECAL,F.SUSP.(2X4) [No Longer Available]

7072536

Unavailable

34

TAPE, FOIL

5810349

Unavailable

35

GROMMET

5410413

Unavailable

36

DECAL,REAR RACK [No Longer Available]

7072604

Unavailable

37

COVER,SEAT,(ATV) Substituted by 2681241

2681359

Unavailable

38

FOAM BUN, SEAT [No Longer Available]

5430803

Unavailable

39

BRACKET,LEVER RETAINER

5211033

$29.25

40

BASE, SEAT Substituted by 2681288

5430773

Unavailable

41

BLIND RIVET(50)

7621403

$1.49

41

BLIND RIVET(50)

7621403

$1.49

42

Bumper, Rubber

5410414

$3.19

42

Bumper, Rubber

5410414

$3.19
