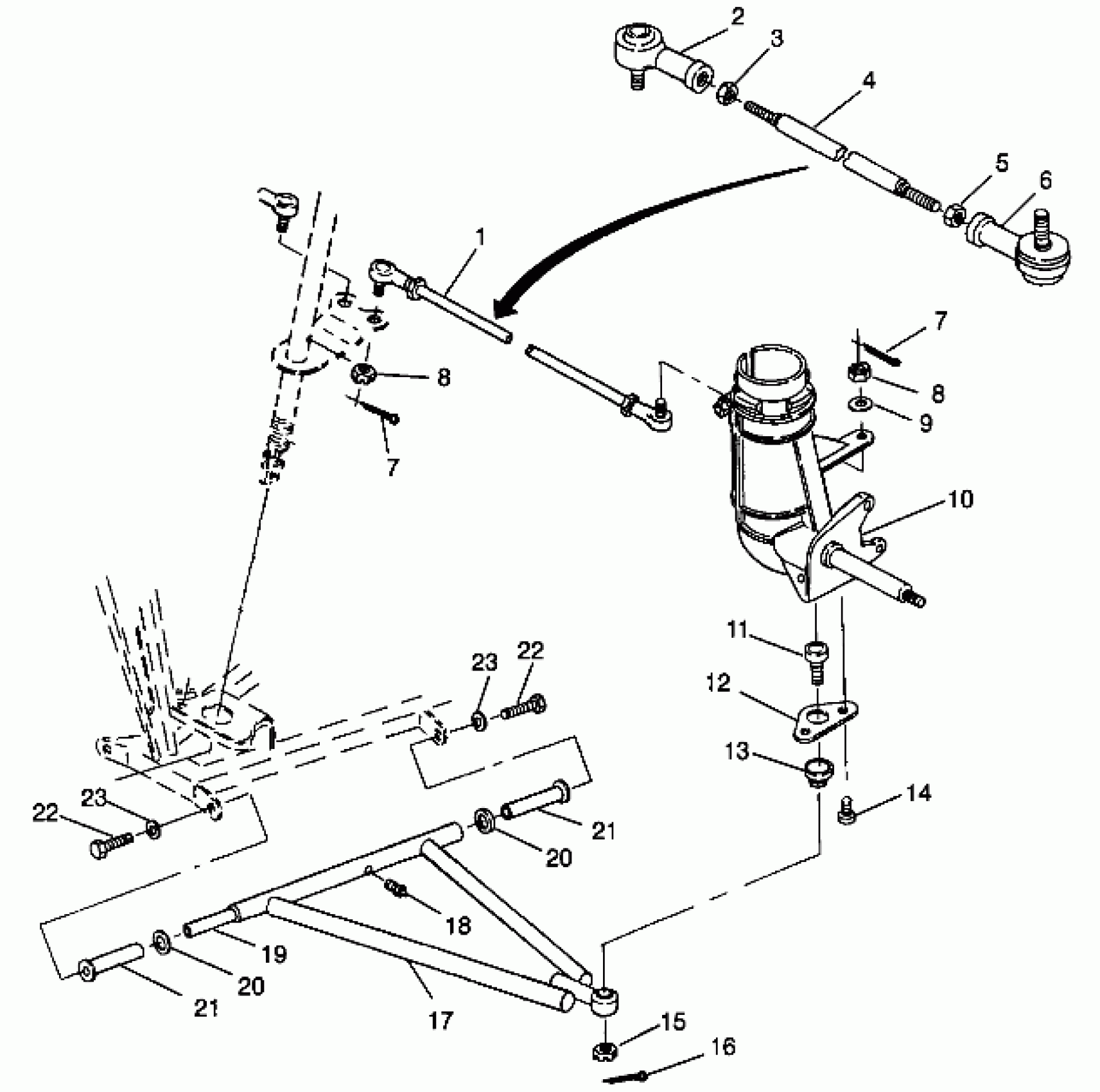

Polaris TRAIL BOSS 250 - W958527 STEERING/A-ARM ASSEMBLY Trail Boss W958527 (4930323032B006) Diagram

#

Description
Price

1

TIEROD ASM,RELUBE

1822307

Unavailable

2

ROD,END,RH,10 MM.

7060172

$60.70

3

NUT, RH, 10 MM.(10)

7546901

$2.38

4

TIE ROD

5020478

$52.60

5

NUT, LH, 10 MM.(10)

7546902

Unavailable

6

ROD END,LH,W/FTG,10 MM.

7060171

$60.70

7

PIN COTTER(10)

7661203

$1.19

7

PIN COTTER(10)

7661203

$1.19

8

NUT, CASTLE(10)

7546904

$4.76

8

NUT, CASTLE(10)

7546904

$4.76

9

WASHER(10)

7555806

$0.79

10

Support, Strut & Spindle, RH (See Pg. , Ref. )

----

Unavailable

10

Support, Strut & Spindle, LH (See Pg. , Ref. )

----

Unavailable

11

BALL JOINT Substituted by 7080673

7080364

$28.32

12

BRACKET-BALL JOINT

5211121

$32.37

13

Boot, Rubber

5410548

$4.84

14

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

15

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

16

COTTER PIN(10)

7661401

$0.79

17

KIT,A-FRAME,LH

2200477

Unavailable

17

KIT,A-FRAME,RH (Incl. 7, 17, 18, 20-23)

2200478

Unavailable

18

ZERK,FITTING,THREADED(10)

7080433

$1.19

19

SHAFT, A-ARM,(2X4)

5020680

Unavailable

20

BUSHING,A-ARM SPACER(10)

5020677

$10.32

20

BUSHING,A-ARM SPACER(10)

5020677

$10.32

21

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

21

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

22

BOLT(10) Substituted by 7512492

7515458

$1.19

22

BOLT(10) Substituted by 7512492

7515458

$1.19

23

WASHER(10)

7552603

$0.79

23

WASHER(10)

7552603

$0.79
