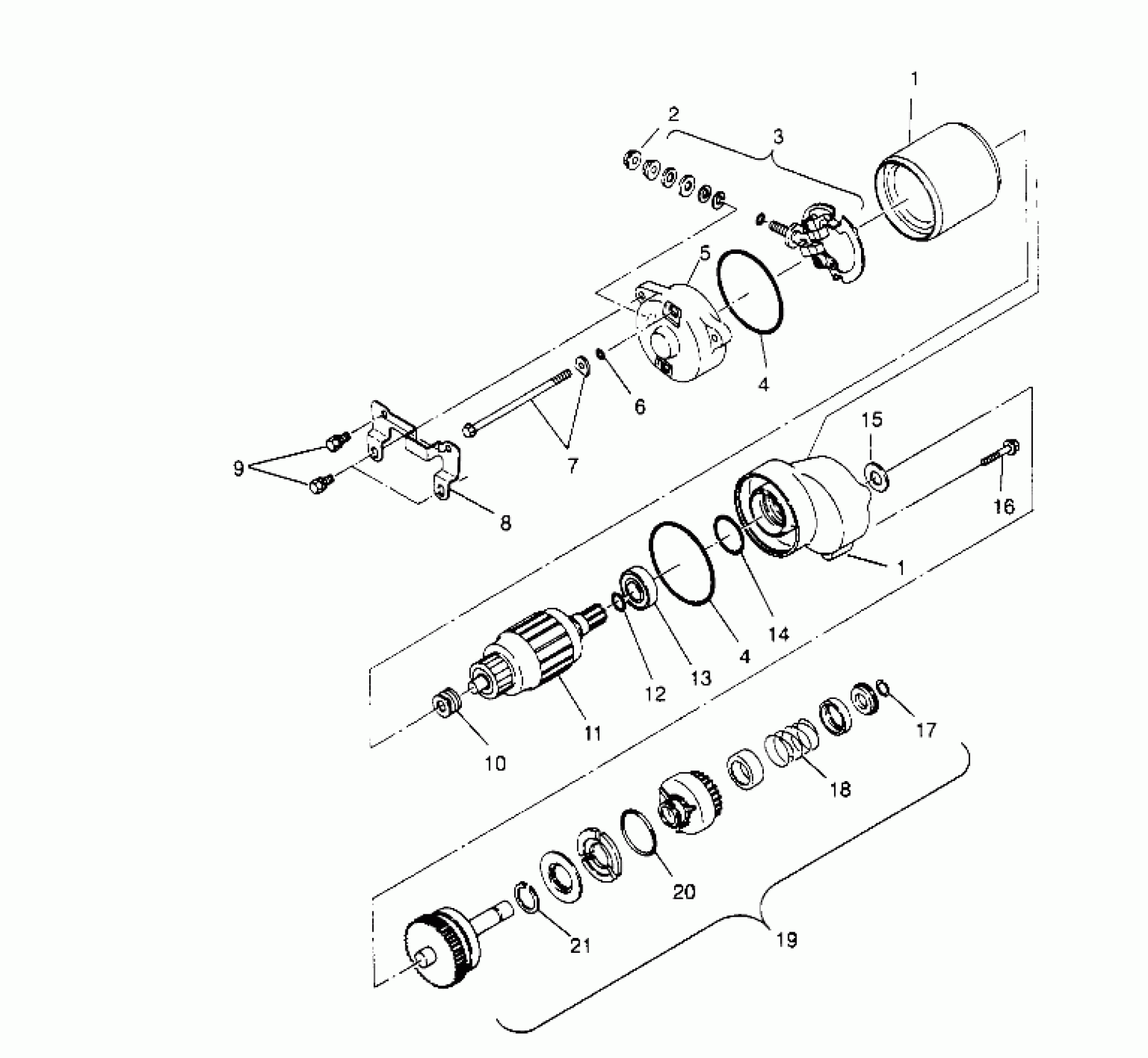

Polaris TRAIL BOSS 250 - W958527 STARTING MOTOR Trail Boss W958527 (4930323032C006) Diagram

#

Description
Price

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-4, 6, 7, 10-14)

3084403

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085392 (Inc. 1-4, 6, 7, 10-15, 17-21)

3084402

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-4, 6, 7, 10-14)

3084403

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085392 (Inc. 1-4, 6, 7, 10-15, 17-21)

3084402

Unavailable

2

NUT, FLANGE(10)

3083649

$3.99

3

BRUSH,COMPL.2-POLE *

3084406

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

COVER,REAR,STARTER(300-400)

3085032

$82.39

6

O-RING

3084408

Unavailable

7

Bolt, Through

3084407

Unavailable

8

Bracket

3083650

Unavailable

9

BOLT,(10)

3081665

$3.19

10

Washer Set

3083754

$2.39

11

ARMATURE ASM. *

3084404

$207.99

12

O RING

3083934

Unavailable

13

BALL BEARING

3083777

$31.99

14

O RING

3083741

$9.37

15

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

16

BOLT&WASHER ASM.

3082038

$3.99

17

CLIP

3084409

$7.19

18

SPRING, RETURN

3084410

$2.47

19

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 15)

3083647

Unavailable

20

SPRING, WEIGHT

3084411

$15.67

21

CLIP

3084412

$9.59
