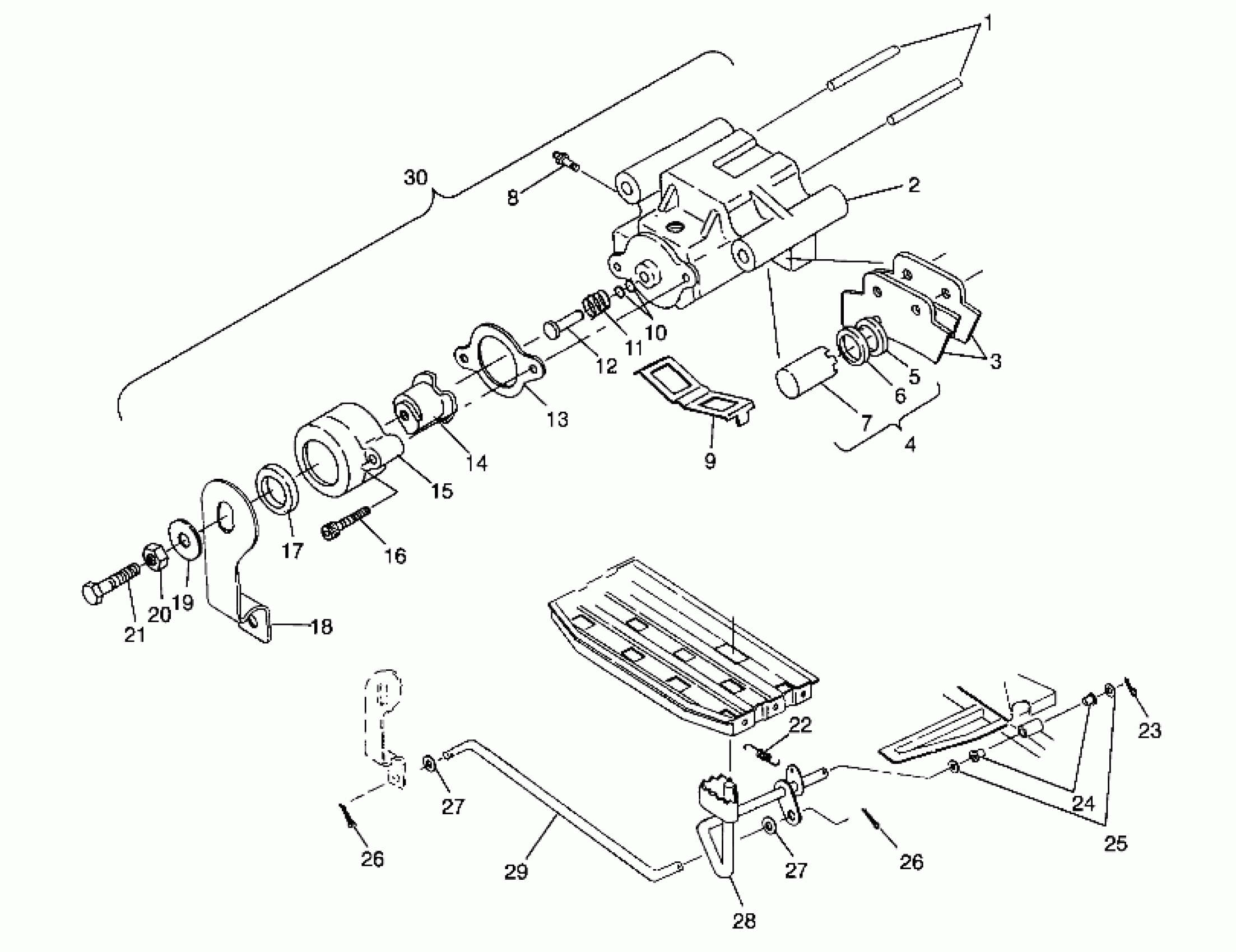

Polaris TRAIL BOSS 250 - W958527 REAR BRAKE ASSEMBLY Trail Boss W958527 (4930323032B014) Diagram

#

Description
Price

1

PIN, DOWEL(10)

7661820

$13.99

2

CALIPER,R.BRAKE,MACH

5131272

Unavailable

3

KIT,BRAKEPAD,REAR

2200464

$66.65

4

KIT-PISTON & SEAL (Incl. 5 - 7)

2200463

$97.76

5

SQUARE RING-MOLDED (.134) (.134 Sq.)

5410766

$12.13

6

RING, SQUARE,(1''DIAM.) Substituted by 2200463 (.099 Sq.)

5410767

$97.76

7

PISTON,BRAKE Substituted by 2200463

5020667

$97.76

8

SCREW,BLEEDER

7080352

$3.17

9

SPRING,ANTI-RATTLE

5222232

Unavailable

10

O RING-.364X.504X.07

5410542

$4.84

11

SPRING,BRAKE,COMP.

7041219

Unavailable

12

PIN,BRAKE CALIPER

5020666

Unavailable

13

GASKET, BRAKE

5830009

Unavailable

14

RAMP,MOVEABLE BRAKE Substituted by 2200905

5630458

Unavailable

15

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

16

SCREW(10)

7512173

Unavailable

17

SEAL, BRAKE

3610026

Unavailable

18

ARM,BRAKE CALIPER

5240901

Unavailable

19

WASHER, SPRING(10)

7555828

Unavailable

20

NUT(10)

7542129

$4.76

21

BOLT

7515145

Unavailable

22

SPRING-EXHAUST(10)

7042029

$5.65

23

COTTER PIN(10)

7661401

$0.79

24

BUSHING-PEDAL PIVOT

5431107

$8.73

25

WASHER(10)

7555919

$4.99

26

PIN COTTER(10)

7661203

$1.19

26

PIN COTTER(10)

7661203

$1.19

27

WASHER(10)

7555806

$0.79

27

WASHER(10)

7555806

$0.79

28

FOOTBRAKE,BLK.

1910144-067

Unavailable

29

ROD, BRAKE

5224531

$51.59

30

CALIPER ASM,R.BRAKE Substituted by 1910224 (Incl. 1-21)

1910180

Unavailable
