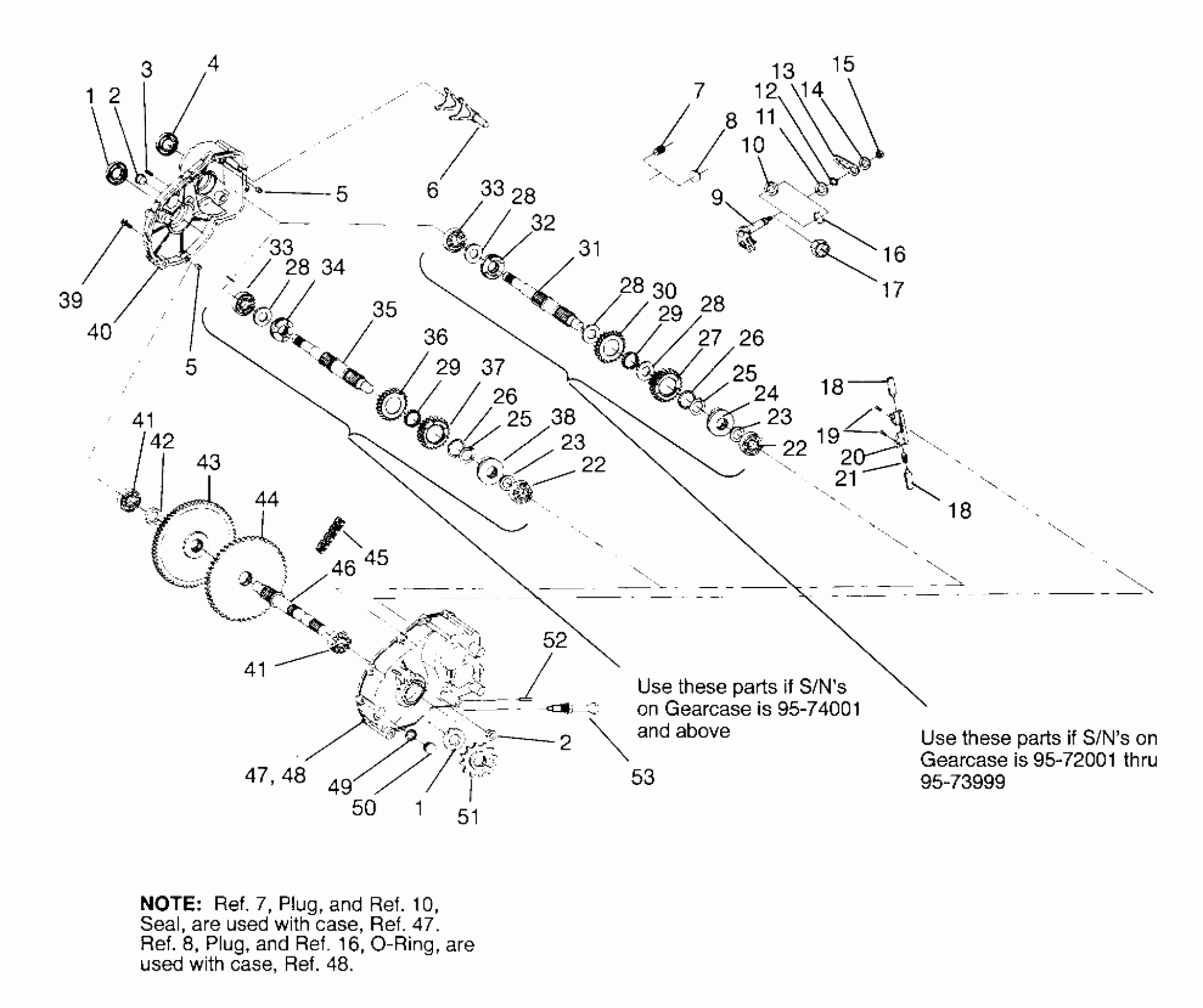

Polaris TRAIL BOSS 250 - W958527 GEARCASE ASSEMBLY Trail Boss W958527 (4930323032C004) Diagram

#

Description
Price

-

GEARCASE ASM,PRD. Substituted by 1341124

1341151

Unavailable

1

SEAL Substituted by 3233248

3233096

Unavailable

1

SEAL Substituted by 3233248

3233096

Unavailable

2

BUSHING,PIVOT

3233024

Unavailable

2

BUSHING,PIVOT

3233024

Unavailable

3

STUD

3233025

Unavailable

4

SEAL Substituted by 3233248

3233097

$30.88

5

PIPE, KNOCK

3233021

Unavailable

5

PIPE, KNOCK

3233021

Unavailable

6

RAIL,SHIFT,ASM.

3233098

Unavailable

7

PLUG

3233116

Unavailable

8

PLUG

3233178

Unavailable

9

SHAFT,SHIFT,ASM,

3233117

Unavailable

10

SEAL

3233118

Unavailable

11

WASHER

3233119

$7.79

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

13

BELLCRANK, HI/REV

3233155

Unavailable

14

Washer

3233054

$6.46

15

Nut

3233055

Unavailable

16

O-RING

3233179

Unavailable

17

SWITCH,TRANS.INDIC.

4110172

Unavailable

18

PIN

3233031

$32.11

18

PIN

3233031

$32.11

19

SCREW Substituted by 3233747

3233033

Unavailable

20

BRACKET

3233030

$21.43

21

Spring

3233032

$12.94

22

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

22

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

23

WASHER

3233007

Unavailable

23

WASHER

3233007

Unavailable

24

DOG,FWD.ENGAGEMENT

3233107

Unavailable

25

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

25

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

26

Washer

3233105

$7.19

26

Washer

3233105

$7.19

27

SPRKT,FWD,19T

3233104

Unavailable

28

WASHER

3233099

Unavailable

28

WASHER

3233099

Unavailable

28

WASHER

3233099

Unavailable

28

WASHER

3233099

Unavailable

29

BEARING, NEEDLE

3233103

$31.99

29

BEARING, NEEDLE

3233103

$31.99

30

GEAR,REVERSE,19T

3233102

Unavailable

31

SHAFT, INPUT

3233101

Unavailable

32

DOG,REV.ENGAGEMENT

3233100

Unavailable

33

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

33

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

34

DOG,REV.ENGAGE.

3233180

Unavailable

35

SHAFT, INPUT

3233181

$214.29

36

GEAR,REVERSE

3233182

Unavailable

37

SPKT,19T,FWD.

3233183

Unavailable

38

DOG,FWD.ENGAGE.

3233184

Unavailable

39

Screw

3233026

$6.46

40

GEARCASE, LH.

3233095

$298.99

41

BEARING

3233020

$47.99

41

BEARING

3233020

$47.99

42

VALVE,SHOCK

1500032

$4.95

43

GEAR, 65T

3233109

Unavailable

44

SPROCKET, 51T

3233121

Unavailable

45

CHAIN,SILENT,60P

3233111

$79.19

46

SHAFT, OUTPUT

3233112

Unavailable

47

GEARCASE, RH.

3233113

Unavailable

48

GEARCASE,RH.

3233185

Unavailable

49

Washer

3233035

Unavailable

50

PLUG Substituted by 3233448

3233114

$23.81

51

SPKT, 12T

3221044

$43.99

52

Vent

3233037

Unavailable

53

DIPSTICK Substituted by 3233478 NOTE: Ref. 7, Plug, and Ref. 10, Seal, are used with case, Ref. 47. Ref. 8, Plug, and Ref. 16, O-Ring, are used with case, Ref. 48.
