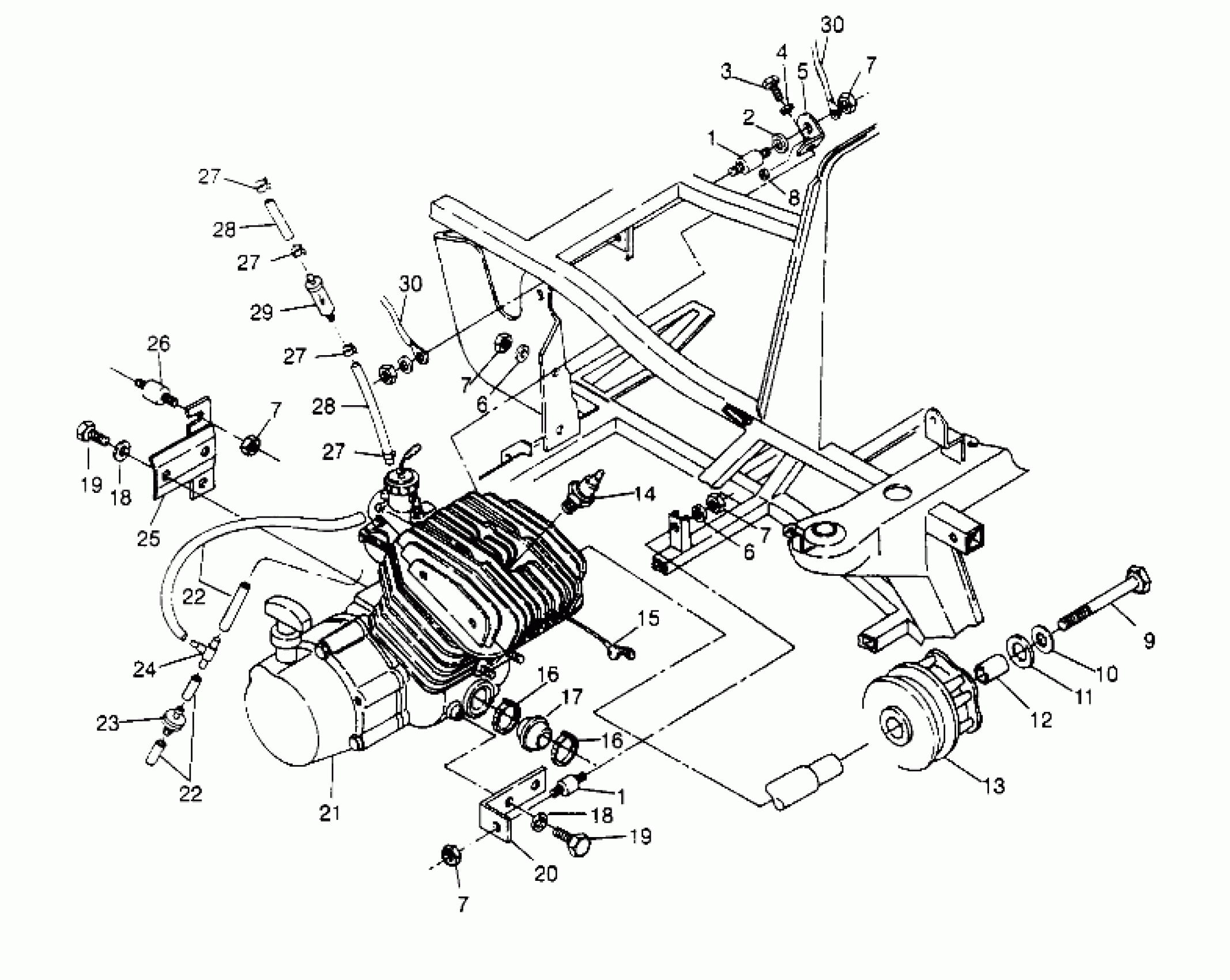

Polaris TRAIL BOSS 250 - W958527 ENGINE MOUNTING Trail Boss W958527 (4930323032A009) Diagram

#

Description
Price

1

MOUNT,MOTOR

3110026

Unavailable

1

MOUNT,MOTOR

3110026

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$27.99

3

BOLT(10)

7515321

$1.49

4

LOCK WASHER(10)

7552901

$1.49

5

MOUNT, ENG.,TOP

5220471-067

Unavailable

6

WASHER(10)

7555801

$3.99

6

WASHER(10)

7555801

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

7

NUT LOCK(10)

7542403

$3.99

8

NUT(10)

7541925

$1.49

9

BOLT(10)

7512566

$30.79

10

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

11

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

12

BUSHING-.437 X.770 X.50

5430261

$7.19

13

Asm., Drive Clutch (See Pg. )

-------

Unavailable

14

SPARKPLUG (10)

3070156

$3.99

15

INSULATOR-CABLE

5410346

$6.39

16

CLAMP, NARROW BAND(10)

7080511

$4.79

16

CLAMP, NARROW BAND(10)

7080511

$4.79

17

BOOT,CLUTCH INTAKE

5410421

$11.19

18

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

18

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

19

SCREW(10)

7512490

$3.99

19

SCREW(10)

7512490

$3.99

20

PLATE,FR.MTR.MT.

5220881-067

Unavailable

21

ENG.(S.B.)EC25PF-SB [No Longer Available]

3084717

Unavailable

22

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

22

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

23

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

24

Fitting, Tee

7052005

Unavailable

25

MT,R.A/C(ATV),BLK.

5241056-067

Unavailable

26

MOUNT, MOTOR

3110028

Unavailable

27

CLAMP-HOSE,(10)

7080236

$1.59

27

CLAMP-HOSE,(10)

7080236

$1.59

27

CLAMP-HOSE,(10)

7080236

$1.59

27

CLAMP-HOSE,(10)

7080236

$1.59

28

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

28

FUEL LINE,3/16 ID(600 CM.)

8450042-600

Unavailable

29

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

30

CABLE,GROUND/ENG.

4010067

Unavailable

30

CABLE,GROUND/ENG.

4010067

Unavailable
