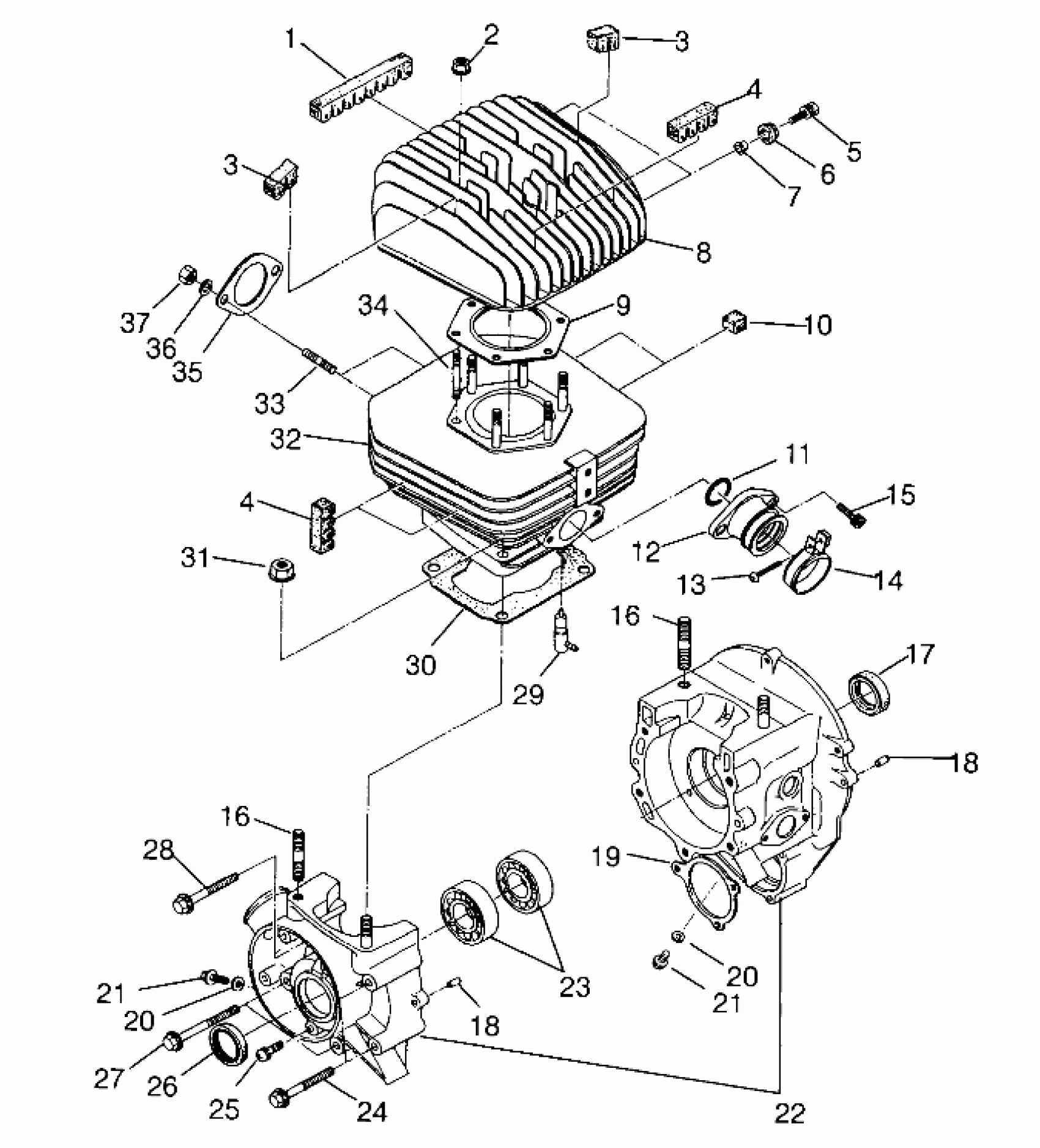

Polaris TRAIL BOSS 250 - W958527 CRANKCASE and CYLINDER Trail Boss W958527 (4930323032C008) Diagram

#

Description
Price

1

FIN DAMPER #3

3083931

Unavailable

2

NUT-FLANGE(10)

3082910

$2.39

3

FIN DAMPER #4

3083932

$18.23

3

FIN DAMPER #4

3083932

$18.23

4

FIN DAMPER #1

3083929

Unavailable

4

FIN DAMPER #1

3083929

Unavailable

5

BOLT&WASHER

3083730

$4.79

6

MOUNTING,RUBBER

3083731

$4.95

7

COLLAR

3083732

Unavailable

8

HEAD, CYLINDER Substituted by 3086841

3083620

Unavailable

9

GASKET,HEAD,(CP)

3084015

Unavailable

10

FIN DAMPER #2

3083930

Unavailable

11

O-Ring

3084292

Unavailable

12

ADAPTER, CARB. * (Incl. 11)

3085013

$103.99

13

SCREW,(10) (Pan Head)

3081497

$2.39

14

BAND-CARB MTG. (Incl. 13)

3082257

Unavailable

15

Bolt, Allen

3081330

$3.99

16

STUD Substituted by 3085713

3080746

Unavailable

16

STUD Substituted by 3085713

3080746

Unavailable

17

SEAL,OIL Substituted by 3082162

3080006

$38.60

18

PIN, DOWEL Substituted by 3086838

3080103

$7.14

18

PIN, DOWEL Substituted by 3086838

3080103

$7.14

19

GASKET, STARTER Substituted by 3085283

3084018

Unavailable

20

GASKET, ALUM,(10) Substituted by 7555998 (Aluminum)

3082758

$1.19

20

GASKET, ALUM,(10) Substituted by 7555998 (Aluminum)

3082758

$1.19

21

PLUG, DRAIN

3083767

Unavailable

21

PLUG, DRAIN

3083767

Unavailable

22

CRANKCASE ASM. (Incl. 16, 17, 18, 23, 24, 26-28)

3084579

$504.99

23

Bearing, Ball

3084580

$31.99

24

BOLT W/WASHER

3080739

$6.39

25

SCREW&WASHER ASM.

3081635

Unavailable

26

SEAL, OIL, PTO (PTO)

3084581

$28.32

27

BOLT&WASHER ASSY.

3083615

Unavailable

28

BOLT AND WASHER ASSY.

3082096

$1.49

29

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

30

GASKET, CYLINDER Substituted by 3083733

3084016

$40.46

31

NUT-FLANGE(10)

3082911

$1.99

32

CYLINDER Substituted by 3085541 (Incl. 33, 34)

3083769

Unavailable

33

STUD (10)

3080016

$5.75

34

Stud

3080283

$12.94

35

GASKET,EXHAUST Substituted by 3084439

3084017

Unavailable

36

WASHER LOCK ,(10)

3080530

$3.19

37

NUT(10)

3080285

Unavailable
