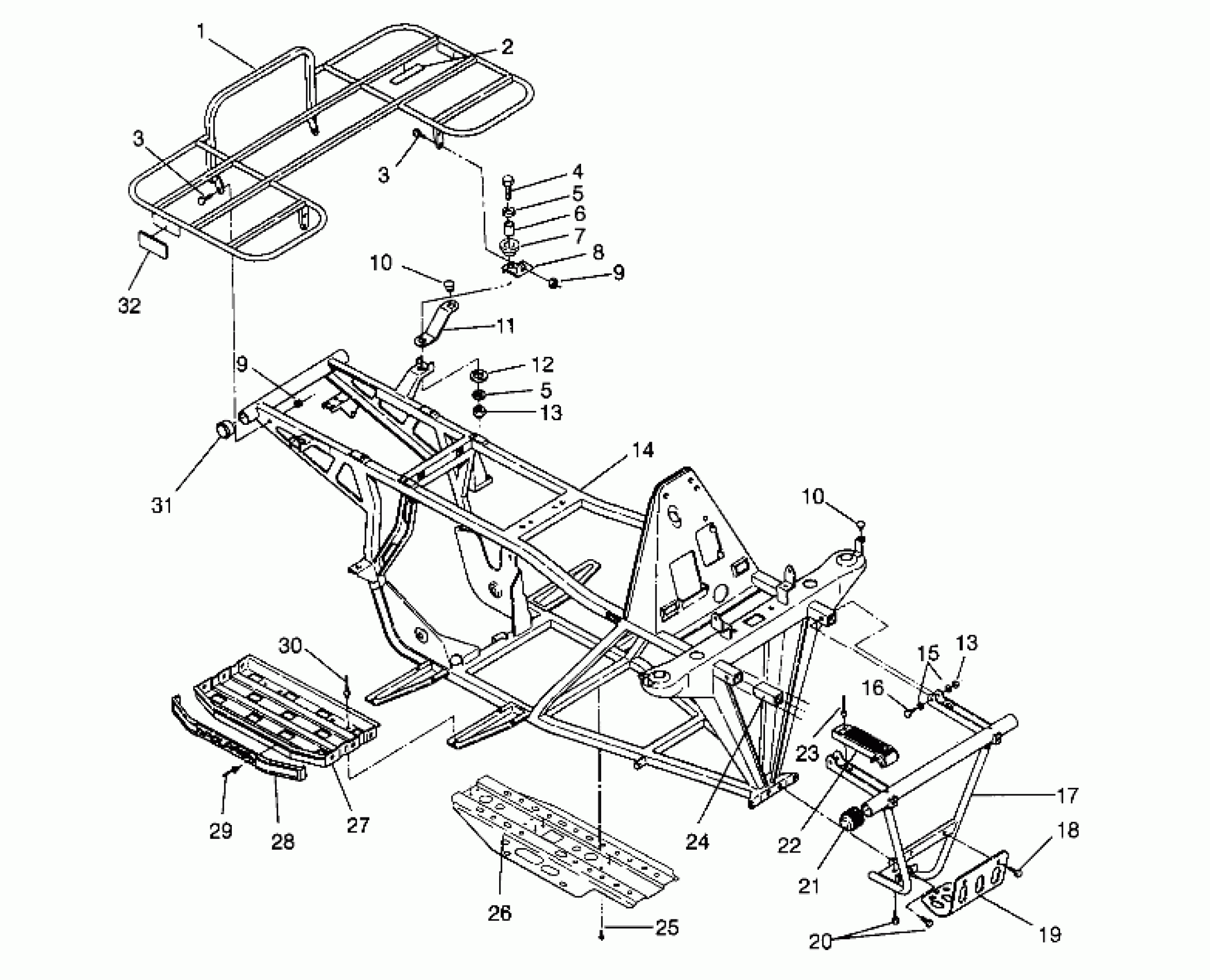

Polaris TRAIL BOSS 250 - W958527 BUMPER and RACK MOUNTING Trail Boss W958527 (4930323032A007) Diagram

#

Description
Price

1

RACK,REAR,BLK.

2670136-067

Unavailable

2

PAD,RACK MOUNT

5810455

$3.19

3

SCREW(10)

7515355

Unavailable

3

SCREW(10)

7515355

Unavailable

4

SCREW-FLANGED(10)

7515304

$5.59

5

WASHER(10)

7555716

$1.59

5

WASHER(10)

7555716

$1.59

6

BUSHING-RES. MT.

5010192

$6.39

7

DAMPENER

5410241

Unavailable

8

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

8

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

9

NUT, NYLOK(10)

7542327

$4.79

9

NUT, NYLOK(10)

7542327

$4.79

10

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

10

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

11

SUPPORT,R.FENDER

5220902-067

$48.40

12

WASHER,RUBBER

5410436

$1.59

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

NUT-5/16-18 NYLOK-Y

7542324

$1.49

14

FRAME,MAIN,BLK.

1040332-067

$695.22

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

BOLT(10)

7512329

$3.99

17

BUMPER,FRT,(BLACK)

2670106-067

Unavailable

18

SCREW(10)

7512208

$3.99

19

SKID-PLATE,FR.BUMPER

5220981

Unavailable

20

SCREW(10)

7512399

$5.59

21

CAP,BUMPER,FR,AQUA.

5431013-179

$12.39

22

COVER,BRKT,BUMPER MT.

5431023

$10.71

23

RIVET(50)

7621229

Unavailable

24

PLUG, FRAME

5810467

Unavailable

25

BOLT(10)

7512232

$1.49

26

GUARD,ROCK,BLK.

5240560-067

$87.99

27

FOOTPAD,LH,SILVER

1040274-117

$82.39

27

FOOTPAD,RH,SILVER

1040351-117

Unavailable

28

Trim, Footrest

5431484

Unavailable

29

RIVET,(50)

7661825

$1.49

30

RIVET-3/16-.090-.290

7661637

$1.49

31

PLUG,ENDCAP(10)

5432047

$4.95

32

REFLECTOR ASM,RED

2670133

$5.75
