STEERING ASSEMBLY Trail Boss / W928527 (4922892289011A)

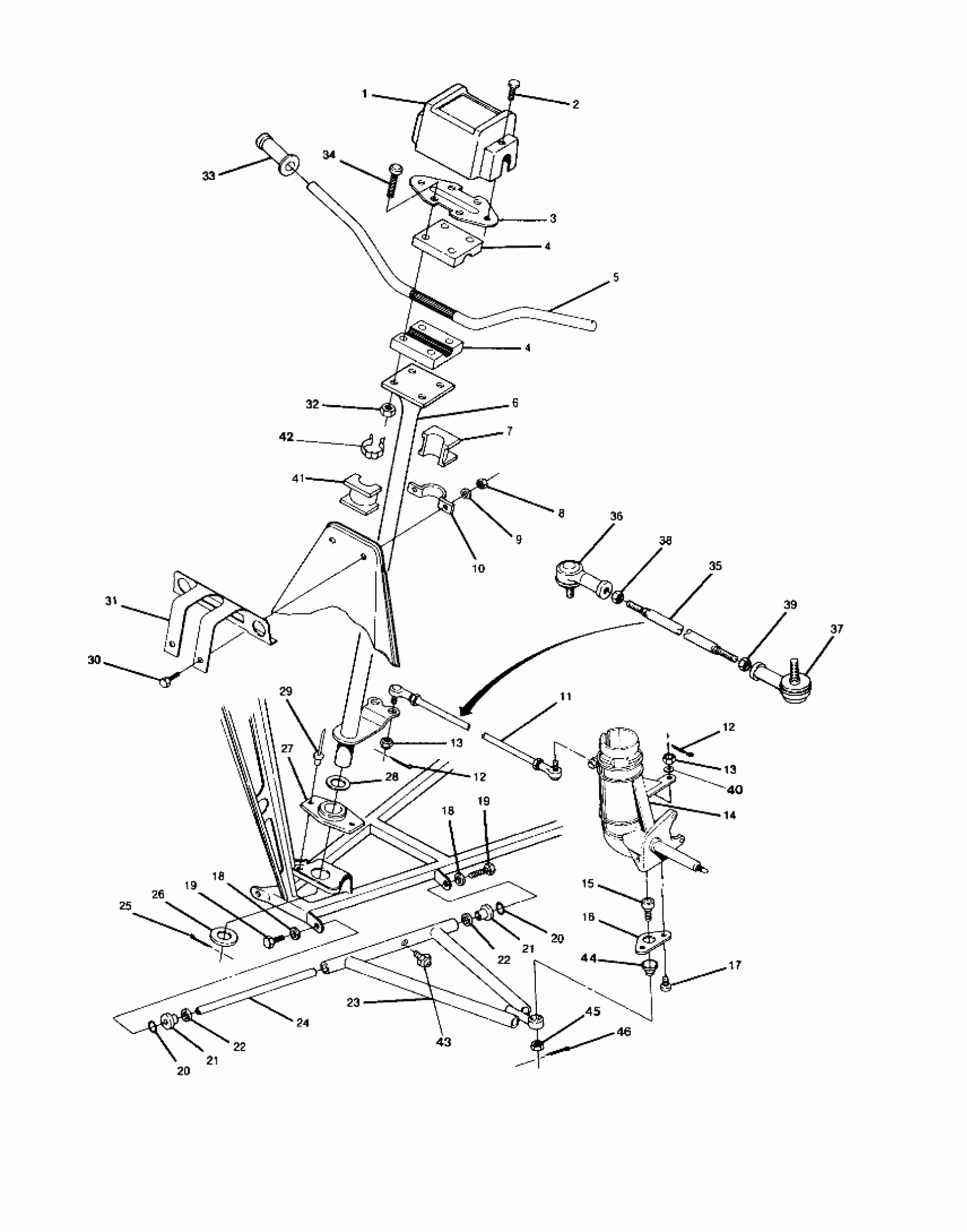

Polaris TRAIL BOSS 250 - W928527 STEERING ASSEMBLY Trail Boss / W928527 (4922892289011A) Diagram
#
1
PAD, HANDLEBAR
5810379
$40.46
2
BOLT(10) Substituted by 7515197
7512286
Unavailable
3
MOUNT,HDLBR. PAD Substituted by 5245051
5220946
$5.71
4
BLOCK,HANDLEBAR Substituted by 5630187-067
5630187
$3.65
4
BLOCK,HANDLEBAR Substituted by 5630187-067
5630187
$3.65
5
TUBE,HDLBR,BLACK Substituted by 5242988-067
5224316-067
Unavailable
6
POST, STEERING
1843028-067
Unavailable
7
BUSHING,STRG.,UPPER Substituted by 5431572
5430966
Unavailable
8
NUT-5/16-18 NYLOK-Y
7542324
$1.49
9
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
10
BRKT,UP.STRG.BUSH,BLK. Substituted by 5222999-067
5220887-067
$32.37
11
TIE ROD ASM. Substituted by 1822307
1822070
Unavailable
12
PIN COTTER(10)
7661203
$1.49
12
PIN COTTER(10)
7661203
$1.49
13
NUT, CASTLE(10)
7546904
$4.79
13
NUT, CASTLE(10)
7546904
$4.79
14
SUPPORT,LH STRUT
5130803
Unavailable
14
SUPPORT,RH STRUT
5130804
Unavailable
15
BALL JOINT Substituted by 7080673
7080364
Unavailable
16
BRACKET-BALL JOINT
5211121
$31.99
17
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$1.49
18
WASHER(10)
7552603
$1.49
18
WASHER(10)
7552603
$1.49
19
BOLT(10) Substituted by 7512492
7515458
Unavailable
19
BOLT(10) Substituted by 7512492
7515458
Unavailable
20
O RING
5410458
Unavailable
20
O RING
5410458
Unavailable
21
BUSHING, A-ARM
3563604
Unavailable
21
BUSHING, A-ARM
3563604
Unavailable
22
WASHER(10)
7555774
Unavailable
22
WASHER(10)
7555774
Unavailable
23
A-FRAME, LH Substituted by 2200477
1580028-067
Unavailable
23
A-FRAME, RH Substituted by 2200478
1580029-067
Unavailable
24
SHAFT,'A' ARM
5020477
Unavailable
25
PIN, COTTER(10)
7661404
$4.79
26
BUSHING(10)
7555781
Unavailable
27
BUSHING,STRG.,LOWER Substituted by 5431570
5430895
Unavailable
28
BUSHING(10)
7556401
$4.99
29
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
30
SCREW(10)
7512307
$3.99
31
BRKT, IGN. PANEL
5220965-067
Unavailable
32
NUT-LOCK(10)
7542122
$1.49
33
GRIP, HANDLEBAR
5431030
$24.27
34
BOLT,(10)
7512265
$3.99
35
TIE ROD
5020478
$48.56
36
ROD END, RH Substituted by 7060172
7060138
$56.65
37
ROD END
7060147
$56.65
38
NUT, RH, 10 MM.(10)
7546901
$2.39
39
NUT, LH, 10 MM.(10)
7546902
Unavailable
40
WASHER(10)
7555806
$1.49
41
BUSHING,UPPER STRG. Substituted by 5431573
5431138
$8.48
42
CLIP(10)
7080278
$2.63
43
ZERK,FITTING,THREADED(10)
7080433
$1.49
44
Boot, Rubber
5410548
Unavailable
45
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
45
KIT, BALL JOINT (Includes 44, 45 & 46)
2200290
$34.92
