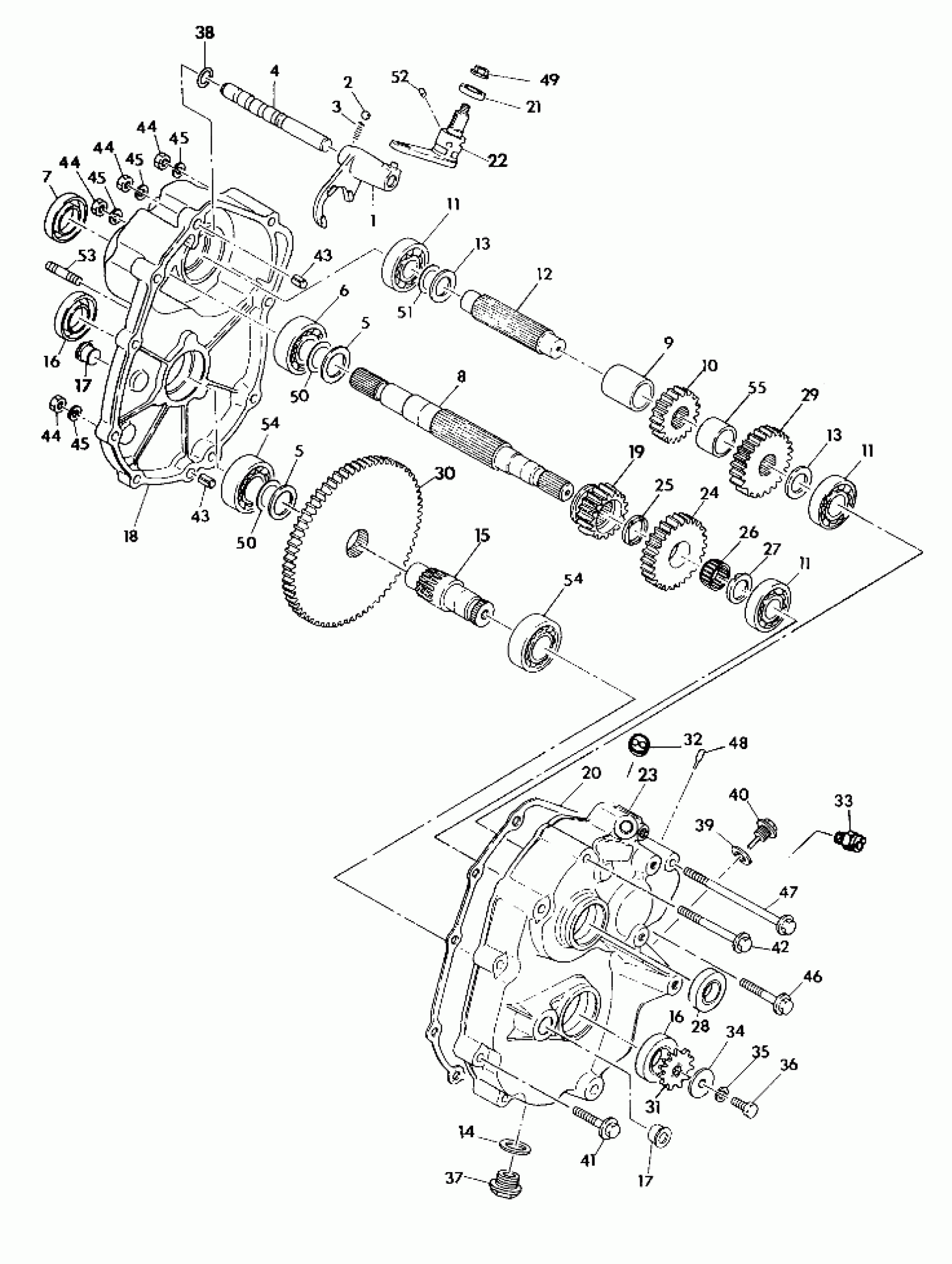

Polaris TRAIL BOSS 250 - W928527 GEARCASE ASSEMBLY Trail Boss / W928527 (4922892289025A) Diagram

#

Description
Price

-

TRANSMISSION(T.B.) (Incl. 1-55)

1341064

Unavailable

1

SHIFTER

3231501

$78.39

2

BALL, STEEL

3231502

Unavailable

3

SPRING

3231550

$1.49

4

SHAFT, SHIFT

3231589

$16.63

5

WASHER

3231505

$3.40

5

WASHER

3231505

$3.40

6

BEARING

3231506

Unavailable

7

SEAL, OIL

3231507

Unavailable

8

SHAFT, INPUT

3231580

Unavailable

9

COLLAR

3231590

Unavailable

10

GEAR (18)

3231510

$29.59

11

BEARING

3231511

Unavailable

11

BEARING

3231511

Unavailable

11

BEARING

3231511

Unavailable

12

SHAFT

3231512

$34.70

13

Washer

3231513

$4.39

13

Washer

3231513

$4.39

14

GASKET

3231592

Unavailable

15

SHAFT, OUTPUT

3231586

Unavailable

16

SEAL, OIL

3231516

Unavailable

16

SEAL, OIL

3231516

Unavailable

17

SUPPORT

3231517

Unavailable

17

SUPPORT

3231517

Unavailable

18

CASE, LH

3231594

Unavailable

19

GEAR (18)

3231585

Unavailable

21

SEAL, OIL

3231521

Unavailable

22

SHAFT, SELECT

3231584

Unavailable

23

CASE, RH

3231583

Unavailable

24

GEAR

3231524

$57.14

25

WASHER

3231525

Unavailable

26

BEARING,NEEDLE

3231526

Unavailable

27

WASHER

3231527

Unavailable

28

SEAL, OIL

3231528

Unavailable

29

GEAR

3231529

$55.54

30

GEAR (66)

3231582

Unavailable

31

SPKT, 11T (Optional)

3221043

$39.99

31

SPKT,13T,SPLINED (Standard)

3221041

$43.99

32

SW,REV./NEUT.INDIC.

4110062

$32.37

33

SW,REV./NEUT.INDIC.

4110062

$32.37

34

WASHER(10)

3231599

Unavailable

35

WASHER, SPRING(10)

3231545

Unavailable

36

BOLT

3231536

Unavailable

37

PLUG,DRAIN,20MM,MAGNET

3231569

Unavailable

38

C-CLIP

3231591

Unavailable

39

GASKET

3231539

Unavailable

40

PLUG, OIL

3231561

Unavailable

41

BOLT

3231602

Unavailable

42

BOLT

3231603

Unavailable

43

PIPE, KNOCK

3231543

$1.41

43

PIPE, KNOCK

3231543

$1.41

44

NUT(10)

3231604

Unavailable

44

NUT(10)

3231604

Unavailable

44

NUT(10)

3231604

Unavailable

44

NUT(10)

3231604

Unavailable

46

BOLT

3231605

Unavailable

47

BOLT

3231606

Unavailable

48

PIPE,BREATHER

3231548

Unavailable

49

NUT, LOCK

3231555

Unavailable

50

SHIM 25, 0.3

3231562

Unavailable

50

SHIM 25, 0.1

3231563

Unavailable

50

SHIM 25, 0.3

3231562

Unavailable

50

SHIM 25, 0.1

3231563

Unavailable

50

SHIM 25, 0.3

3231562

Unavailable

50

SHIM 25, 0.1

3231563

Unavailable

51

SHIM 20, 0.3

3231564

Unavailable

51

SHIM 20, 0.1

3231565

Unavailable

52

PIN

3231607

Unavailable

53

STUD

3231608

Unavailable

54

BEARING

3231609

Unavailable

54

BEARING

3231609

Unavailable

55

COLLAR

3231587

Unavailable
