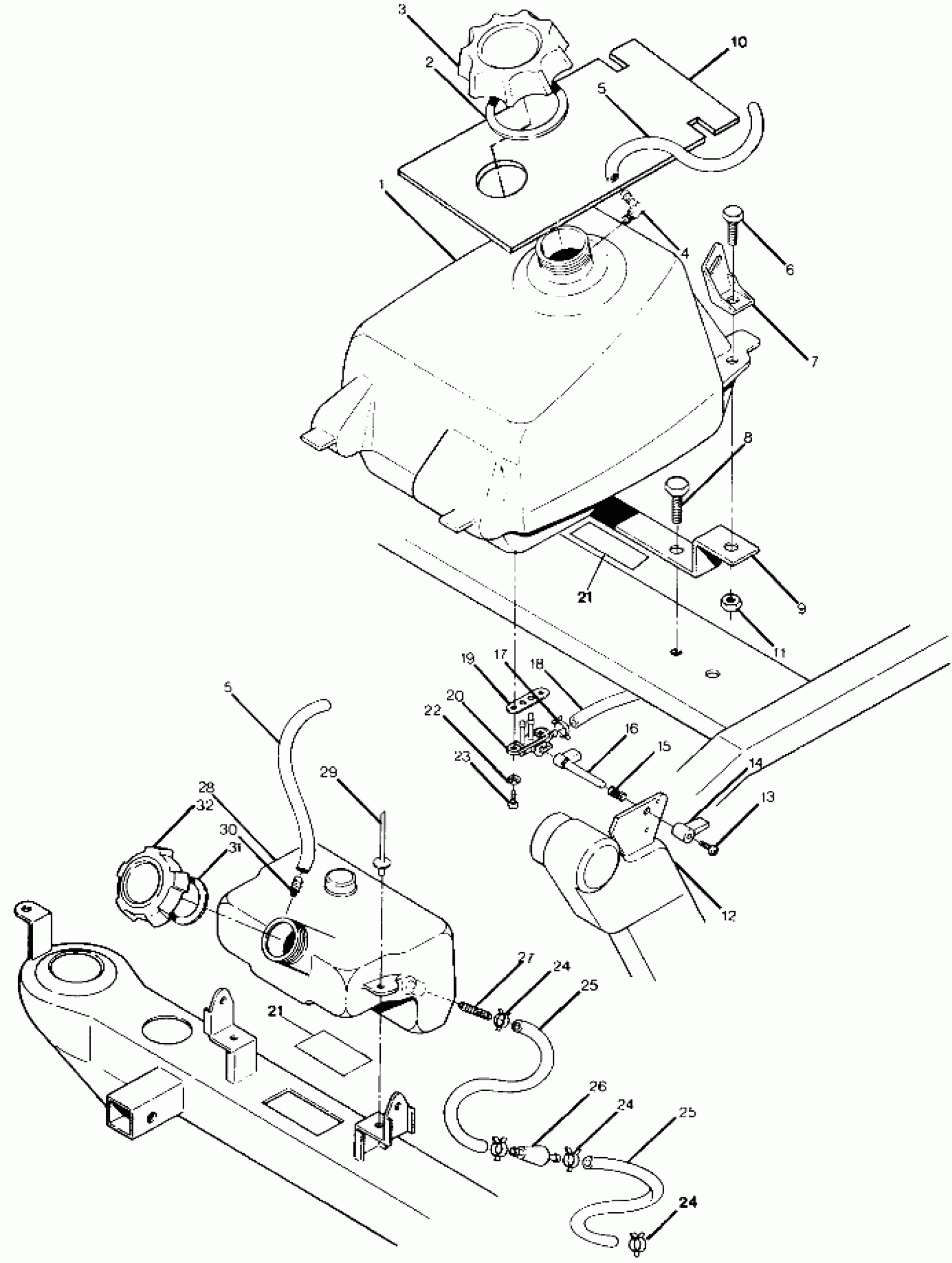

Polaris TRAIL BOSS 250 - W928527 FUEL TANK ASSEMBLY Trail Boss / W928527 (4922892289009A) Diagram

#

Description
Price

1

TANK,FUEL Substituted by 2511323

5430968

Unavailable

2

GASKET-GAS CAP

5810144

$5.59

3

CAP, GAS, (BLACK)

5430725

$24.27

4

Vent, Tank

5431053

$19.99

5

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

5

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

6

SCREW(10)

7512310

$2.39

7

BRKT,LH.R.FUELCOVER,BLK.

5222154-067

Unavailable

7

BRKT,RH.R.FUELCOVER,BLK.

5222155-067

Unavailable

8

SCREW(10)

7512208

$3.99

9

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

10

PAD, SILENCER

5810423

Unavailable

11

NUT-5/16-18 NYLOK-Y

7542324

$1.49

12

DUCT,INLET DOWN TUBE

5431006

$82.39

13

SCREW(10)

7511840

Unavailable

14

Lever, Fuel

5431021

$4.79

15

SPRING,LEVER,COMPRESS.

7041209

$7.19

16

EXT.,FUEL LEVER

5431391

$7.19

17

CLAMP-HOSE,(10)

7080236

$1.59

18

LINE,FUEL,(6 FT.)

5521204

Unavailable

19

GASKET, FUEL VALVE

5810308

Unavailable

20

VALVE, FUEL

7051002

Unavailable

21

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

21

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

22

WASHER(10)

7552605

$5.27

23

BOLT, BLACK(10)

7512282

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

25

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

26

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

27

FITTING - OUTLET(10)

7052023

$24.99

28

TANK,OIL

5430969

Unavailable

29

RIVET(50)

7621457

$1.49

30

FITTING,(10)

7052077

$6.39

31

GASKET-OIL CAP

5810141

$2.39

32

CAP,OIL TANK

5430779

$14.56
