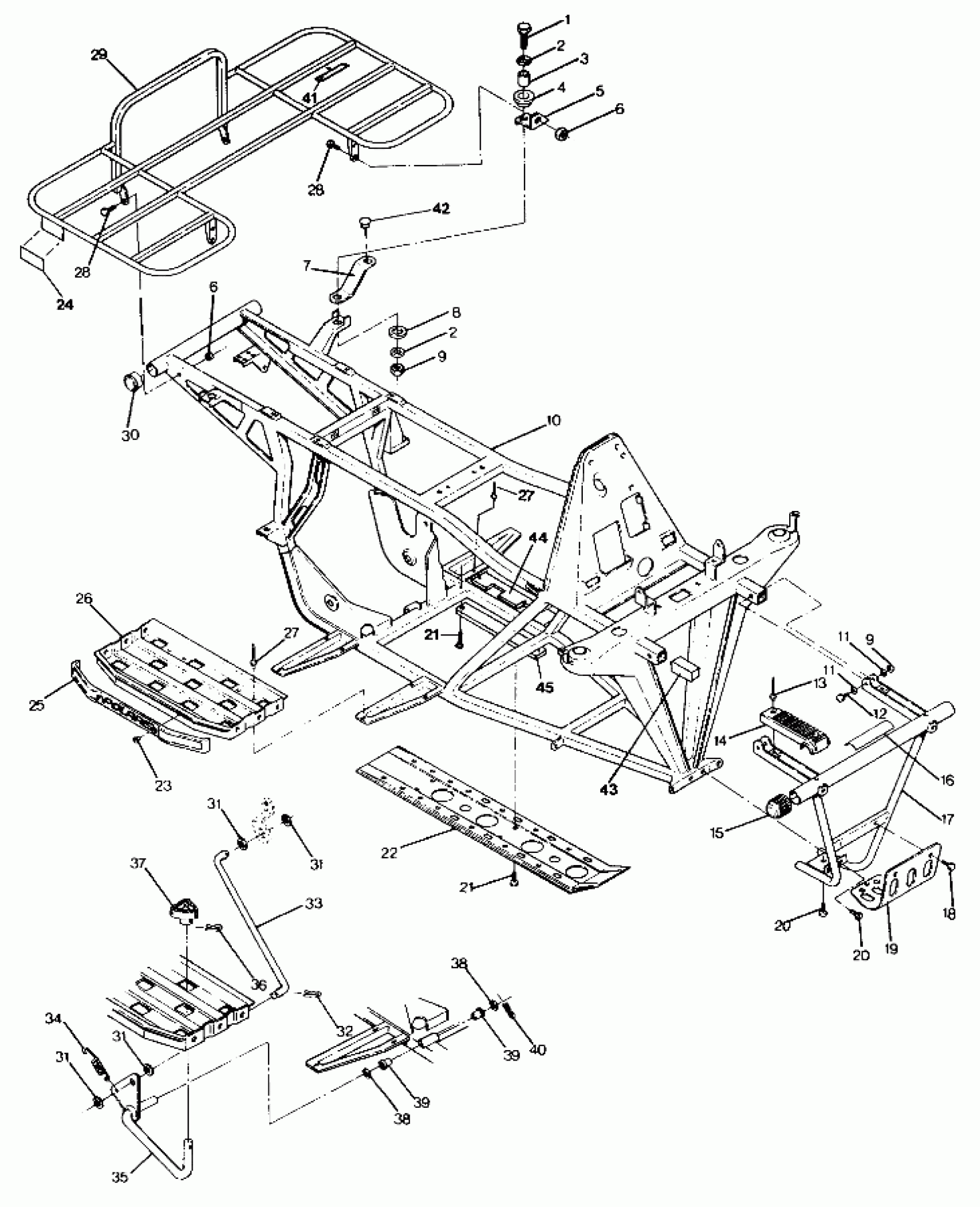

Polaris TRAIL BOSS 250 - W928527 FRAME ASSEMBLY w/ RACKS Trail Boss / W928527 (4922892289003A) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

6

NUT, NYLOK(10)

7542327

$4.79

6

NUT, NYLOK(10)

7542327

$4.79

7

SUPPORT,R.FENDER

5220902-067

$48.40

8

WASHER,RUBBER

5410436

$1.59

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

FRAME, (TRAIL BOSS) [No Longer Available]

1040257-067

Unavailable

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

BOLT(10)

7512329

$3.99

13

RIVET(50)

7621229

Unavailable

14

COVER,BRKT,BUMPER MT.

5431023

$10.71

15

CAP,BUMPER,FR,BON.BLUE

5431013-157

$12.39

16

DECAL, F.SUSP.

7073455

Unavailable

17

BUMPER,FRT,(BLACK)

2670106-067

Unavailable

18

SCREW(10)

7512208

$3.99

19

SKID-PLATE,FR.BUMPER

5220981

Unavailable

20

SCREW(10)

7512399

$5.59

20

SCREW(10)

7512399

$5.59

21

BOLT(10)

7512232

$1.49

21

BOLT(10)

7512232

$1.49

22

GUARD, ROCK, BLK.

5220922-067

$61.99

23

RIVET,(50)

7661825

$1.49

24

REFLECTOR ASM,RED

2670133

$5.75

25

Trim, Footrest

5431484

Unavailable

26

FOOTPAD,LH,(ATV) Substituted by 1040274-117

1040274

$81.75

27

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

27

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

28

SCREW(10)

7515355

Unavailable

28

SCREW(10)

7515355

Unavailable

29

RACK,REAR,BLK.

2670136-067

Unavailable

30

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

31

WASHER(10)

7555827

$3.99

31

WASHER(10)

7555827

$3.99

31

WASHER(10)

7555827

$3.99

31

WASHER(10)

7555827

$3.99

32

PIN, COTTER(10)

7661103

$4.99

33

ROD,BRAKE LINKAGE Substituted by 5224446

5224394

Unavailable

34

SPRING-EXHAUST(10)

7042029

$4.84

35

PEDAL, BRAKE

1910045-067

$11.33

36

PIN, SPIRAL(10)

7661416

Unavailable

37

PEDAL,FOOT

5130715-067

Unavailable

38

WASHER THRUST(10)

7558702

$1.59

38

WASHER THRUST(10)

7558702

$1.59

39

BUSHING-PEDAL PIVOT

5431107

$8.79

39

BUSHING-PEDAL PIVOT

5431107

$8.79

40

COTTER PIN(10)

7661401

$1.49

41

PAD,RACK MOUNT

5810455

$3.19

42

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

43

PLUG, FRAME

5810467

Unavailable

44

GUARD,CLUTCH,OUTER

5222860-067

$7.06

45

GUARD,CLUTCH,INNER

5211359-067

Unavailable
