CRANKCASE and CYLINDER Trail Boss / W928527 (4922892289033A)

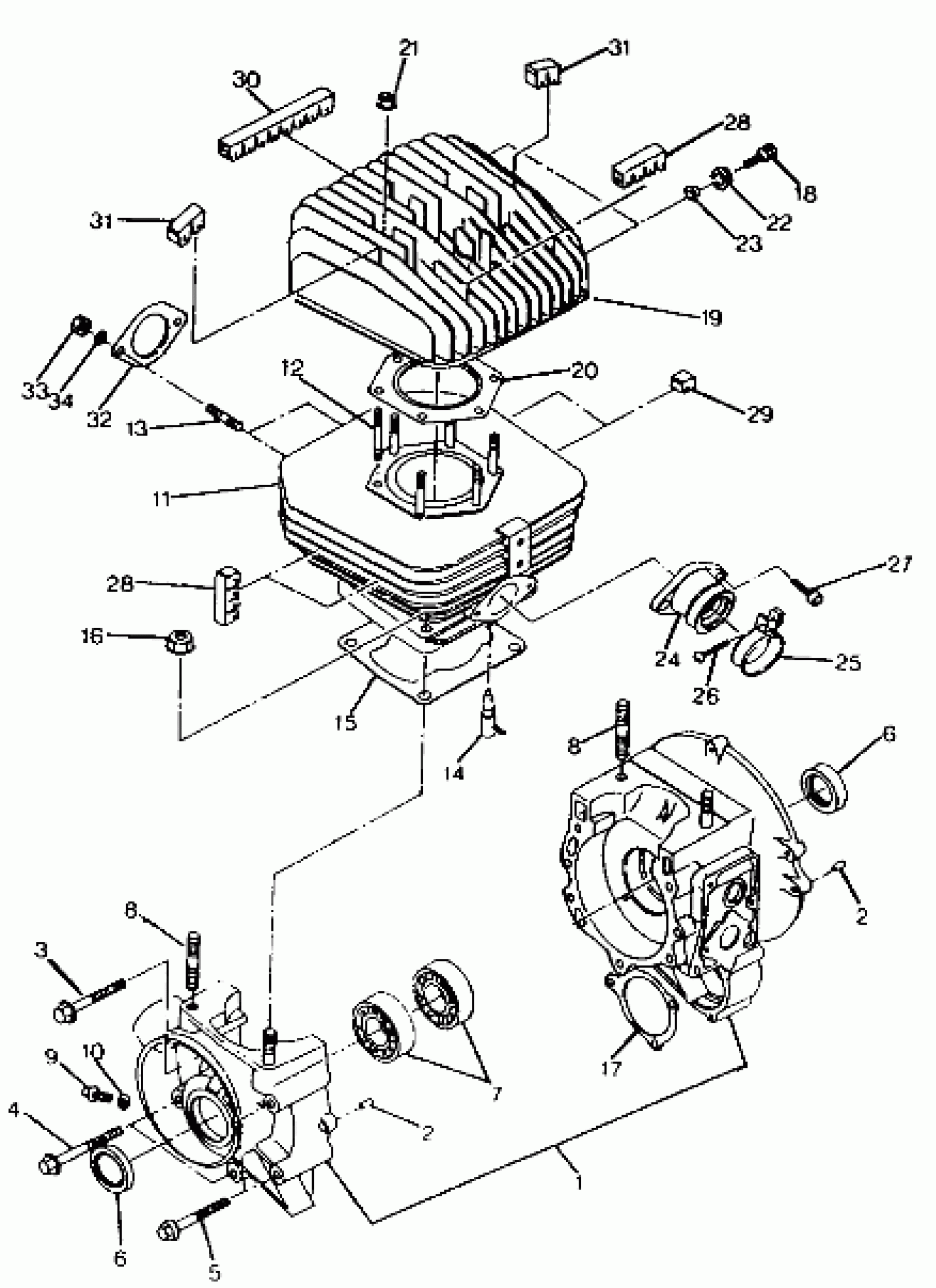

Polaris TRAIL BOSS 250 - W928527 CRANKCASE and CYLINDER Trail Boss / W928527 (4922892289033A) Diagram
#
Description
Price
1
CRANKCASE ASM. Substituted by 3084579 (Incl. 2-10)
3083836
Unavailable
2
PIN, DOWEL Substituted by 3086838
3080103
$7.14
2
PIN, DOWEL Substituted by 3086838
3080103
$7.14
3
BOLT AND WASHER ASSY.
3082096
$1.49
4
BOLT&WASHER ASSY.
3083615
Unavailable
5
BOLT W/WASHER
3080739
$6.39
6
SEAL,OIL
3082162
$39.99
6
SEAL,OIL
3082162
$39.99
7
BEARING,BALL
3083805
Unavailable
8
STUD Substituted by 3085713
3080746
Unavailable
8
STUD Substituted by 3085713
3080746
Unavailable
9
PLUG, DRAIN
3083767
Unavailable
10
GASKET, ALUM,(10) Substituted by 7555998
3082758
$1.19
11
CYLINDER Substituted by 3085541 (Incl. 12-14)
3083769
Unavailable
12
Stud
3080283
$12.94
13
STUD (10)
3080016
$5.75
14
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
15
GASKET,CYLINDER
3083733
$40.46
16
NUT-FLANGE(10)
3082911
$1.99
17
GASKET
3083835
Unavailable
18
BOLT&WASHER
3083730
$4.79
19
HEAD, CYLINDER Substituted by 3086841
3083620
Unavailable
20
GASKET, HEAD
3083768
Unavailable
21
NUT-FLANGE(10)
3082910
$2.39
22
MOUNTING,RUBBER
3083731
$4.95
23
COLLAR
3083732
Unavailable
24
ADAPTER, CARB. Substituted by 3085013
3083412
$100.38
25
BAND-CARB MTG. (Incl. 26)
3082257
Unavailable
26
SCREW,(10)
3081497
$2.39
27
Bolt, Allen
3081330
$3.99
28
FIN DAMPER #1
3083929
Unavailable
28
FIN DAMPER #1
3083929
Unavailable
29
FIN DAMPER #2
3083930
Unavailable
30
FIN DAMPER #3
3083931
Unavailable
31
FIN DAMPER #4
3083932
$18.23
31
FIN DAMPER #4
3083932
$18.23
32
GASKET, EXHAUST
3083770
Unavailable
33
NUT(10)
3080285
Unavailable
34
WASHER LOCK ,(10)
3080530
$3.19
