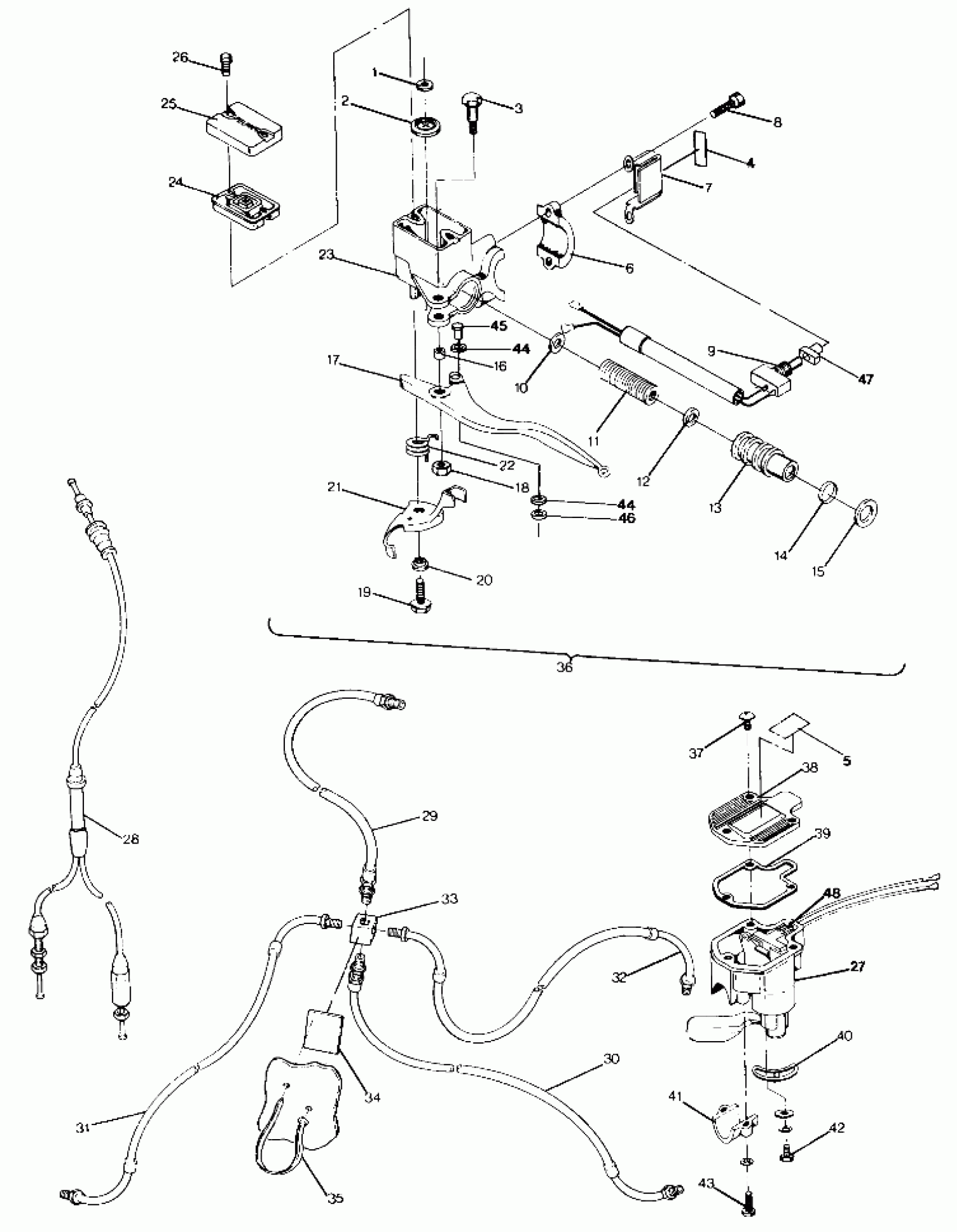

Polaris TRAIL BOSS 250 - W928527 CONTROL ASSEMBLY Trail Boss / W928527 (4922892289013A) Diagram

#

Description
Price

1

WASHER, BAFFLE(10)

1930662

Unavailable

2

BAFFLE,MASTER CYL.

1930673

Unavailable

3

BOLT,BRAKE LEVER(10)

7512287

Unavailable

4

DECAL,O'RIDE SWITCH Substituted by 7076274

7072390

Unavailable

5

DECAL,THROTTLE(ENG.) [No Longer Available]

7072724

Unavailable

6

CLAMP, MASTER CYL.

5630342

Unavailable

7

BRKT,O'RIDE SW. Substituted by 5222475

5222318

Unavailable

8

BOLT,SOCKET HEAD(10)

7512290

$4.79

9

SW,O'RIDE,REV.LIMIT.

4110083

$35.99

10

WASHER(10)

7555708

$3.99

11

SPRING,COMPRESSION,(10)

7041203

$33.87

12

U PACKING SEAL

5410164

Unavailable

13

PISTON, MASTER CYL.

5020599

Unavailable

14

O RING

5410163

$1.60

15

SEAL, OIL

3610022

Unavailable

16

BUSHING,BRAKE LEVER

5332931

Unavailable

17

LEVER, BRAKE

5630387

Unavailable

18

NUT(10)

7542124

Unavailable

19

SCREW(10)

7511866

$4.79

20

BUSHING,PK.BRAKE LEVER

5020545

Unavailable

21

LEVER,PARK.BRAKE

2050060

$5.75

22

SPRING,PK.BRAKE

7041229

$32.37

23

HSG.,MASTER CYL.

5130772

Unavailable

24

GASKET,MASTER CYL.

5410527

$8.99

25

COVER,MASTER CYL.

5630338

Unavailable

26

SCREW,W/WASHER(10)

7512050

$3.99

27

THROTTLE CONTROL ASM.

2010091

Unavailable

28

CABLE,THROTTLE CONTROL Substituted by 7080531

7080375

$204.99

29

LINE,BRAKE,UP.,W/FTGS. Substituted by 1930748 (M/C)

1930633

$84.93

30

LINE,BRAKE,LH.FRT,W/FTGS. Substituted by 1930752

1930631

$84.93

31

LINE,BRAKE,RH FRT. Substituted by 1930753

1930634

$84.93

32

LINE,BRAKE,R.,W/FTGS.

1930632

Unavailable

33

FITTING, TEE

7052044

Unavailable

34

PAD,GAS TANK [No Longer Available]

5850040

Unavailable

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

36

MASTER CYL.ASM.(ATV) Substituted by 2050066

2050055

$235.51

37

SCREW,BUTTON HEAD

2010079

Unavailable

38

CAP

2010080

Unavailable

39

PACKING,THROTTLE

2010081

Unavailable

40

PLATE

2010075

Unavailable

41

HOLDER

2010078

$13.19

42

BOLT, HEX.

2010076

Unavailable

43

SCREW, SEMS(10)

2010077

Unavailable

44

ROLLER, BRAKE LEVER

5020598

Unavailable

44

ROLLER, BRAKE LEVER

5020598

Unavailable

45

PIN,BRAKELEVER ROLLER

7661627

Unavailable

46

RING, RETAINING(10)

7710425

Unavailable

47

BOOT, O'RIDE SW.

7080379

Unavailable

48

SWITCH,ETC,REPL.(2WD-4X6)

4110131

Unavailable
