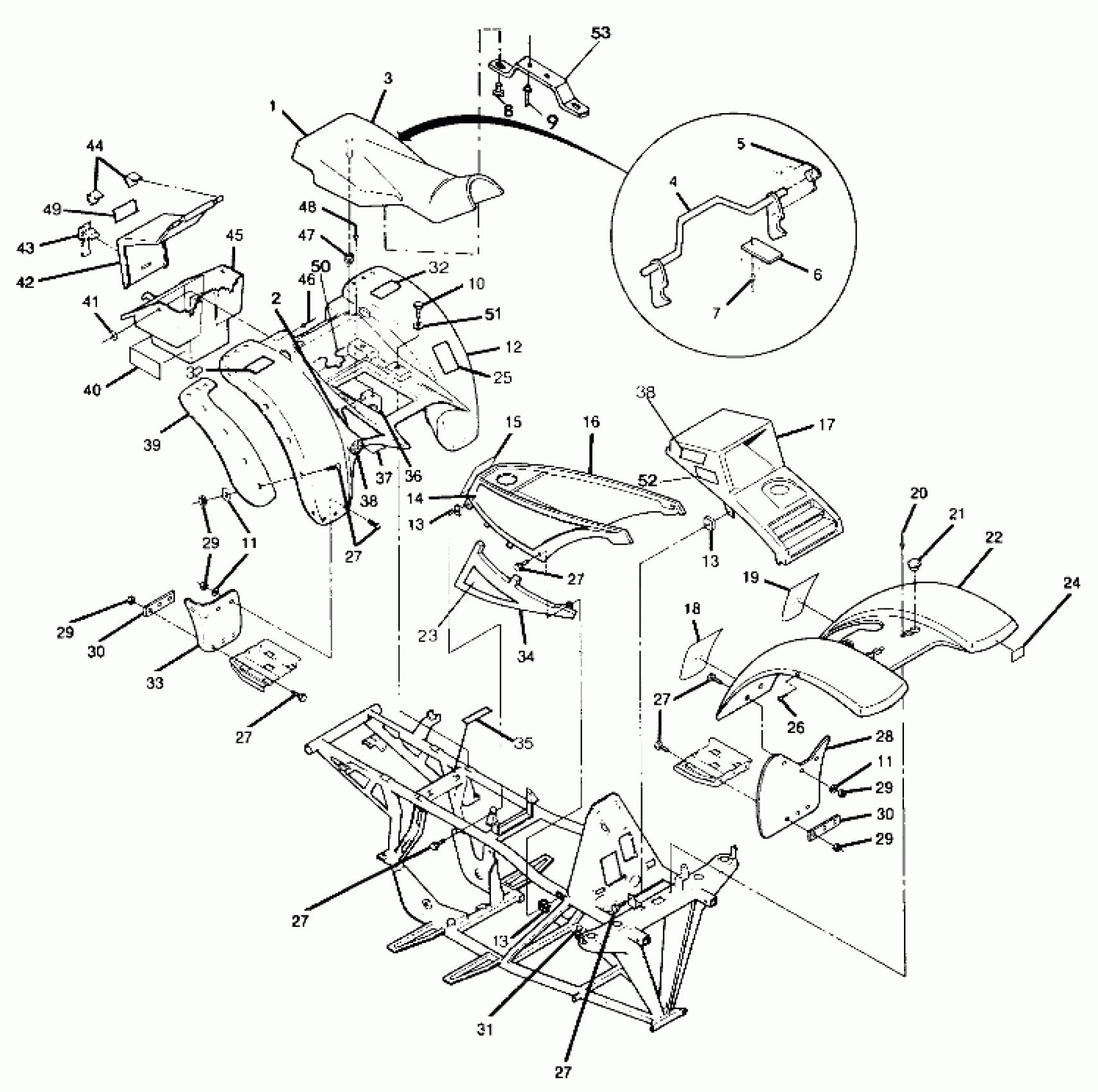

Polaris TRAIL BOSS 250 - W928527 BODY ASSEMBLY Trail Boss / W928527 (4922892289001A) Diagram

#

Description
Price

1

SEAT ASM,(ATV) Substituted by 2681724-157

2681512

Unavailable

2

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

7072786

Unavailable

3

COVER,SEAT,(BLUE) Substituted by 2681723-157

2681513

Unavailable

4

LATCH,SEAT

1011558

Unavailable

5

SPRING, LATCH

7041158

Unavailable

6

BRACKET,LEVER RETAINER

5211033

$34.99

7

BLIND RIVET(50)

7621403

$1.19

8

Bumper, Rubber

5410414

$3.17

9

RIVET

7621481

Unavailable

10

BOLT(10)

7512232

$1.19

11

WASHER, FLAT(10)

7555859

$1.19

11

WASHER, FLAT(10)

7555859

$1.19

12

CAB,REAR (Fender)

5430991-152

Unavailable

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

14

DECAL, TRAIL BOSS

7073446

Unavailable

15

DECAL(CPSC),AGE WARN. Substituted by 7074827

7072933

Unavailable

16

COVER,FUELTANK,BON.BLUE

5431197-157

Unavailable

17

COVER,H/L.(TAN)

5430973-152

$67.46

18

DECAL(CPSC),WARNING DISC

7073147

Unavailable

19

DECAL,WARNING(CPSC) [No Longer Available]

7072693

Unavailable

20

RIVET(50)

7621457

$1.19

21

PLUG, RACK HOLE

5430887

Unavailable

22

CAB, FRT. Substituted by 2631549-152 (Fender)

5430990-152

Unavailable

23

DECAL, SIDE PANEL [No Longer Available]

7072884

Unavailable

24

LABEL, 'U.S.A.'

7073024

Unavailable

25

DECAL(CPSC),TIRE PRESS(T.B.) [No Longer Available]

7072793

Unavailable

26

CLIP, PUSH-ON(10)

7670052

$1.98

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

28

MUDFLAP,FRT,LH,BLK.

5850082-070

$11.51

28

MUDFLAP,FRT,RH,BLK.

5850083-070

$7.14

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

30

BRKT, LH MUD FLAP

5211131-067

Unavailable

30

BRKT, LH MUD FLAP

5211131-067

Unavailable

31

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

32

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

32

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

33

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

33

MUDFLAP,RH,LOW REAR

5850077

$23.65

34

COVER,LH,BON.BLUE,SIDEPAN Substituted by 5433382-157

5430970-157

Unavailable

34

COVER,RH,BON.BLUE,SIDEPAN Substituted by 5433579-157

5430971-157

Unavailable

35

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

36

BRKT,R.HOLDDOWN

5220880

Unavailable

37

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

38

DECAL,'250',ORANGE [No Longer Available]

7073442

Unavailable

38

DECAL,'250',ORANGE [No Longer Available]

7073442

Unavailable

39

FLAP,MUD,LH REAR

5850060

Unavailable

39

FLAP,MUD,RH REAR

5850061

Unavailable

40

TAPE, FOIL

5810310

Unavailable

41

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

42

LID,TOOLBOX(BLU/SAND)

5430769-1018

Unavailable

43

STRAP,TOOL COMPARTMENT

5410425

Unavailable

44

CLIP, LID HINGE(10)

7670050

Unavailable

45

BOX,TOOL COMP.

5430882

Unavailable

46

RIVET(50)

7621462

$1.19

47

GROMMET

5410413

Unavailable

48

RIVET,3/16X.402(50)

7621432

$1.19

49

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

50

RETAINER,TOOL POUCH

7080385

Unavailable

51

WASHER,WROUGHT(10)

7558302

$1.59

52

REFLECTOR ASM,AMBER

2670134

$10.51

53

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable
