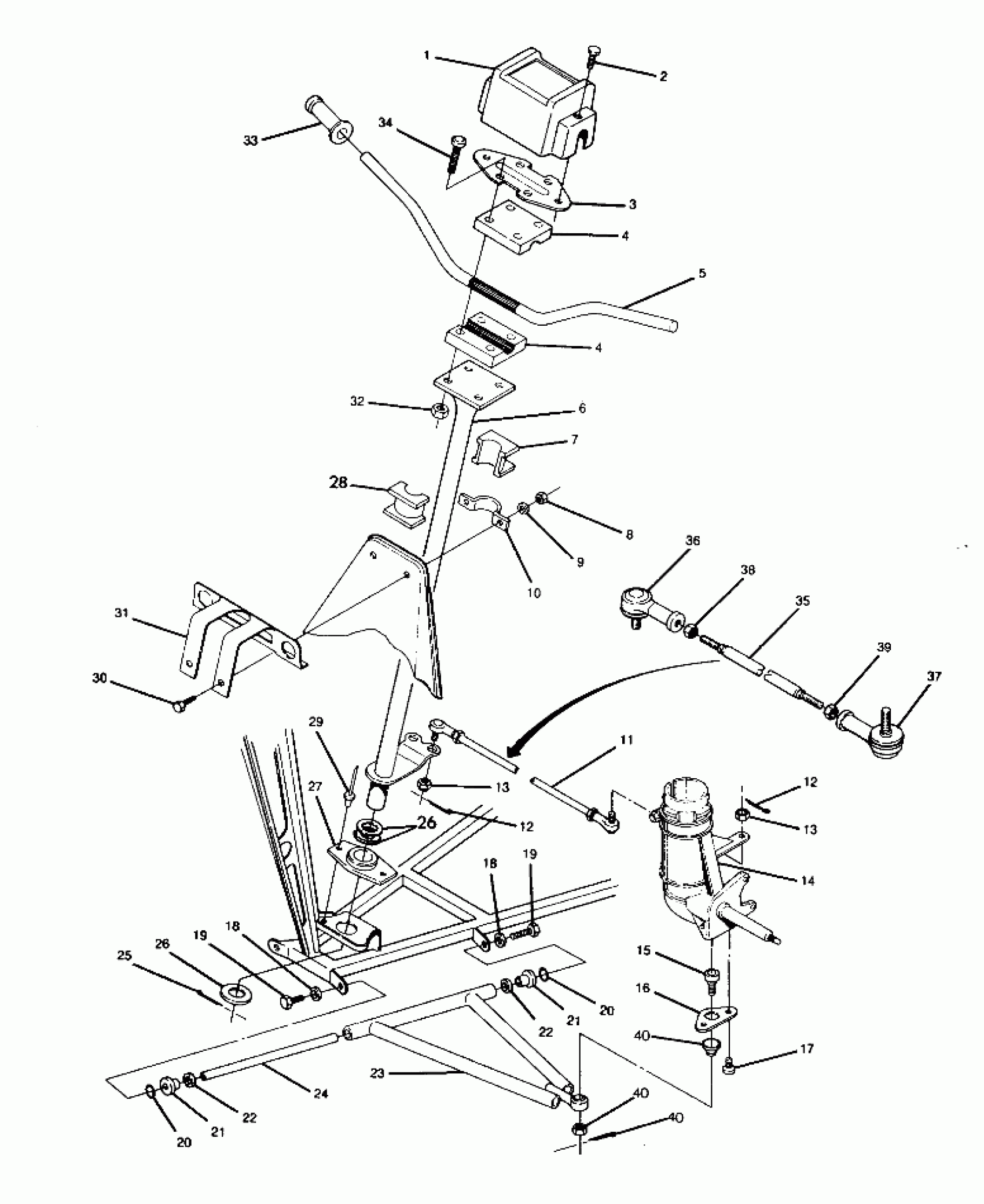

Polaris TRAIL BOSS 250 - W918527 STEERING ASSEMBLY Trail Boss - Update (4919771977011A) Diagram

#

Description
Price

1

PAD, HANDLEBAR

5810379

$40.46

2

BOLT(10) Substituted by 7515197

7512286

Unavailable

3

MOUNT,HDLBR. PAD Substituted by 5245051

5220946

$5.71

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

4

BLOCK,HANDLEBAR Substituted by 5630187-067

5630187

$3.65

5

TUBE,HDLBR,BLACK Substituted by 5242988-067

5224316-067

Unavailable

6

POST, STEERING

1843028-067

Unavailable

7

BUSHING,STRG.,UPPER Substituted by 5431572

5430966

Unavailable

8

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

BRKT,UP.STRG.BUSH,BLK. Substituted by 5222999-067

5220887-067

$32.37

11

TIE ROD ASM. Substituted by 1822307

1822070

Unavailable

12

PIN COTTER(10)

7661203

$1.49

12

PIN COTTER(10)

7661203

$1.49

13

NUT, CASTLE(10)

7546904

$4.79

13

NUT, CASTLE(10)

7546904

$4.79

14

SUPPORT,LH STRUT&SPINDLE Substituted by 5130803

5130655

Unavailable

14

SUPPORT,RH STRUT&SPINDLE Substituted by 5130804

5130656

Unavailable

15

BALL JOINT Substituted by 7080673

7080364

Unavailable

16

BRACKET-BALL JOINT

5211121

$31.99

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

19

BOLT(10) Substituted by 7512492

7515458

Unavailable

20

O RING

5410458

Unavailable

20

O RING

5410458

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

21

BUSHING, A-ARM ("J" Model Only)

3563604

Unavailable

21

BEARING,'A' ARM Substituted by 2200474

3576509

Unavailable

21

BUSHING, A-ARM ("J" Model Only)

3563604

Unavailable

22

WASHER(10)

7555774

Unavailable

22

WASHER(10)

7555774

Unavailable

23

A-FRAME, LH Substituted by 2200477

1580028-067

Unavailable

23

A-FRAME, RH Substituted by 2200478

1580029-067

Unavailable

24

SHAFT,'A' ARM

5020477

Unavailable

25

PIN, COTTER(10)

7661404

$4.79

26

BUSHING(10)

7555781

Unavailable

26

BUSHING(10)

7555781

Unavailable

27

BUSHING,STRG.,LOWER Substituted by 5431570

5430895

Unavailable

28

BUSHING,UPPER STRG. Substituted by 5431573

5431138

$8.48

29

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

30

SCREW(10)

7512307

$3.99

31

BRKT, IGN. PANEL

5220965-067

Unavailable

32

NUT-LOCK(10)

7542122

$1.49

33

GRIP, HANDLEBAR

5431030

$24.27

34

BOLT,(10)

7512265

$3.99

35

TIE ROD

5020478

$48.56

36

ROD END, RH Substituted by 7060172

7060138

$56.65

37

ROD END

7060147

$56.65

38

NUT, RH, 10 MM.(10)

7546901

$2.39

39

NUT, LH, 10 MM.(10)

7546902

Unavailable

40

KIT, BALL JOINT (Includes boot, Nut and cotter pin)

2200290

Unavailable

40

KIT, BALL JOINT (Includes boot, Nut and cotter pin)

2200290

Unavailable

40

KIT, BALL JOINT (Includes boot, Nut and cotter pin)

2200290

Unavailable
