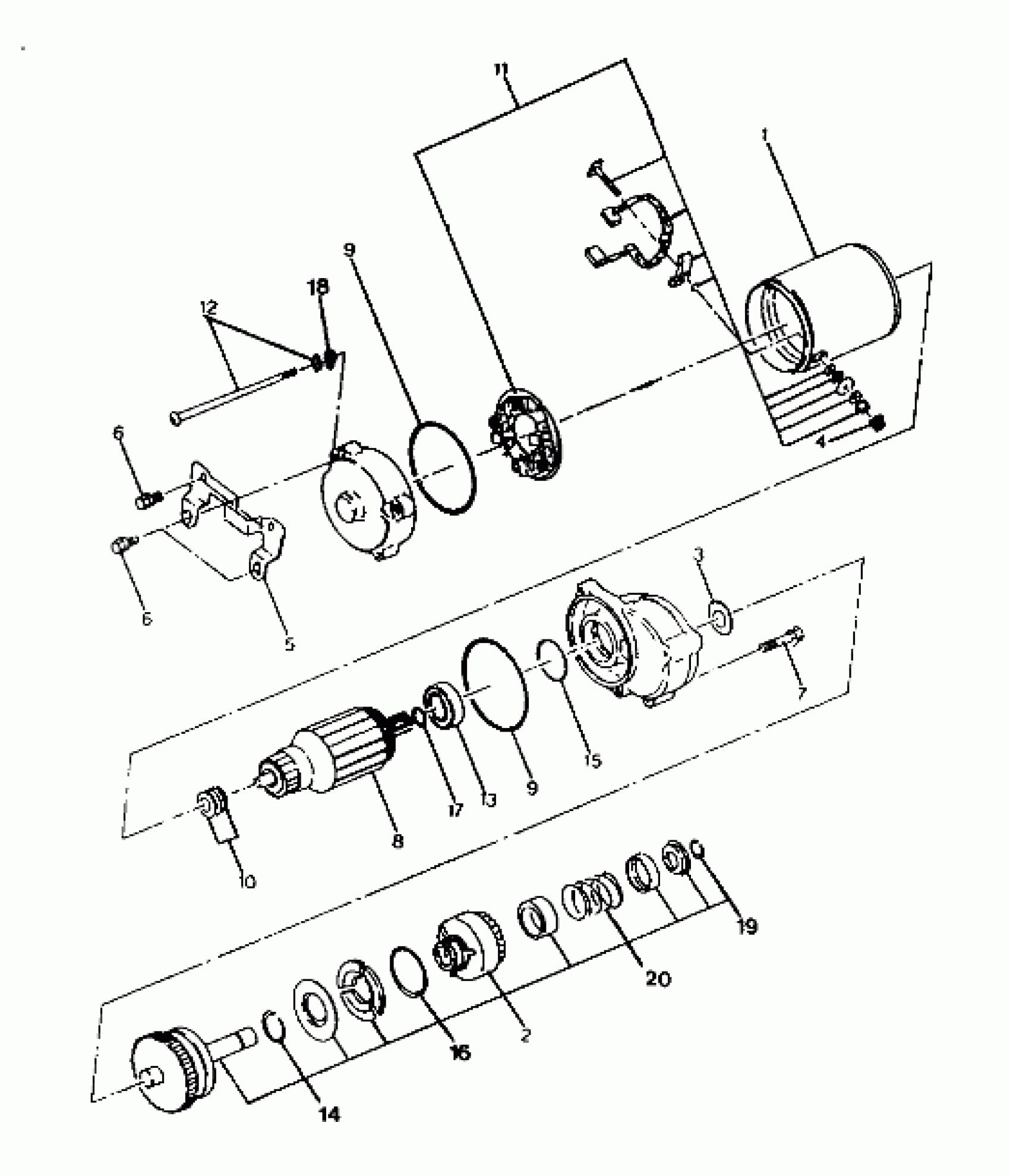

Polaris TRAIL BOSS 250 - W918527 STARTING MOTOR ASSEMBLY Trail Boss - Update (4919771977037A) Diagram

#

Description
Price

1

STARTER MOTOR ASM. Substituted by 3084403 (Incl. 8-18)

3083760

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 8-17) ("J" Model Only)

3084403

Unavailable

2

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 3)

3083647

Unavailable

3

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

4

NUT, FLANGE(10)

3083649

$3.99

5

Bracket

3083650

Unavailable

6

BOLT,(10)

3081645

Unavailable

6

BOLT,(10)

3081645

Unavailable

7

BOLT&WASHER ASM.

3082038

$3.99

8

ARMATURE ASM. (Incl. 13, 17)

3083776

$191.99

8

ARMATURE ASM. * (Incl. 13, 17) ("J" Model Only)

3084404

$207.99

9

RING, RUBBER ("J" Model Only)

3084405

Unavailable

9

RING, RUBBER

3083738

$1.83

9

RING, RUBBER ("J" Model Only)

3084405

Unavailable

9

RING, RUBBER

3083738

$1.83

10

Washer Set

3083754

$2.39

11

BRUSH ASM.

3083728

Unavailable

11

BRUSH,COMPL.2-POLE * ("J" Model Only)

3084406

Unavailable

12

BOLT,THROUGH

3083739

Unavailable

12

BOLT, THROUGH ("J" Model Only)

3084407

Unavailable

13

BALL BEARING

3083777

$31.99

14

CLIP ("J" Model Only)

3084412

$9.59

15

O RING

3083741

$9.37

16

SPRING, WEIGHT ("J" Model Only)

3084411

$15.67

17

O RING

3083934

Unavailable

18

O-RING ("J" Model Only)

3084408

Unavailable

19

CLIP ("J" Model Only)

3084409

$7.19

20

SPRING, RETURN ("J" Model Only)

3084410

$2.47
