Description

Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

$39.59

3

HUB, WHEEL Substituted by 2200341

5130767

$93.08

3

HUB, WHEEL Substituted by 2200341

5130767

$93.08

4

TIRE,REAR

5410465

Unavailable

5

NUT, WHEEL(10)

7542714

$1.59

6

WASHER(10)

7555745

$7.19

6

WASHER(10)

7555745

$7.19

7

NUT, CASTLE(10)

7543005

Unavailable

7

NUT, CASTLE(10)

7543005

Unavailable

8

PIN, COTTER(10)

7661404

$4.79

8

PIN, COTTER(10)

7661404

$4.79

9

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

9

COVER,DUST,HUB Substituted by 5411164

5410404

Unavailable

10

VALVE-RIM

1525017

$5.59

10

VALVE-RIM

1525017

$5.59

11

CONNECTOR LINK

3225024

$19.99

12

CHAIN,DRIVE,86P Substituted by 3224056-086 (Includes Connector)

3224046

Unavailable

13

NUT LOCK(10) ("J" Model Only)

7542403

$3.99

13

BOLT(10)

7515488

Unavailable

14

SPROCKET, 34T Substituted by 3222068

3222050

$109.99

15

SPROCKET HUB ASM. ("J" Model Only)

1520170

Unavailable

15

HUB,SPROCKET WELD Substituted by 1520170

1011559

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

16

O RING, 1 5/16(10)

5410415

Unavailable

17

SEAL, REAR AXLE

3610013

$19.99

17

SEAL, REAR AXLE

3610013

$19.99

18

Bearing, Ball

3515501

$27.99

18

Bearing, Ball

3515501

$27.99

19

TUBE,BEARING SPACER

5010204

Unavailable

20

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

21

HOUSING, AXLE

5130663

Unavailable

22

SPACER,BEARING

5010206

$35.99

23

RING, SNAP(10)

7710405

$4.79

24

AXLE, REAR

5020504

$239.99

25

RIM,REAR,PRIMED Substituted by 1520114 (Primed)

1520128

Unavailable

26

BOLT, WHEEL(10)

7512673

$3.19

26

BOLT, WHEEL(10)

7512673

$3.19

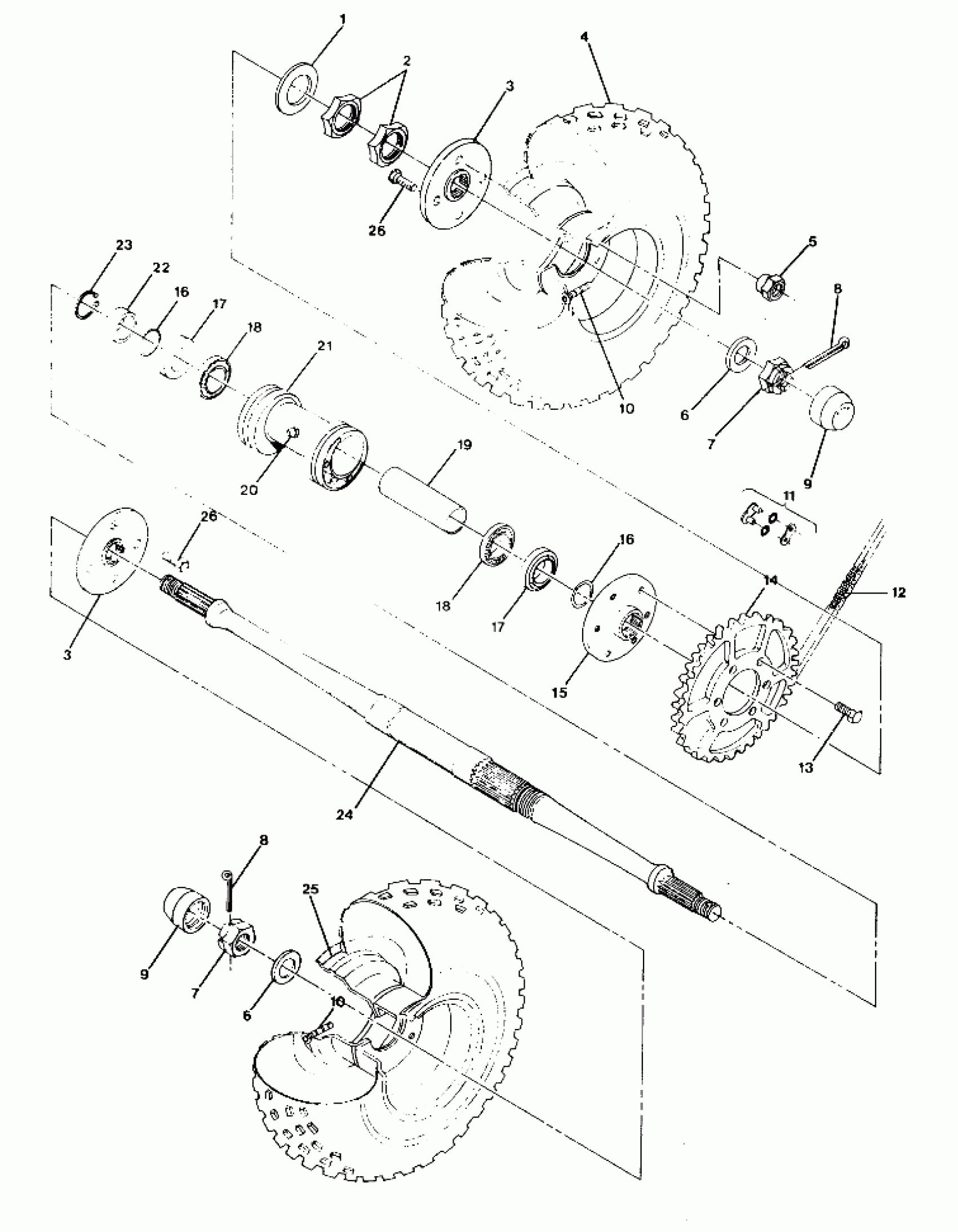

Polaris TRAIL BOSS 250 - W918527 REAR WHEEL DRIVE ASSEMBLY Trail Boss - Update (4919771977017A) Diagram

WASHER(10)

Nut, Jam

HUB, WHEEL Substituted by 2200341

HUB, WHEEL Substituted by 2200341

TIRE,REAR

NUT, WHEEL(10)

WASHER(10)

WASHER(10)

NUT, CASTLE(10)

NUT, CASTLE(10)

PIN, COTTER(10)

PIN, COTTER(10)

COVER,DUST,HUB Substituted by 5411164

COVER,DUST,HUB Substituted by 5411164

VALVE-RIM

VALVE-RIM

CONNECTOR LINK

CHAIN,DRIVE,86P Substituted by 3224056-086 (Includes Connector)

NUT LOCK(10) ("J" Model Only)

BOLT(10)

SPROCKET, 34T Substituted by 3222068

SPROCKET HUB ASM. ("J" Model Only)

HUB,SPROCKET WELD Substituted by 1520170

O RING, 1 5/16(10)

O RING, 1 5/16(10)

SEAL, REAR AXLE

SEAL, REAR AXLE

Bearing, Ball

Bearing, Ball

TUBE,BEARING SPACER

FITTING,LUBE.W/BALL CK.(10)

HOUSING, AXLE

SPACER,BEARING

RING, SNAP(10)

AXLE, REAR

RIM,REAR,PRIMED Substituted by 1520114 (Primed)

BOLT, WHEEL(10)

BOLT, WHEEL(10)
