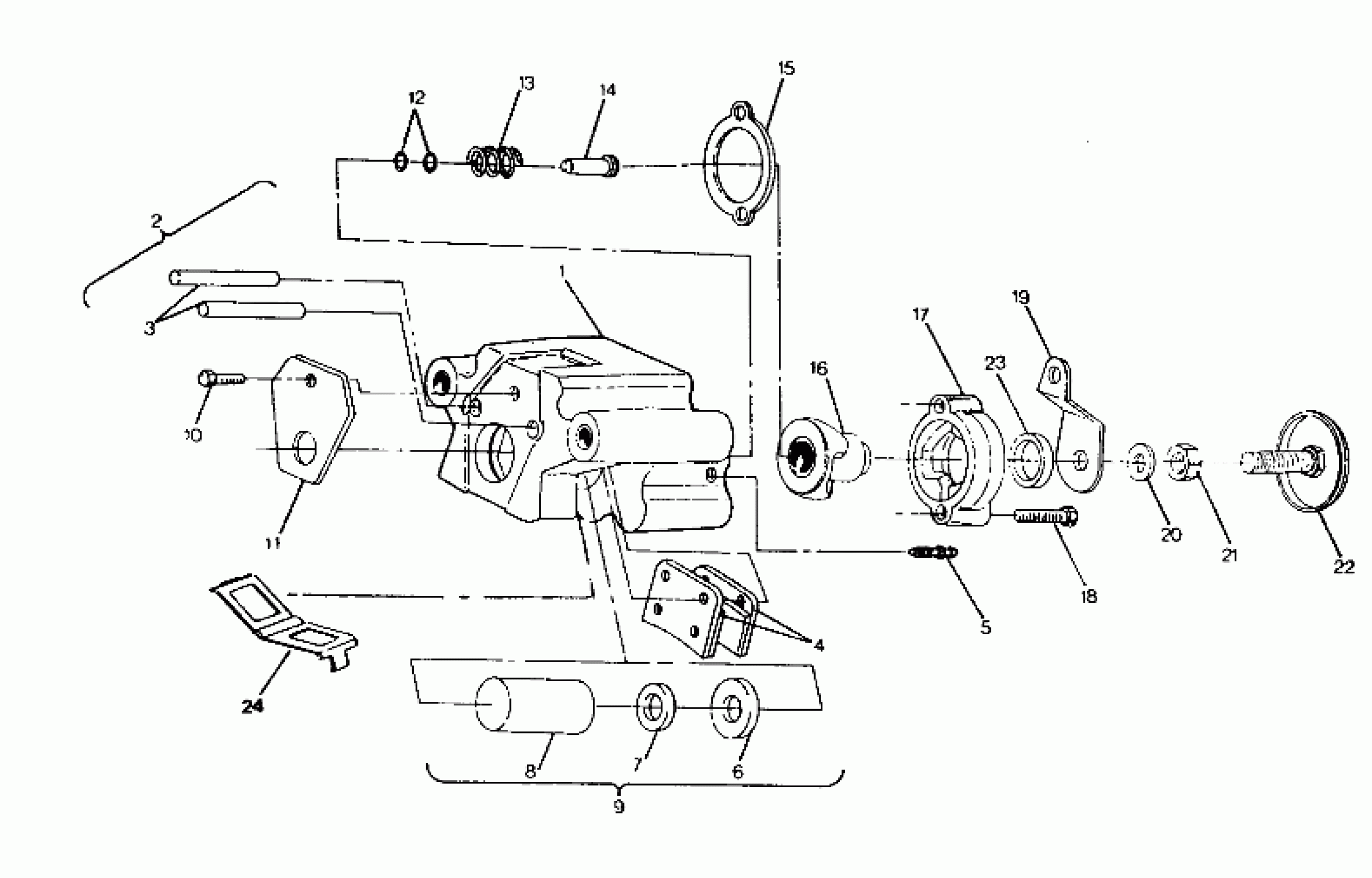

Polaris TRAIL BOSS 250 - W918527 REAR BRAKE ASSEMBLY Trail Boss - Update (4919771977030A) Diagram

#

Description
Price

-

CALIPER ASM,R.BRAKE Substituted by 1910073 (Includes 1-24)

1910046

Unavailable

-

CALIPER, R.BRAKE (Includes 1-24) ("J" Model Only)

1910073

Unavailable

1

CALIPER,REAR BRAKE

5130714

Unavailable

2

KIT,PAD,R.BRAKE Substituted by 2200464 (Incl. 3,4)

1930644

$31.75

3

PIN, DOWEL(10)

7661820

$13.99

4

Brake Pad, Rear

-------

Unavailable

5

SCREW,BLEEDER

7080352

$3.19

6

Seal Ring, .120 Square

-------

Unavailable

7

Seal Ring, .066 Square

-------

Unavailable

8

Brake Piston, Rear

-------

Unavailable

9

KIT,BRAKE SEALS&PISTON (Incl.6-8, 12, 14, 15)

1930666

Unavailable

10

SCREW, SEMS(10)

7512020

$2.39

11

PLATE, PIN

5211143

Unavailable

12

O-RING

-------

Unavailable

13

SPRING,BRAKE,COMP.

7041219

$24.99

14

Brake Pin, Actuator

-------

Unavailable

15

GASKET, BRAKE

5830009

$9.99

16

RAMP,MOVE.BRAKE Substituted by 2200391 ("J" Model Only)

5630394

Unavailable

16

RAMP,MOVE.BRAKE Substituted by 2200391

5630366

Unavailable

17

RAMP,STATION.BRAKE Substituted by 2200391

5630346

Unavailable

17

RAMP,STATION.BRAKE Substituted by 2200391 ("J" Model Only)

5630395

Unavailable

18

BOLT, SOC. HD.(10)

7512292

Unavailable

19

ARM,BRAKE,CALIPER ("J" Model Only)

5222664

Unavailable

19

ARM,BRAKE CALIPER Substituted by 2200391

5222454

Unavailable

20

WASHER, SPRING(10)

7555828

Unavailable

21

NUT(10)

7542129

$4.79

22

KNOB,BRAKE ADJUSTOR

1930691

Unavailable

23

SEAL, BRAKE

3610026

$7.99

24

SPRING,ANTI-RATTLE

5222232

Unavailable
