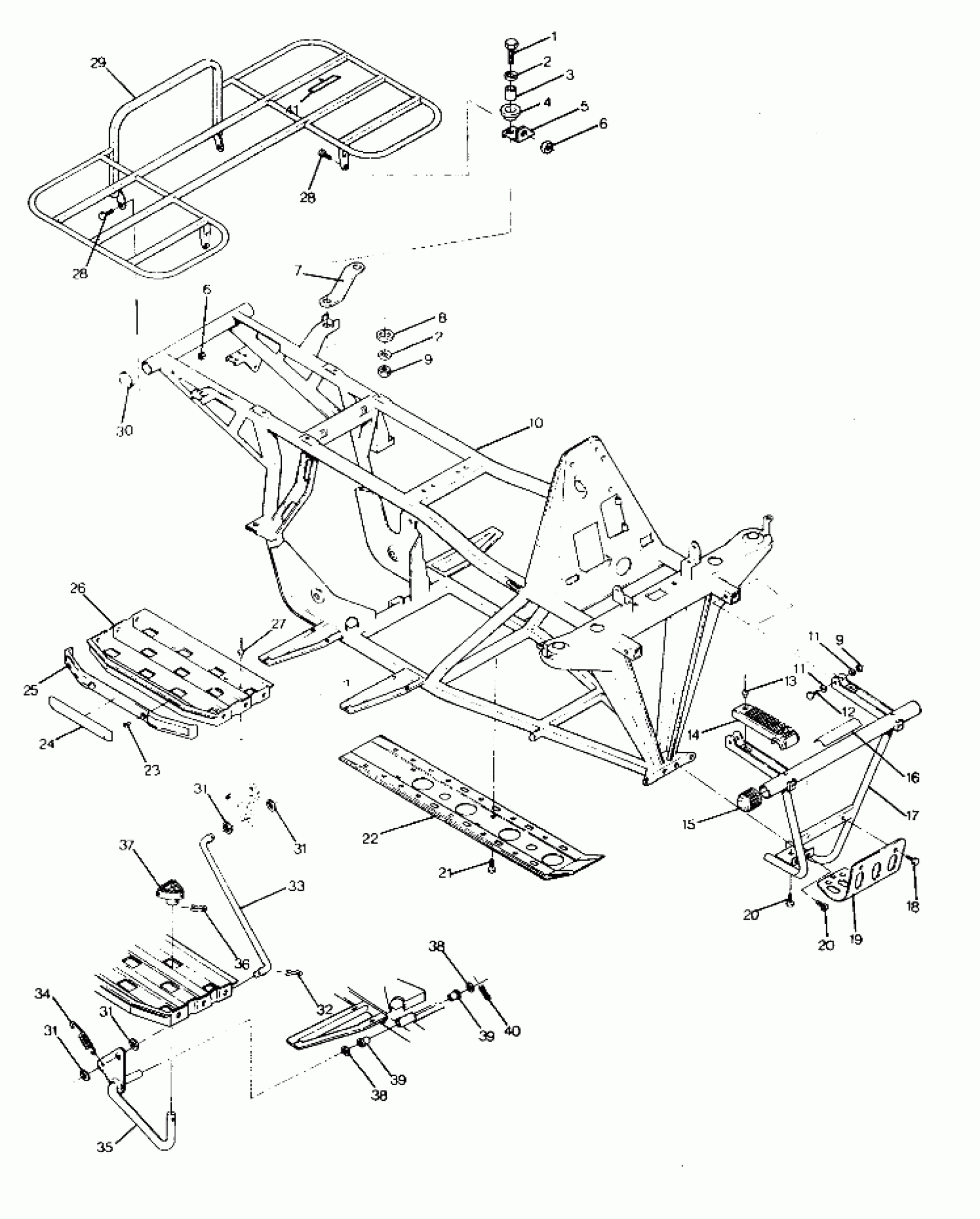

Polaris TRAIL BOSS 250 - W918527 FRAME ASSEMBLY with RACKS Trail Boss - Update (4919771977003A) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

6

NUT, NYLOK(10) (Nylok)

7542327

$4.79

6

NUT, NYLOK(10) (Nylok)

7542327

$4.79

7

SUPPORT,R.FENDER

5220902-067

$48.40

8

WASHER,RUBBER

5410436

$1.59

9

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

10

FRAME, (TRAIL BOSS) [No Longer Available]

1040257-067

Unavailable

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

BOLT(10)

7512329

$3.99

13

RIVET(50)

7621229

Unavailable

14

COVER,BRKT,BUMPER MT.

5431023

$10.71

15

CAP,BUMPER,FR,BON.BLUE

5431013-157

$12.39

16

DECAL, FR.SUSP.

7073087

Unavailable

17

BUMPER,FRT,(BLACK)

2670106-067

Unavailable

18

SCREW(10)

7512208

$3.99

19

SKID-PLATE,FR.BUMPER

5220981

Unavailable

20

SCREW(10)

7512399

$5.59

20

SCREW(10)

7512399

$5.59

21

BOLT(10)

7512232

$1.49

22

GUARD, ROCK, BLK.

5220922-067

$61.99

23

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

24

REFLECTOR AMBER

2670071

Unavailable

25

RUBRAIL,(FOOTREST) Substituted by 5431484

5431019

Unavailable

26

PAD, FOOT, LH. Substituted by 1040274-117

1040189

$81.75

27

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

28

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

28

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

29

RACK, REAR Substituted by 2670110-067

2670110-157

Unavailable

30

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

31

WASHER(10)

7555827

$3.99

31

WASHER(10)

7555827

$3.99

31

WASHER(10)

7555827

$3.99

31

WASHER(10)

7555827

$3.99

32

PIN, COTTER(10)

7661103

$4.99

33

ROD,BRAKE LINKAGE Substituted by 5224446

5224394

Unavailable

34

SPRING-EXHAUST(10)

7042029

$4.84

35

PEDAL, BRAKE

1910045-067

$11.33

36

PIN, SPIRAL(10)

7661416

Unavailable

37

PEDAL,FOOT

5130715-067

Unavailable

38

WASHER THRUST(10)

7558702

$1.59

38

WASHER THRUST(10)

7558702

$1.59

39

BUSHING-PEDAL PIVOT

5431107

$8.79

39

BUSHING-PEDAL PIVOT

5431107

$8.79

40

COTTER PIN(10)

7661401

$1.49

41

PAD,RACK MOUNT

5810455

$3.19
