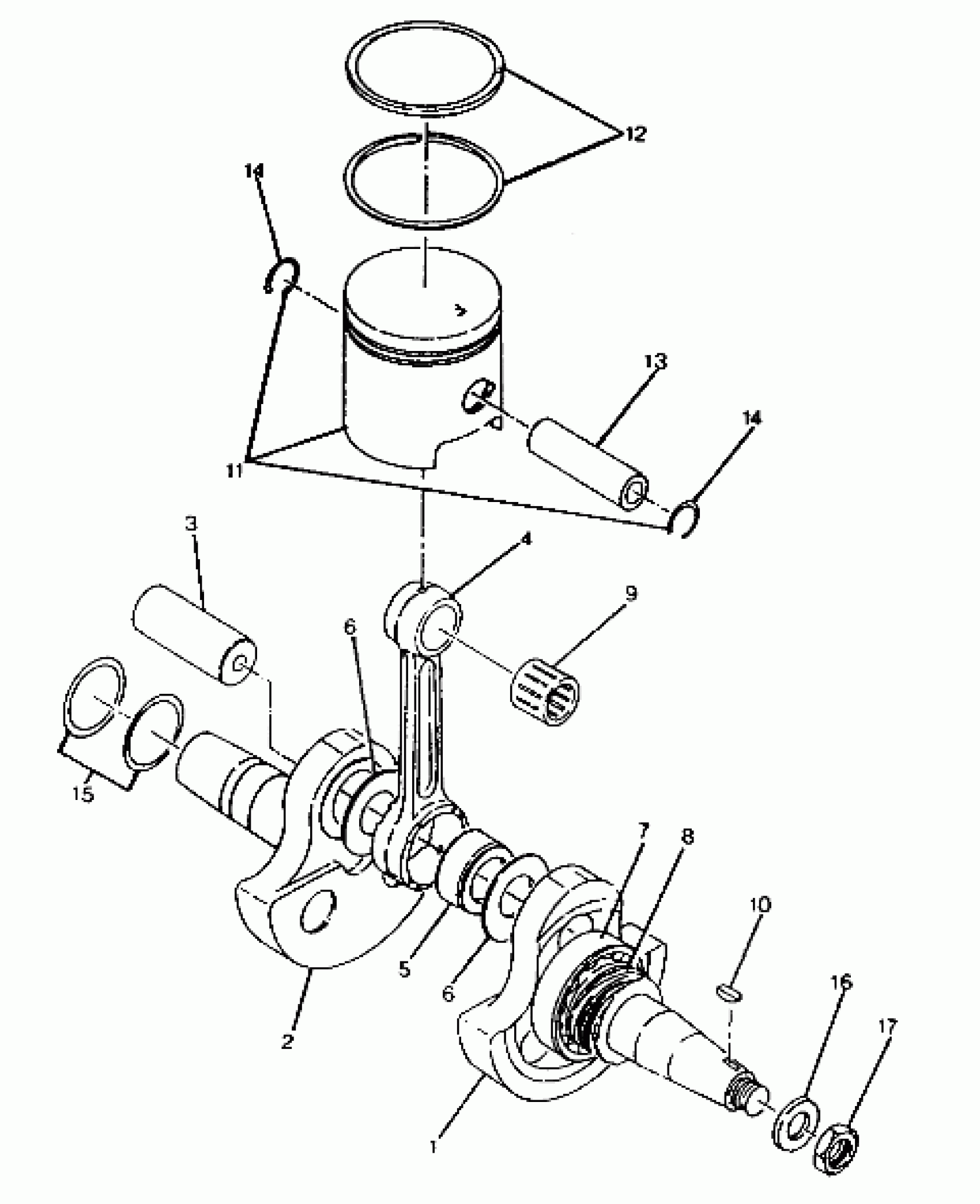

Polaris TRAIL BOSS 250 - W918527 CRANKSHAFT and PISTON Trail Boss - Update (4919771977034A) Diagram

#

Description
Price

-

CRANKSHAFT Substituted by 3084582 (Incl. 1-8)

3083921

Unavailable

1

CRANKSHAFT #1

3083899

$329.99

2

CRANKSHAFT,#2

3083802

Unavailable

3

CRANK PIN PTO

3082796

$36.41

4

ROD CONNECTING

3082790

Unavailable

5

BEARING,LGE.END

3083803

Unavailable

6

Spacer

3083804

$19.99

6

Spacer

3083804

$19.99

7

BEARING,BALL

3083805

Unavailable

8

GEAR, CRANKSHAFT Substituted by 3083745

3083414

Unavailable

9

BEARING, SMALL END

3083626

Unavailable

10

KEY WOODRUFF

3081543

$12.94

11

SET,PISTON,.040"/1.00MM O/S* (1.00mm/.040" O/S)

3083972

Unavailable

11

PISTON * (Standard)

3083942

Unavailable

11

PISTON,.020 O/S (0.50 Oversize)

3083944

Unavailable

11

PISTON,.010 O/S (0.25 Oversize)

3083943

Unavailable

12

RING, PISTON

3083546

Unavailable

12

RING,.020 O/S (0.50 Oversize)

3083717

$28.56

12

RING,PISTON(O/S,1.0MM) (1.0 Oversize)

3083974

$31.99

12

RING,.010 O/S (0.25 Oversize)

3083678

Unavailable

13

Pin, Piston

3083838

$27.99

14

CLIP,PISTON PIN,(10)

3083839

$4.75

14

CLIP,PISTON PIN,(10)

3083839

$4.75

15

SPACER #1 (0.2mm)

3083629

Unavailable

15

SPACER #3 (0.1mm)

3083630

Unavailable

16

WASHER Substituted by 3086767

3083904

Unavailable

17

LOCKNUT

3083905

Unavailable
