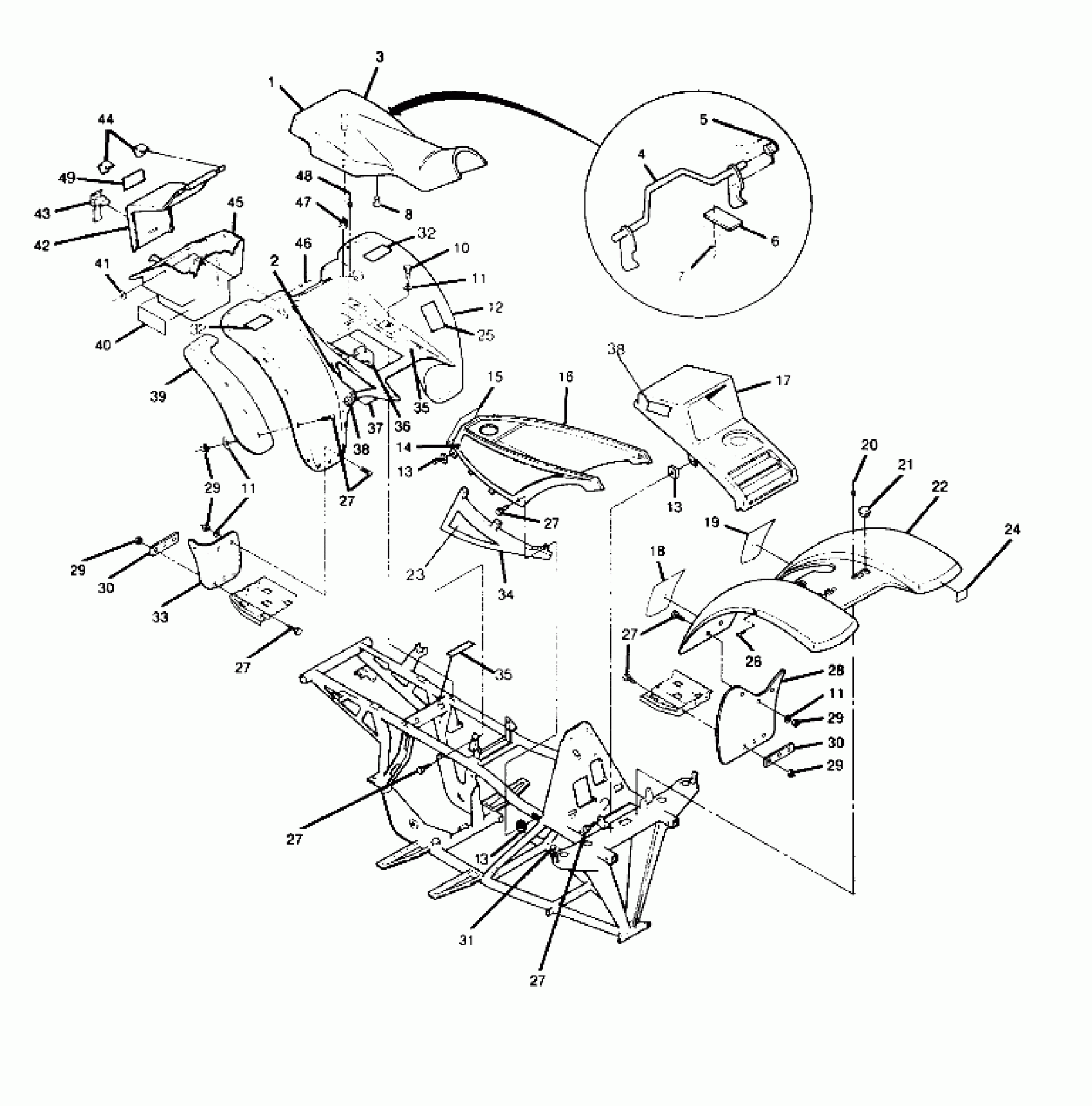

Polaris TRAIL BOSS 250 - W918527 BODY ASSEMBLY Trail Boss - Update (4919771977001A) Diagram

#

Description
Price

1

SEAT ASM,(ATV) Substituted by 2681724-157

2681512

Unavailable

2

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

7072786

Unavailable

3

COVER,SEAT,(BLUE) Substituted by 2681723-157

2681513

Unavailable

4

LATCH,SEAT

1011558

Unavailable

5

SPRING, LATCH

7041158

Unavailable

6

BRACKET,LEVER RETAINER

5211033

$34.99

7

BLIND RIVET(50)

7621403

$1.19

8

Bumper, Rubber

5410414

$3.17

10

BOLT(10)

7512232

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

11

WASHER(10)

7558301

$1.19

12

CAB,REAR (Fender)

5430991-152

Unavailable

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

13

NUT, SPEED(10)

7670060

$3.97

14

DECAL,TRAIL BOSS

7073085

Unavailable

15

DECAL(CPSC),AGE WARN. Substituted by 7074827

7072933

Unavailable

16

COVER,FUELTANK,BON.BLUE

5431197-157

Unavailable

17

COVER,H/L.(TAN)

5430973-152

$67.46

18

DECAL(CPSC),WARNING DISC

7073147

Unavailable

19

DECAL,WARNING(CPSC) [No Longer Available]

7072693

Unavailable

20

RIVET(50)

7621457

$1.19

21

PLUG, RACK HOLE

5430887

Unavailable

22

CAB, FRT. Substituted by 2631549-152

5430990-152

Unavailable

23

DECAL, SIDE PANEL [No Longer Available]

7072884

Unavailable

24

LABEL, 'U.S.A.'

7073024

Unavailable

25

DECAL(CPSC),TIRE PRESS(T.B.) [No Longer Available]

7072793

Unavailable

26

CLIP, PUSH-ON(10)

7670052

$1.98

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

27

BOLT, BLACK(10)

7512282

Unavailable

28

MUDFLAP, LH FRONT Substituted by 5850082-070

5850082

$11.51

28

MUDFLAP, RH FRONT Substituted by 5850083-070

5850083

Unavailable

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

29

NUT-LOCK(10)

7542122

$1.19

30

BRKT, LH MUD FLAP

5211131-067

Unavailable

30

BRKT, LH MUD FLAP

5211131-067

Unavailable

31

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

32

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

32

DECAL(CPSC),WARN,R.RACK [No Longer Available]

7072788

Unavailable

33

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

33

MUDFLAP,RH,LOW REAR

5850077

$23.65

34

COVER,LH,BON.BLUE,SIDEPAN Substituted by 5433382-157

5430970-157

Unavailable

34

COVER,RH,BON.BLUE,SIDEPAN Substituted by 5433579-157

5430971-157

Unavailable

35

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

35

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

36

BRKT,R.HOLDDOWN

5220880

Unavailable

37

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

38

DECAL,WHI/RED,'250' [No Longer Available]

7073082

Unavailable

38

DECAL,WHI/RED,'250' [No Longer Available]

7073082

Unavailable

39

FLAP,MUD,LH REAR

5850060

Unavailable

39

FLAP,MUD,RH REAR

5850061

Unavailable

40

TAPE, FOIL

5810310

Unavailable

41

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

42

LID,TOOLBOX(BLU/SAND)

5430769-1018

Unavailable

43

STRAP,TOOL COMPARTMENT

5410425

Unavailable

44

CLIP, LID HINGE(10)

7670050

Unavailable

45

BOX,TOOL COMP.

5430882

Unavailable

46

RIVET(50)

7621462

$1.19

47

GROMMET

5410413

Unavailable

48

RIVET,3/16X.402(50)

7621432

$1.19

49

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable
