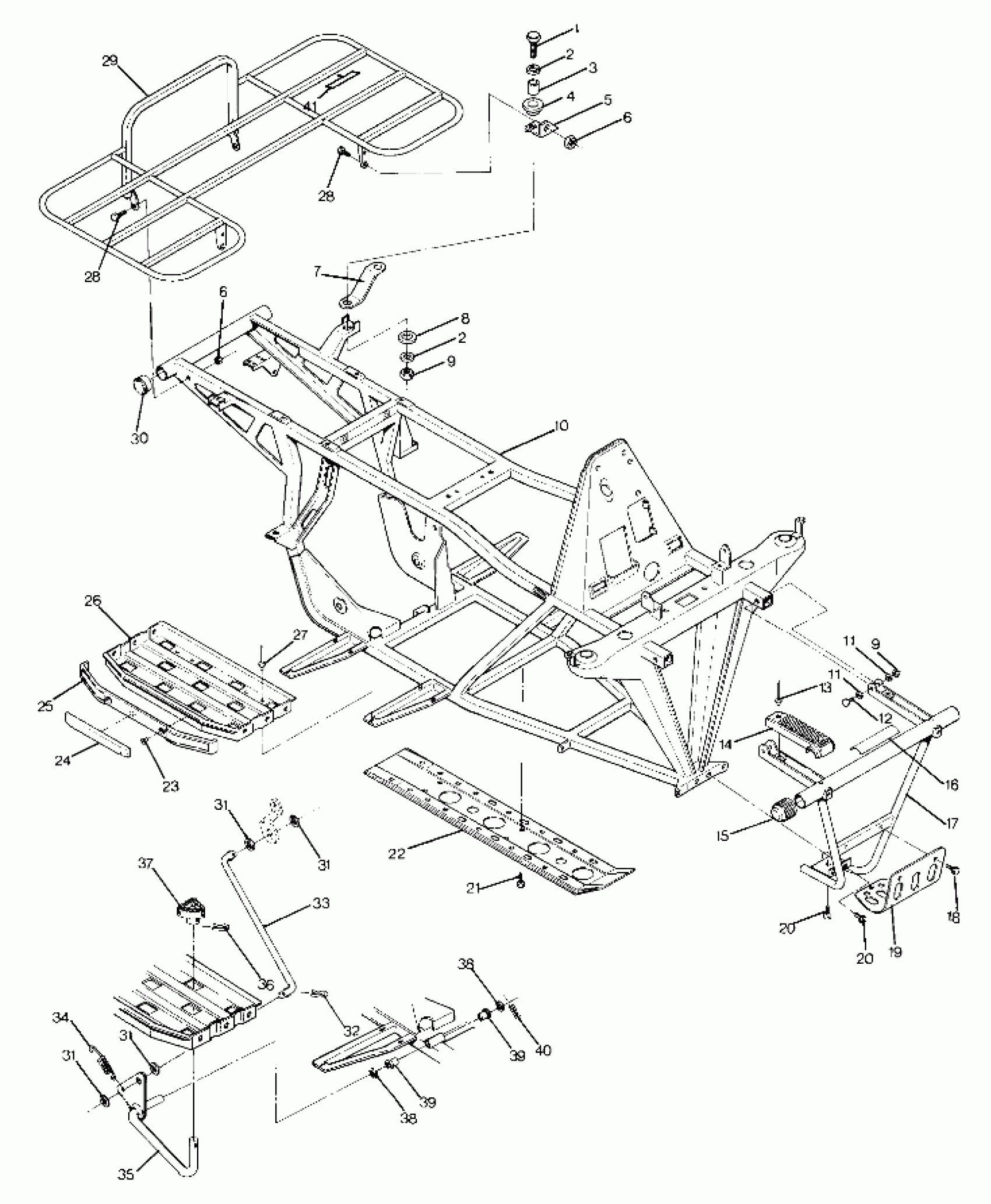

Polaris TRAIL BOSS 250 - W908527 Frame Assembly with Racks (4917711771003A) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5220899-067

5220899

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5220901-067

5220901

Unavailable

6

NUT, NYLOK(10) (Nylok)

7542327

$4.79

6

NUT, NYLOK(10) (Nylok)

7542327

$4.79

7

SUPPORT,R.FENDER Substituted by 5220902-067

5220902

$48.40

8

WASHER,RUBBER

5410436

$1.59

9

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

10

FRAME WELD. [No Longer Available]

1040170-067

Unavailable

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

BOLT(10)

7512329

$3.99

13

RIVET(50)

7621229

Unavailable

14

COVER,BRKT,BUMPER MT.

5431023

$10.71

15

CAP,BUMPER,FR,BLUE(BOSS)

5431013-134

$10.29

16

DECAL,FR.SUSPENSION [No Longer Available]

7072699

Unavailable

17

BUMPER,FRT,(BLACK)

2670106-067

Unavailable

18

SCREW(10)

7512208

$3.99

19

SKID-PLATE,FR.BUMPER

5220981

Unavailable

20

SCREW(10)

7512399

$5.59

20

SCREW(10)

7512399

$5.59

21

BOLT(10)

7512232

$1.49

22

GUARD, ROCK Substituted by 5220922-067

5220922

Unavailable

23

RIVET,SEMI-TUBE,(50)

7661812

Unavailable

24

REFLECTOR AMBER

2670071

Unavailable

25

RUBRAIL,(FOOTREST) Substituted by 5431484

5431019

Unavailable

26

PAD, FOOT, LH. Substituted by 1040274-117

1040189

$81.75

27

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

28

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

28

SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355

7515341

Unavailable

29

RACK,REAR,BLACK Substituted by 2670136-067

2670110-067

Unavailable

30

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

31

WASHER Substituted by 7555827

BBC0173

Unavailable

32

PIN, COTTER(10)

7661103

$4.99

33

ROD,BRAKE LINKAGE Substituted by 5224446

5224394

Unavailable

34

SPRING-EXHAUST(10)

7042029

$4.84

35

ARM, BRAKE PAD Substituted by 1910045-067

1910045

Unavailable

36

PIN, SPIRAL(10)

7661416

Unavailable

37

PEDAL, FOOT Substituted by 5130715-067

5130715

Unavailable

38

WASHER THRUST(10)

7558702

$1.59

38

WASHER THRUST(10)

7558702

$1.59

39

BUSHING-PEDAL PIVOT

5431107

$8.79

39

BUSHING-PEDAL PIVOT

5431107

$8.79

40

COTTER PIN(10)

7661401

$1.49

41

PAD,RACK MOUNT

5810455

$3.19
