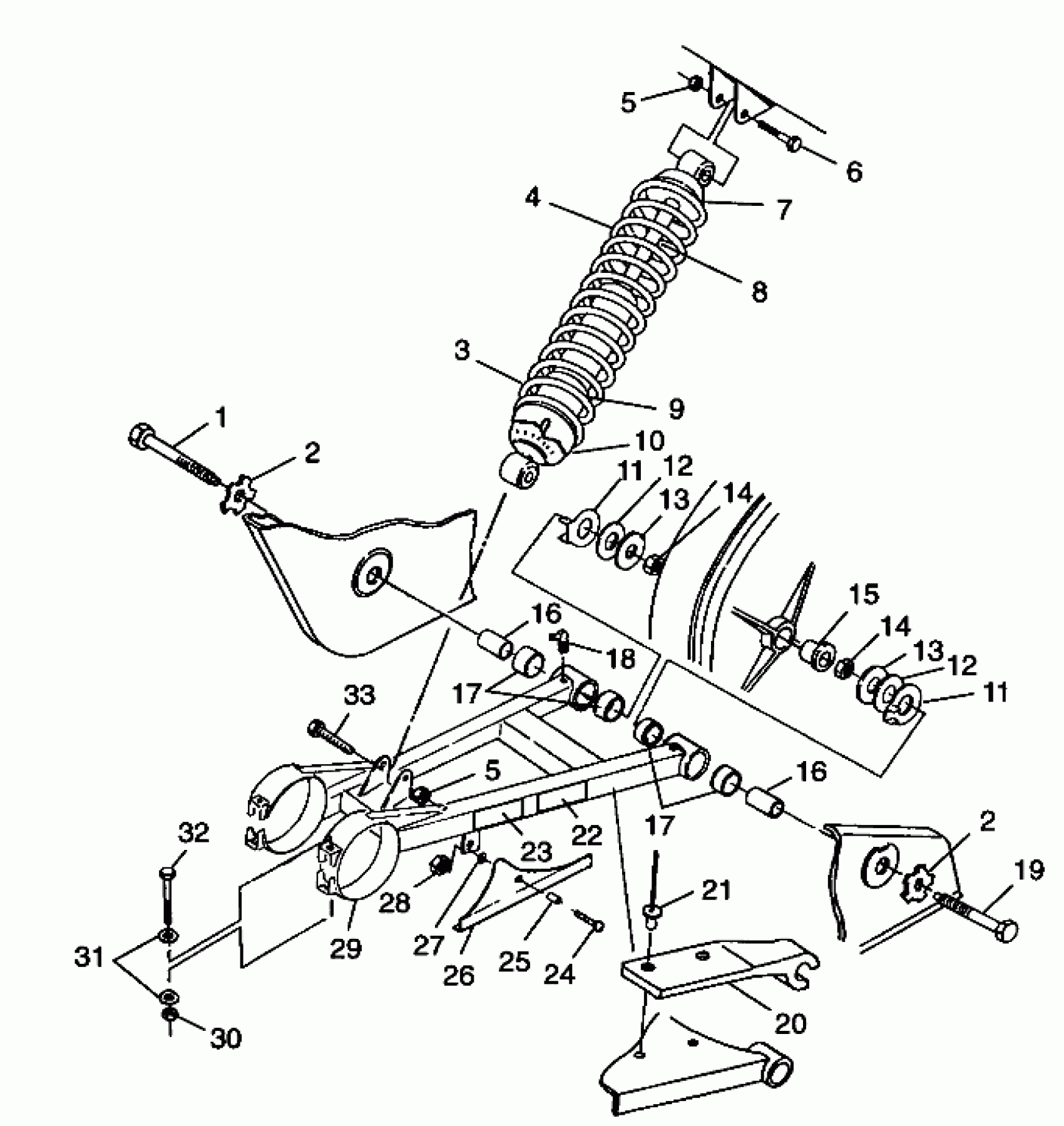

Polaris TRAIL BLAZER - W98BA25C SWING ARM/SHOCK MOUNTING Trail Blazer W98BA25C (4945464546B009) Diagram

#

Description
Price

1

BOLT, SHOULDER

7512701

$23.99

2

PLATE,BOLT LOCK

5220958

$35.99

2

PLATE,BOLT LOCK

5220958

$35.99

3

ADAPTER,SPRING,SEAT

5630351

Unavailable

4

SPRING,R.COMP,BLK

7041470-067

Unavailable

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

BOLT(10)

7515415

$1.49

7

RETAINER, SHOCK

5222118

Unavailable

8

SHOCK,REAR

7041448

$151.99

9

SLEEVE,SPRING PROTECTOR

5431032

$31.99

10

CAM,ADJUSTING SPRING

5630334

$32.37

11

BUSHING,THRUST,STL,WIDE

5241460

Unavailable

11

BUSHING,THRUST,STL,WIDE

5241460

Unavailable

12

BUSHING Substituted by 5433414

5431977

Unavailable

12

BUSHING Substituted by 5433414

5431977

Unavailable

13

WASHER(10)

7555911

$4.79

13

WASHER(10)

7555911

$4.79

14

NUT, LOCK(10)

7542602

Unavailable

14

NUT, LOCK(10)

7542602

Unavailable

15

Bushing, Pivot (See Pg. A35, Ref. 2)

-------

Unavailable

16

BUSHING,SWING ARM

5020793

$8.79

16

BUSHING,SWING ARM

5020793

$8.79

17

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

17

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

18

FITTING, LUBE. (45

7080438

$10.39

19

BOLT, SHOULDER

7512702

Unavailable

20

GUIDE, CHAIN

5431310

$32.37

21

RIVET(50)

7621433

$1.49

22

DECAL,LUBRICATION

7074214

Unavailable

23

DECAL,CHAIN FREE PLAY

7074752

Unavailable

24

SCREW-FLANGED(10)

7515304

$5.59

25

Bushing

5332828

$9.59

26

GUARD, CHAIN

5430776

$35.99

27

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

28

NUT LOCK(10)

7542321

$1.49

29

KIT,SWINGARM UPDATE

2201038

Unavailable

30

NUT, LOCK,(10)

7542503

$10.39

31

WASHER(10)

7555883

$3.99

32

BOLT(10)

7512576

$7.99

33

BOLT(10)

7515438

$4.79
