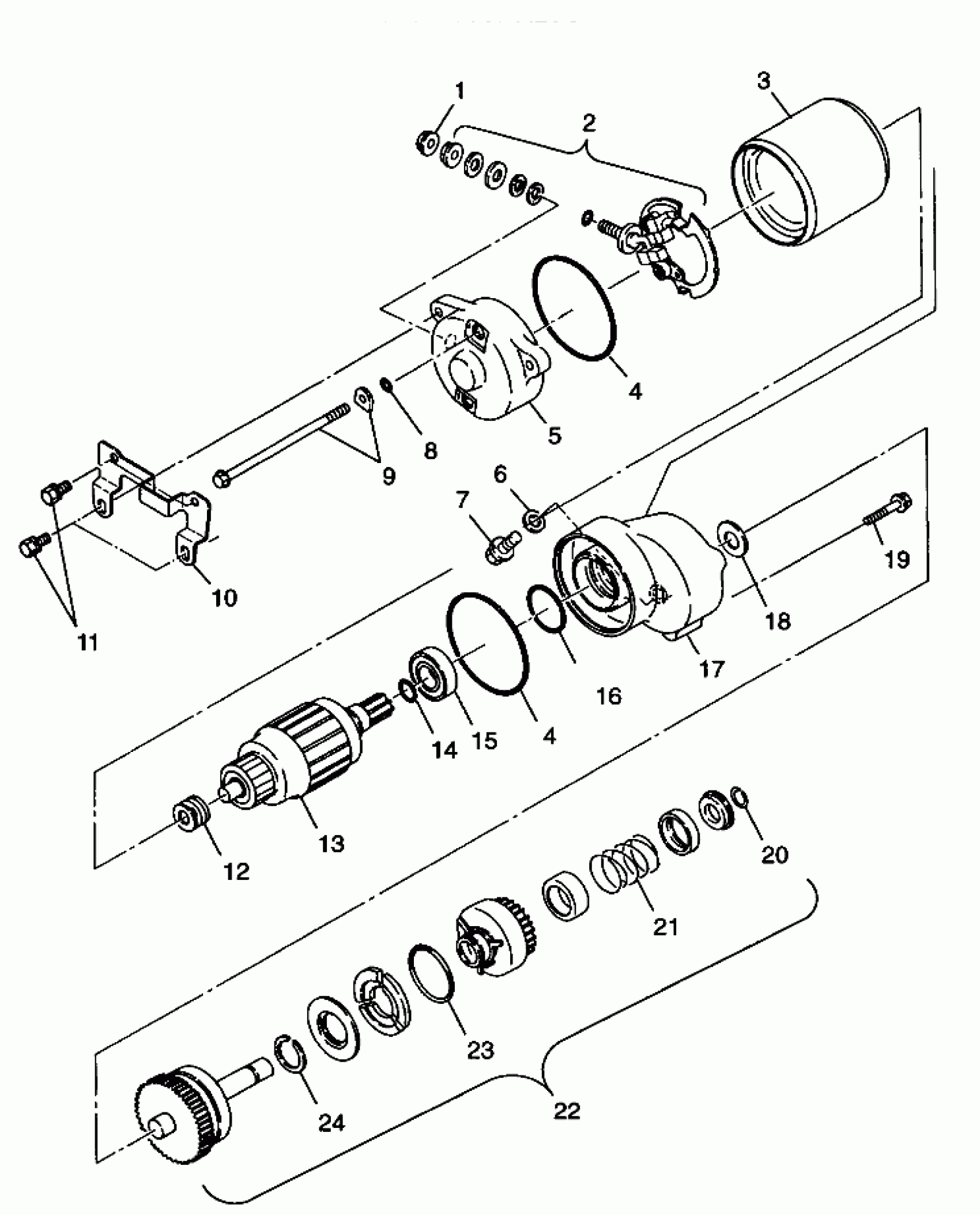

Polaris TRAIL BLAZER - W98BA25C STARTING MOTOR Trail Blazer W98BA25C (4945464546C010) Diagram

#

Description
Price

1

NUT, FLANGE(10)

3083649

$3.97

2

BRUSH,COMPL.2-POLE *

3084406

$125.46

3

MOTOR ASM,STARTER Substituted by 3087043 (Incl. 1-5, 8, 9, 12-18, 20-24)

3085392

Unavailable

3

STARTER MOTOR ASM. * (Incl. 1, 2, 4, 5, 8, 9, 12-17)

3085393

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

COVER,REAR,STARTER(300-400)

3085032

$81.75

6

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

7

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.97

8

O-RING

3084408

Unavailable

9

Bolt, Through

3084407

Unavailable

10

Bracket

3083650

Unavailable

11

BOLT,(10)

3081665

$3.17

12

Washer Set

3083754

$2.38

13

ARMATURE ASM. * (Incl. 14, 15)

3084404

$142.99

14

O RING

3083934

Unavailable

15

BALL BEARING

3083777

$31.75

16

O RING

3083741

$9.37

17

COVER, FRONT (Incl. 16)

3085305

$123.02

18

WASHER, GEARSHAFT Substituted by 7555908

3083737

$3.17

19

BOLT&WASHER ASM.

3082038

$3.97

20

CLIP

3084409

$7.14

21

SPRING, RETURN

3084410

Unavailable

22

SHAFT ASM,GEAR Substituted by 3087030 (Incl. 18, 20, 21, 23, 24)

3085394

$271.10

23

SPRING, WEIGHT

3084411

$15.56

24

CLIP

3084412

$9.52
