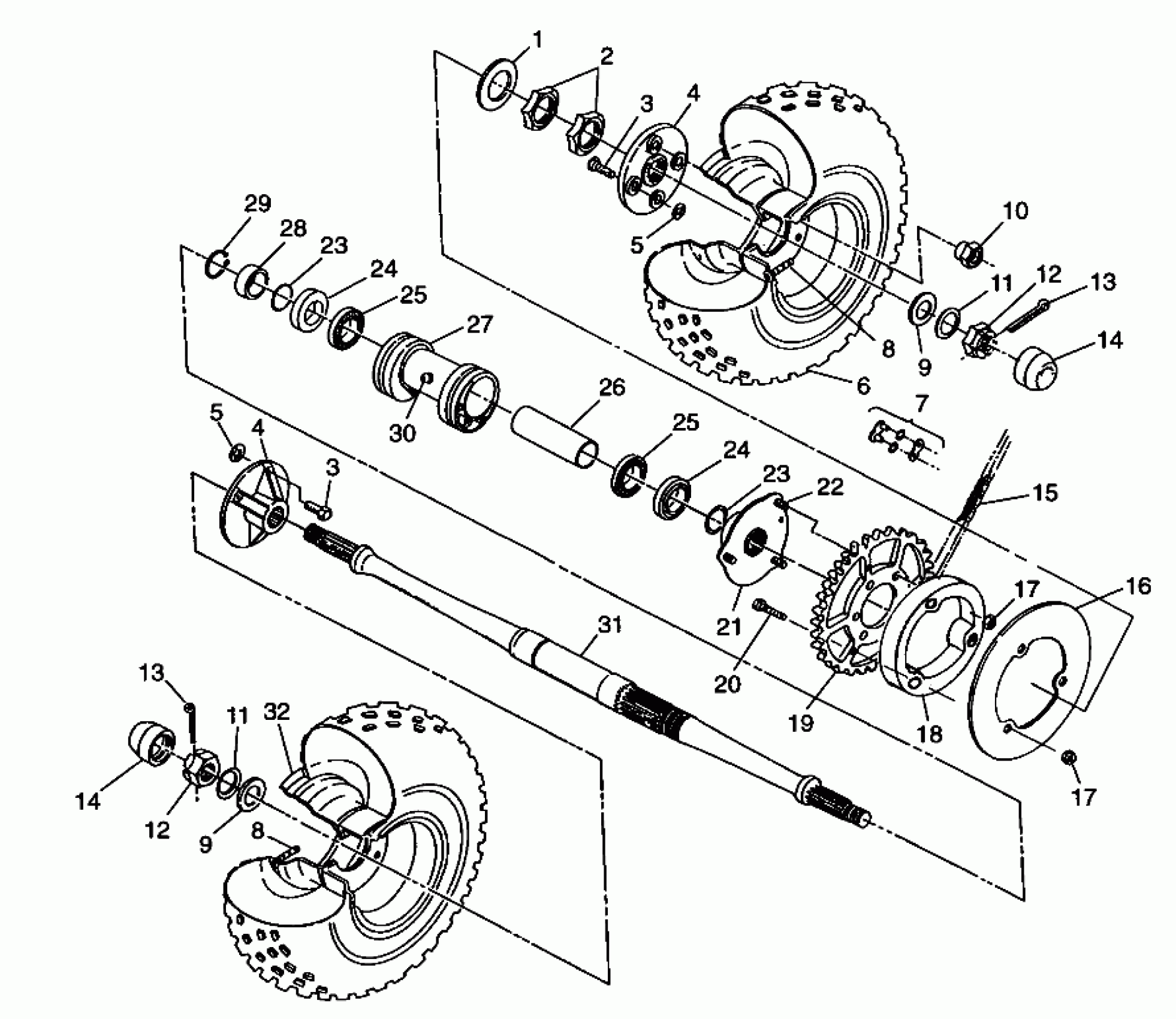

Polaris TRAIL BLAZER - W98BA25C REAR WHEEL DRIVE Trail Blazer W98BA25C (4945464546B014) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

$39.59

3

BOLT, WHEEL(10)

7512673

$3.19

3

BOLT, WHEEL(10)

7512673

$3.19

4

KIT, MACH.HUB

2200341

$93.08

4

KIT, MACH.HUB

2200341

$93.08

5

PUSHNUT, BOLT(10)

7670081

$3.99

5

PUSHNUT, BOLT(10)

7670081

$3.99

6

TIRE,REAR,(4X6) (22X11X10)

5410539

Unavailable

7

CONNECTOR LINK,CHAIN

3225026

Unavailable

8

VALVE-RIM

1525017

$5.59

8

VALVE-RIM

1525017

$5.59

9

WASHER(10)

7555745

$7.19

9

WASHER(10)

7555745

$7.19

10

NUT, WHEEL(10)

7542714

$1.59

11

WASHER, CONE(10)

7555796

$7.99

11

WASHER, CONE(10)

7555796

$7.99

12

NUT, CASTLE(10)

7543005

Unavailable

12

NUT, CASTLE(10)

7543005

Unavailable

13

PIN, COTTER(10)

7661404

$4.79

13

PIN, COTTER(10)

7661404

$4.79

14

DUSTCOVER, HUB

5411164

$24.27

14

DUSTCOVER, HUB

5411164

$24.27

15

CHAIN,88P,(520 O-RING)

3224056-088

Unavailable

16

GUARD,SPKT,42T

5211618-067

Unavailable

17

NUT-LOCK(10)

7542439

$1.49

17

NUT-LOCK(10)

7542439

$1.49

18

SPACER-SPROCKET GUARD

5630586

Unavailable

19

SPROCKET,42T,(ATV)

3222070

Unavailable

20

BOLT(10)

7515540

$4.79

21

SPROCKET HUB ASM. (Incl. 22)

1520170

Unavailable

22

STUD(10)

7515513

$1.49

23

O RING, 1 5/16(10)

5410415

Unavailable

23

O RING, 1 5/16(10)

5410415

Unavailable

24

SEAL, REAR AXLE

3610013

$19.99

24

SEAL, REAR AXLE

3610013

$19.99

25

Bearing, Ball

3515501

$27.99

25

Bearing, Ball

3515501

$27.99

26

TUBE,BEARING SPACER

5010204

Unavailable

27

HOUSING, AXLE

5130663

Unavailable

28

SPACER,BEARING

5010206

$35.99

29

RING, SNAP(10)

7710405

$4.79

30

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

31

AXLE, REAR

5020789

Unavailable

32

RIM,REAR,WHITE

1520183-133

Unavailable
