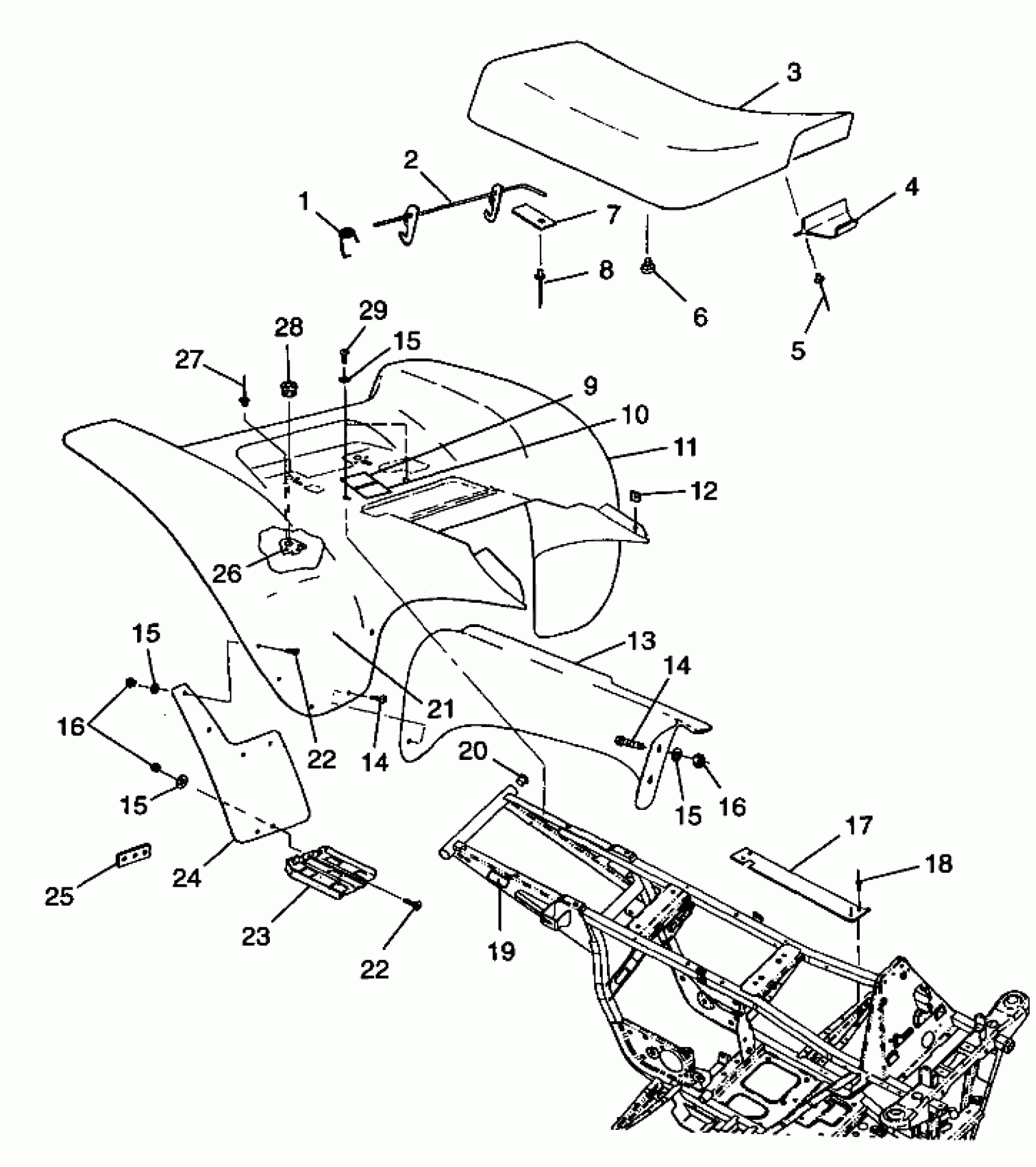

Polaris TRAIL BLAZER - W98BA25C REAR CAB Trail Blazer W98BA25C (4945464546A006) Diagram

#

Description
Price

1

SPRING,LATCH,LIGHT

7041607

Unavailable

2

LATCH,SEAT,BLK. Substituted by 1040412

1040412-067

Unavailable

3

COVER,SEAT,MED.YELLOW (Yellow)

2681769-053

Unavailable

3

SEAT ASM,MED.YELLOW (Yellow)

2682359-053

$524.99

4

TONGUE,SEAT

5431986

$9.59

5

RIVET(50)

7621479

$1.99

6

Bumper, Rubber

5410414

$3.19

7

BRACKET,LEVER RETAINER

5211033

$29.25

8

BLIND RIVET(50)

7621403

$1.49

9

DECAL,CARB.INFO.

7073761

Unavailable

10

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

11

CAB,REAR,WHI,GEN III (White)

5432606-133

Unavailable

12

NUT, SPEED(10)

7670057

$1.49

13

FOIL, FOAM

5811230

Unavailable

13

SHIELD,MUFFLER,BLK Substituted by 2632280

5432278-070

Unavailable

14

Screw

7517264

$3.99

14

Screw

7517264

$3.99

15

WASHER, FLAT(10)

7555859

$1.49

15

WASHER, FLAT(10)

7555859

$1.49

15

WASHER, FLAT(10)

7555859

$1.49

15

WASHER, FLAT(10)

7555859

$1.49

16

NUT-LOCK(10)

7542122

$1.49

16

NUT-LOCK(10)

7542122

$1.49

17

GUARD,CLUTCH,OUTER

5222860-067

$7.06

18

RIVET,INTERLOCK,B(50)

7661638

$1.49

19

REFLECTOR ASM,RED

2670133

$5.75

20

PLUG,ENDCAP(10)

5432047

$4.95

21

Foil, Rear Cab

5810957

Unavailable

22

BOLT, BLACK(10)

7512282

$1.49

22

BOLT, BLACK(10)

7512282

$1.49

23

Footpad (See Pg. A7, Ref. 25)

-------

Unavailable

24

MUDFLAP,LH,REAR

5850122

$13.99

24

MUDFLAP,RH,REAR

5850123

Unavailable

25

BRKT, LH MUD FLAP

5211131-067

Unavailable

26

BRKT,R.HOLDDOWN

5220880

Unavailable

27

RIVET,3/16X.402(50)

7621432

$1.49

28

Grommet

5411042

Unavailable

29

SCREW(10)

7515180

Unavailable
