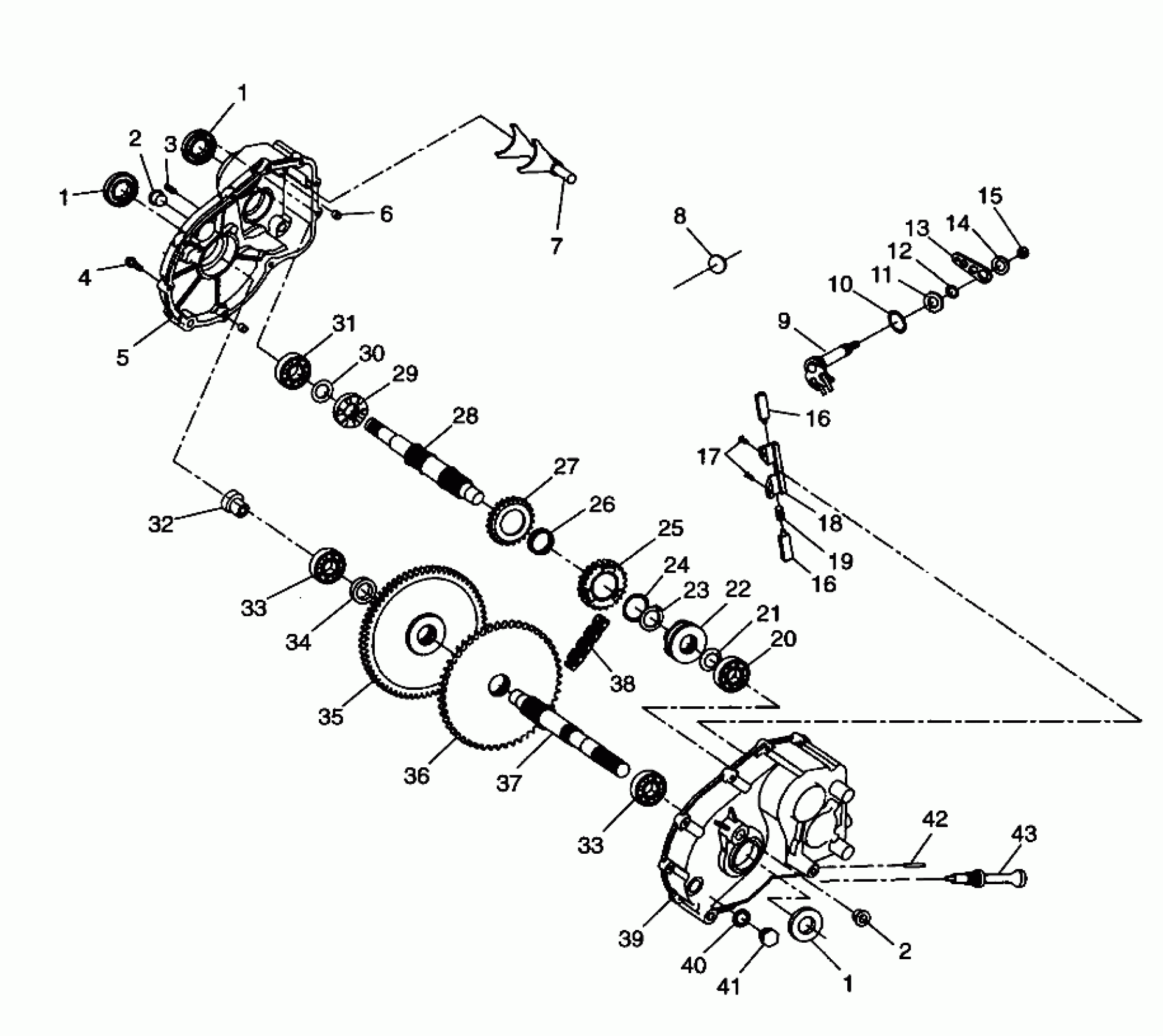

Polaris TRAIL BLAZER - W98BA25C GEARCASE Trail Blazer W98BA25C (4945464546C005) Diagram

#

Description
Price

-

GEARCASE, PRD. (Incl. 1-43)

1341161

Unavailable

1

Seal

3233248

$30.88

1

Seal

3233248

$30.88

1

Seal

3233248

$30.88

2

BUSHING,PIVOT

3233024

Unavailable

2

BUSHING,PIVOT

3233024

Unavailable

3

STUD

3233025

Unavailable

4

Screw

3233026

$6.46

5

GEARCASE, LH.

3233095

$298.99

6

PIPE, KNOCK

3233021

Unavailable

7

FORK,SHIFT,HR

3233231

Unavailable

8

PLUG

3233178

Unavailable

9

SHAFT,SHIFT,WELD/ASM.

3233232

Unavailable

10

O-RING

3233179

Unavailable

11

WASHER

3233119

$7.79

12

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

13

BELLCRANK, HI/REV

3233155

Unavailable

14

Washer

3233054

$6.46

15

Nut

3233055

Unavailable

16

PIN

3233031

$32.11

16

PIN

3233031

$32.11

17

SCREW Substituted by 3233747

3233033

Unavailable

18

BRACKET

3233030

$21.43

19

SPRING

3233233

Unavailable

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

21

WASHER

3233007

Unavailable

22

DOG,FWD.ENGAGE.

3233184

Unavailable

23

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

24

Washer

3233105

$7.19

25

SPKT,19T,FWD.

3233242

Unavailable

26

BEARING, NEEDLE

3233103

$31.99

27

GEAR,REVERSE,19T

3233241

$217.49

28

SHAFT, INPUT

3233181

$214.29

29

DOG,REV.ENGAGE.

3233180

Unavailable

30

WASHER

3233099

Unavailable

31

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

32

BUSHING,SPEEDO.DRIVE

5020741

$9.03

33

BEARING

3233020

$47.99

33

BEARING

3233020

$47.99

34

WASHER

3233108

Unavailable

35

GEAR, 65T

3233109

Unavailable

36

SPROCKET, 51T

3233121

Unavailable

37

SHAFT, OUTPUT

3233112

Unavailable

38

CHAIN,SILENT,60P (11W)

3233111

$79.19

39

GEARCASE,RH

3233238

Unavailable

40

Washer

3233035

Unavailable

41

Plug

3233448

$23.99

42

Vent

3233037

Unavailable

43

Dipstick

3233478

$23.99
