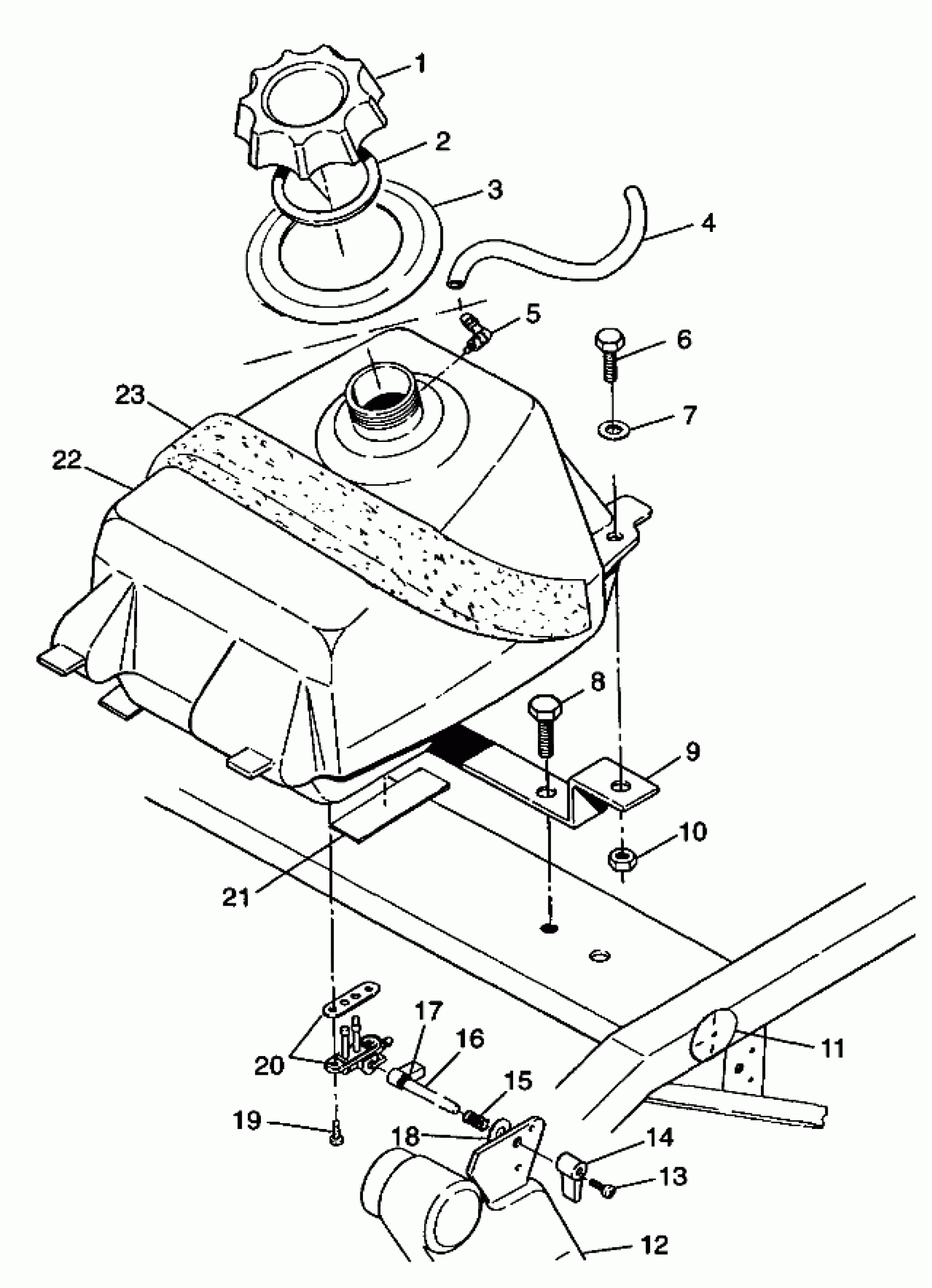

Polaris TRAIL BLAZER - W98BA25C FUEL TANK Trail Blazer W98BA25C (4945464546A012) Diagram

#

Description
Price

1

CAP, GAS, (BLACK)

5430725

$24.27

2

GASKET-GAS CAP

5810144

$5.59

3

GROMMET,FUELTANK

5410842

Unavailable

4

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

5

Vent, Tank

5431053

$19.99

6

SCREW(10)

7512310

$2.39

7

WASHER(10)

7555734

$1.49

8

BOLT(10)

7512232

$1.49

9

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

DECAL,FUEL LEVER

7074637

Unavailable

12

Duct, Inlet Down Tube (See Pg. A32, Ref. 20)

-------

Unavailable

13

SCREW(10)

7511840

Unavailable

14

Lever, Fuel

5431021

$4.79

15

SPRING,LEVER,COMPRESS.

7041209

$7.19

16

EXT.,FUEL LEVER

5431391

$7.19

17

Grommet

5432291

$2.39

18

WASHER(10)

7555726

$1.59

19

SCREW(10)

7515136

$1.49

20

VALVE ASM, FUEL (Incl. Gasket)

7051006

$51.99

20

Gasket, Fuel Valve

5810859

$6.39

21

PAD,BULK FUEL

8360026

Unavailable

22

TANK,FUEL Substituted by 2511323

5430968

Unavailable

23

Foam, Seal

5811052

Unavailable
