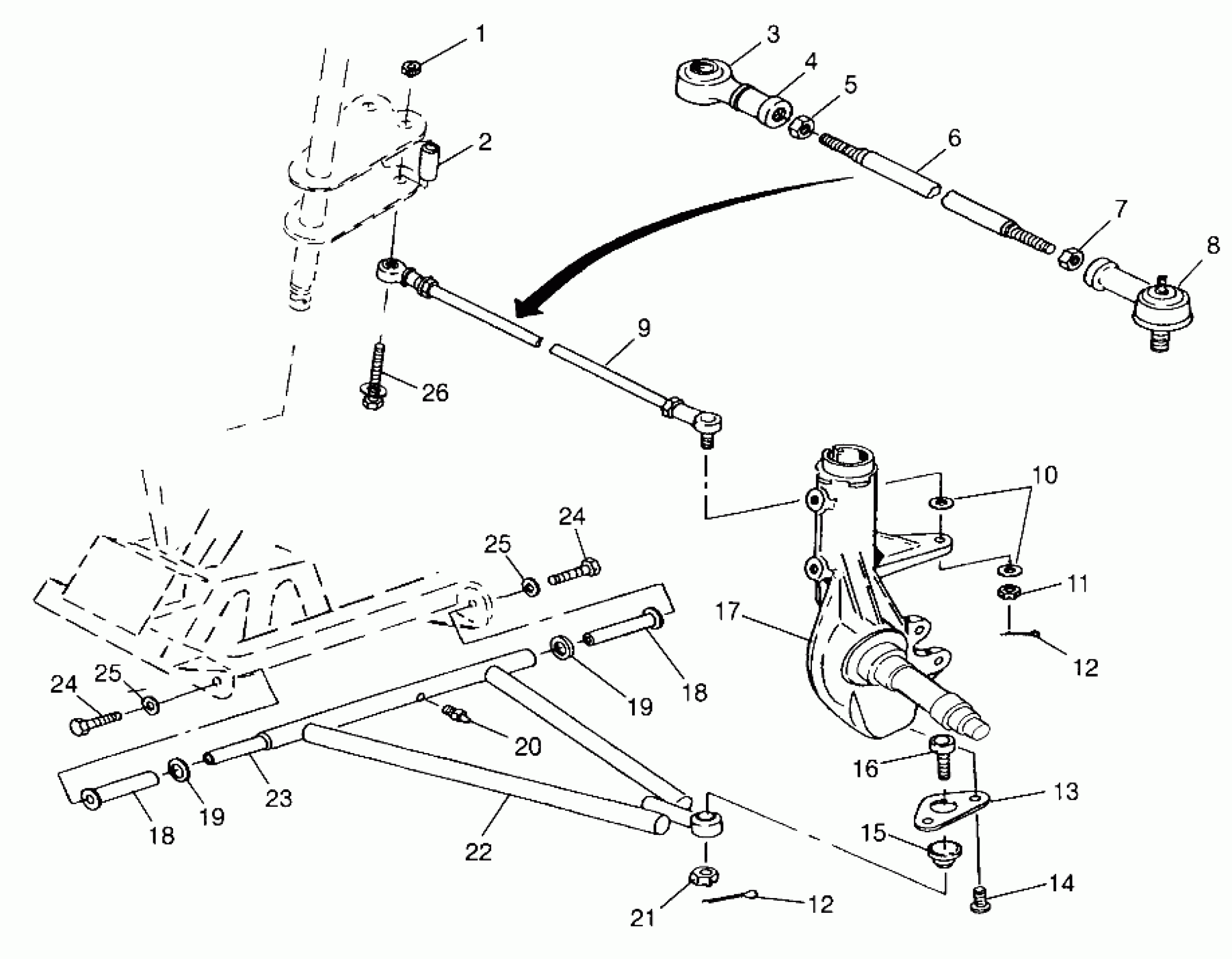

Polaris TRAIL BLAZER - W98BA25C A-ARM/STRUT MOUNTING Trail Blazer W98BA25C (4945464546B004) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

2

BUSHING

5333367

$6.59

3

SEAL,BOOT,ROD END,1/2 IN

5411291

$11.32

4

ROD END Substituted by 7061034

7061019

$60.70

5

NUT-JAM(10)

7542711

$2.38

6

ROD,TIE

5020927

$44.51

7

NUT,LH,JAM(10)

7547028

$2.38

8

ROD END,LH,W/FTG. Substituted by 7061033

7061018

$60.70

9

TIEROD ASM. Substituted by 1820566

1822477

Unavailable

10

WASHER(10)

7555806

$0.79

11

NUT, CASTLE(10)

7546904

$4.76

12

PIN COTTER(10)

7661203

$1.19

12

PIN COTTER(10)

7661203

$1.19

13

BRACKET,BALLJOINT

5240717

Unavailable

14

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

15

Boot, Rubber

5410548

$4.84

16

BALLJOINT,HI-ANGLE Substituted by 7080927

7080673

$28.32

17

Support, Strut and Spindle (See Pg. A17, Ref. 16)

----

Unavailable

18

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

18

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

19

BUSHING,A-ARM SPACER(10)

5020677

$10.32

19

BUSHING,A-ARM SPACER(10)

5020677

$10.32

20

ZERK,FITTING,THREADED(10)

7080433

$1.19

21

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

22

KIT,A-FRAME,LH Substituted by 2201601

2200560

$149.99

22

KIT,A-FRAME,RH Substituted by 2201602

2200561

$149.99

23

Shaft, A-Arm

5020681

$33.24

24

BOLT(10) Substituted by 7512492

7515458

$1.19

24

BOLT(10) Substituted by 7512492

7515458

$1.19

25

WASHER(10)

7552603

$0.79

25

WASHER(10)

7552603

$0.79

26

SCREW(10)

7515554

Unavailable
