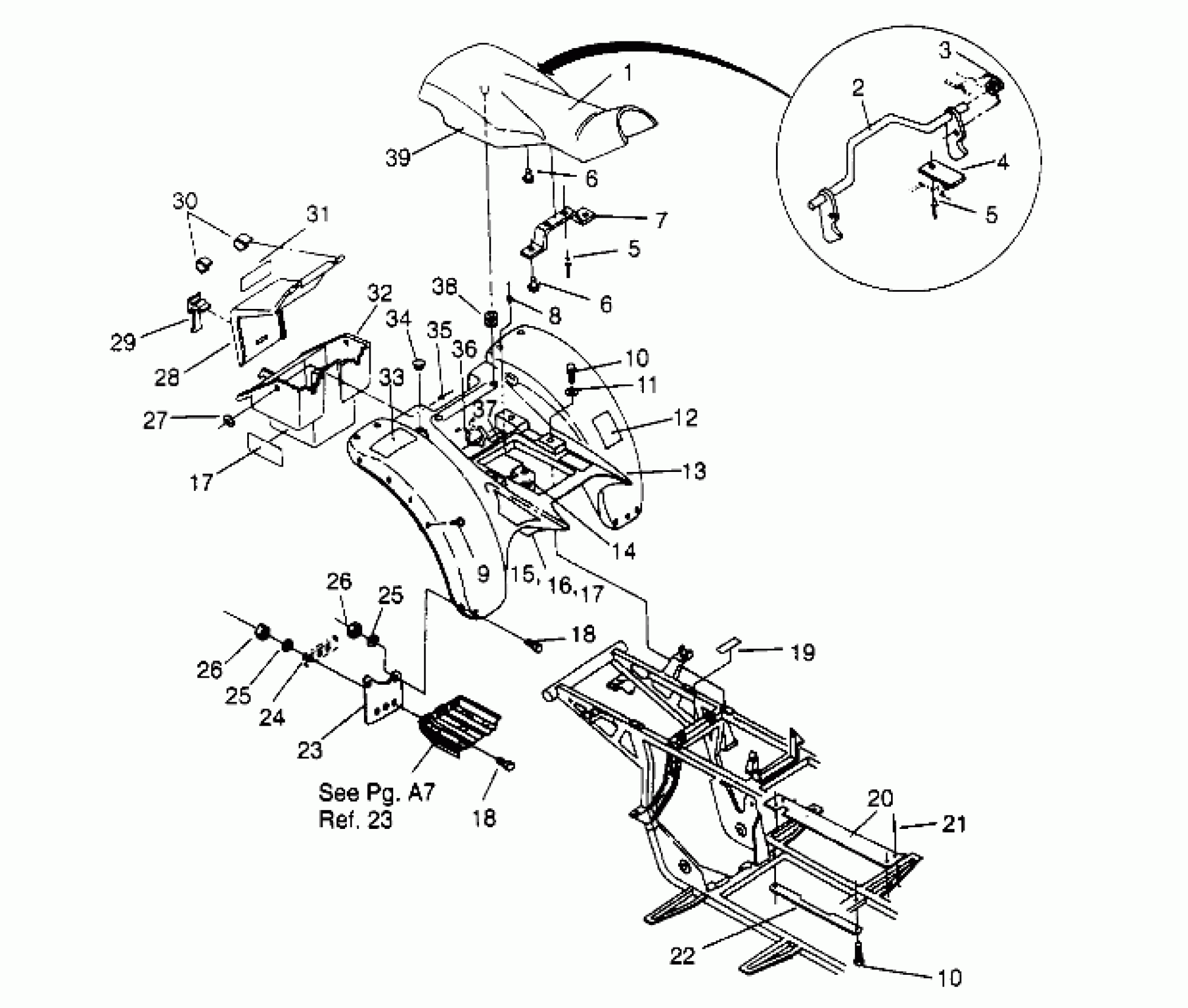

Polaris TRAIL BLAZER - W947221 REAR CAB ASSEMBLY Trail Blazer W947221 (4926832683A006) Diagram

#

Description
Price

1

SEAT ASM,(ATV),PURP.VELVET Substituted by 2682357-194

2681724-194

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$34.99

5

BLIND RIVET(50)

7621403

$1.19

5

BLIND RIVET(50)

7621403

$1.19

6

Bumper, Rubber

5410414

$3.17

6

Bumper, Rubber

5410414

$3.17

7

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

8

RIVET,3/16X.402(50)

7621432

$1.19

9

CLIP, PUSH-ON(10)

7670052

$1.98

10

BOLT(10)

7512232

$1.19

10

BOLT(10)

7512232

$1.19

11

WASHER,WROUGHT(10)

7558302

$1.59

12

DECAL(CPSC),TIRE PRESS(T.B.) [No Longer Available]

7072793

Unavailable

13

CAB,REAR,WHITE

5430991-133

Unavailable

14

BRKT,R.HOLDDOWN

5220880

Unavailable

15

TAPE,FOIL,R.CAB (Inside)

5810416

Unavailable

16

TAPE, FOIL

5810424

Unavailable

17

TAPE, FOIL

5810310

Unavailable

17

TAPE, FOIL

5810310

Unavailable

18

BOLT, BLACK(10)

7512282

Unavailable

18

BOLT, BLACK(10)

7512282

Unavailable

19

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

20

GUARD,CLUTCH,OUTER

5222860-067

$7.06

21

RIVET-3/16-.090-.290

7661637

$1.19

22

GUARD,CLUTCH,INNER

5211359-067

Unavailable

23

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

23

MUDFLAP,RH,LOW.REAR

5850111

Unavailable

24

BRKT, LH MUD FLAP

5211131-067

Unavailable

25

WASHER, FLAT(10)

7555859

$1.19

25

WASHER, FLAT(10)

7555859

$1.19

26

NUT-LOCK(10)

7542122

$1.19

26

NUT-LOCK(10)

7542122

$1.19

27

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

28

LID,TOOLBOX,(WHITE)

5430769-133

Unavailable

29

STRAP,TOOL COMPARTMENT

5410425

Unavailable

30

CLIP, LID HINGE(10)

7670050

Unavailable

31

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

32

BOX,TOOL COMP.

5430882

Unavailable

33

DECAL(CPSC),WARN,HVY.LOAD [No Longer Available]

7072786

Unavailable

34

PLUG, RACK HOLE

5430887

Unavailable

35

RIVET(50)

7621462

$1.19

36

RETAINER,TOOL POUCH

7080385

Unavailable

37

DECAL,CARB.INFO.

7073761

Unavailable

38

GROMMET

5410413

Unavailable

39

COVER,SEAT,PURP.VELVET

2681723-194

Unavailable
