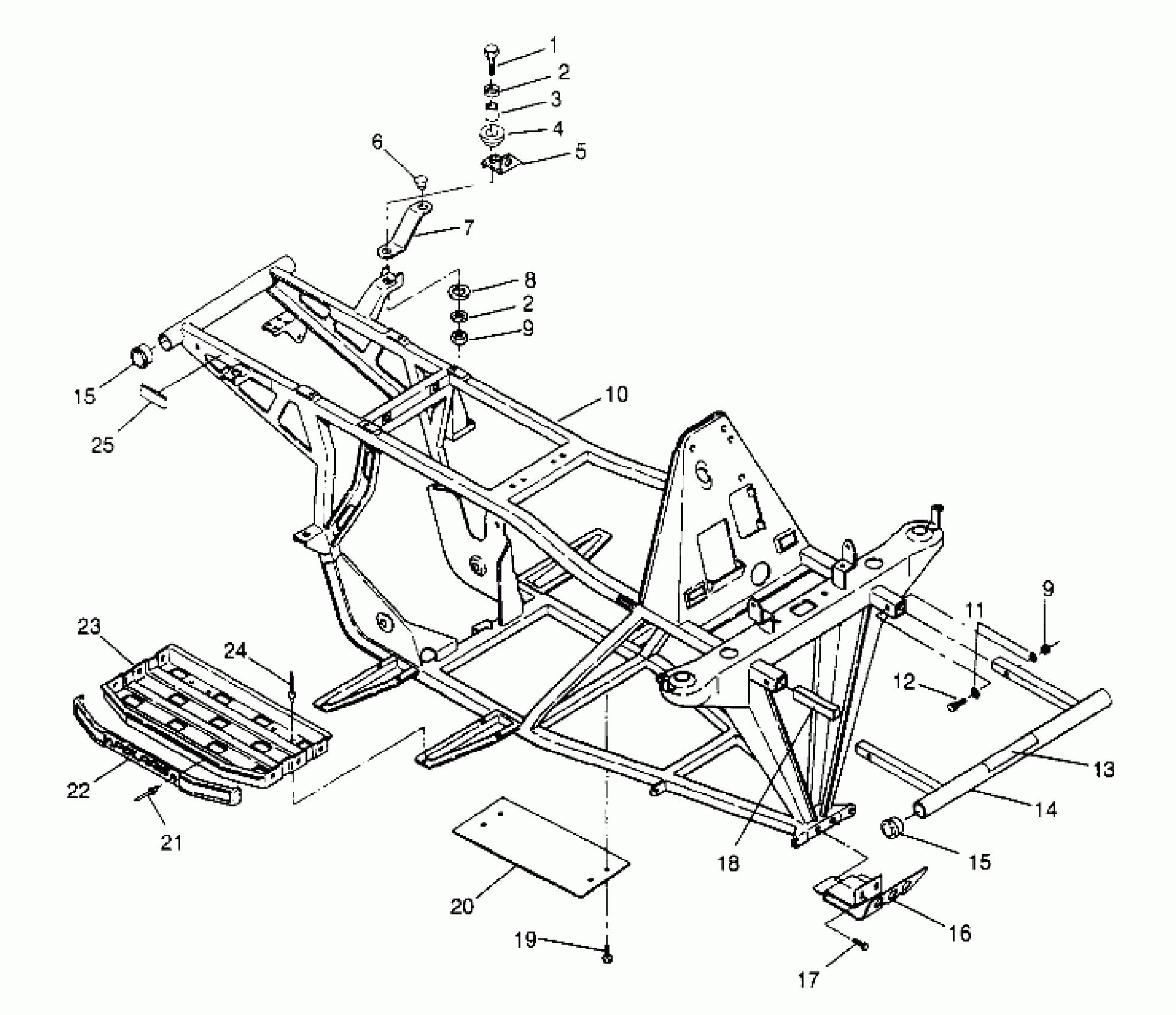

Polaris TRAIL BLAZER - W947221 FRAME ASSEMBLY Trail Blazer W947221 (4926832683A007) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

6

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

7

SUPPORT,R.FENDER

5220902-067

$48.40

8

WASHER,RUBBER

5410436

$1.59

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

FRAME,MAIN,BLK. [No Longer Available]

1040336-067

$695.22

11

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

12

BOLT(10)

7512329

$3.99

13

DECAL, F.SUSP.

7073455

Unavailable

14

BUMPER, FRONT

2670124-067

$34.92

15

PLUG, BUMPER CAP(10) Substituted by 5432047

5410794

$4.92

15

PLUG, BUMPER CAP(10) Substituted by 5432047

5410794

$4.92

16

BRKT,LOW,F.BUMPER

2670126-067

Unavailable

17

SCREW(10)

7512399

$5.59

18

PLUG, FRAME (Foam)

5810467

Unavailable

19

BOLT(10)

7512232

$1.49

20

GUARD, ROCK

5211257-067

Unavailable

21

RIVET,(50)

7661825

$1.49

22

Trim, Footrest

5431484

Unavailable

23

FOOTPAD,LH,SILVER

1040274-117

$82.39

23

FOOTPAD,RH

1040417-117

Unavailable

24

RIVET-3/16-.090-.290

7661637

$1.49

25

REFLECTOR ASM,RED

2670133

$5.75
