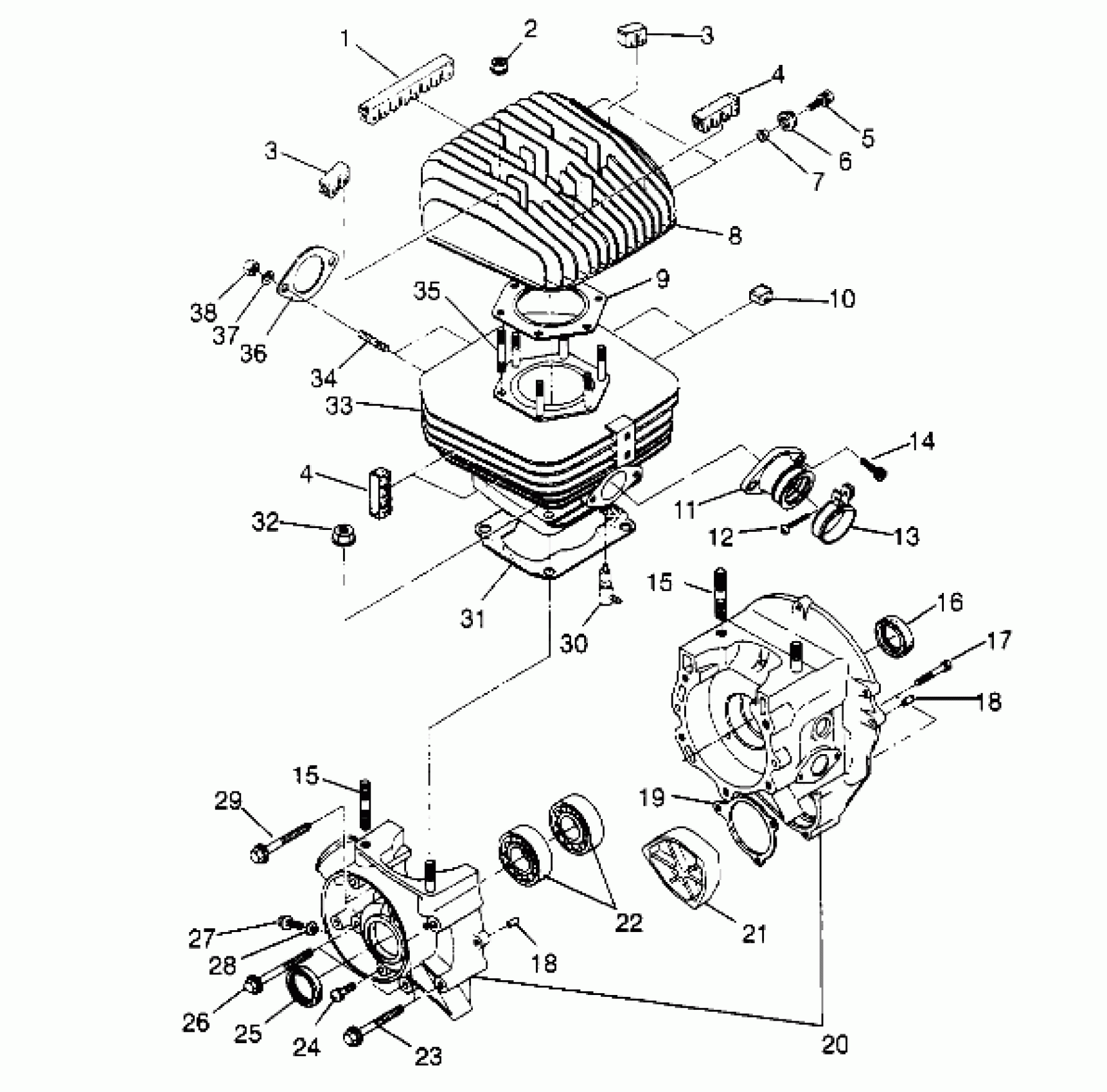

Polaris TRAIL BLAZER - W947221 CRANKCASE and CYLINDER Trail Blazer W947221 (4926832683C005) Diagram

#

Description
Price

1

FIN DAMPER #3

3083931

Unavailable

2

NUT-FLANGE(10)

3082910

$2.39

3

FIN DAMPER #4

3083932

$18.23

3

FIN DAMPER #4

3083932

$18.23

4

FIN DAMPER #1

3083929

Unavailable

4

FIN DAMPER #1

3083929

Unavailable

5

BOLT&WASHER

3083730

$4.79

6

MOUNTING,RUBBER

3083731

$4.95

7

COLLAR

3083732

Unavailable

8

HEAD, CYLINDER Substituted by 3086841

3083620

Unavailable

9

GASKET, HEAD

3083768

Unavailable

10

FIN DAMPER #2

3083930

Unavailable

11

ADAPTER, CARB. Substituted by 3085013

3083412

$100.38

12

SCREW,(10) (Pan Head)

3081497

$2.39

13

BAND-CARB MTG. (Incl. 12)

3082257

Unavailable

14

Bolt, Allen

3081330

$3.99

15

STUD Substituted by 3085713

3080746

Unavailable

15

STUD Substituted by 3085713

3080746

Unavailable

16

SEAL,OIL Substituted by 3082162

3080006

$38.60

17

BOLT&WASHER ASM.

3082038

$3.99

18

PIN, DOWEL Substituted by 3086838

3080103

$7.14

18

PIN, DOWEL Substituted by 3086838

3080103

$7.14

19

GASKET

3083835

Unavailable

20

CRANKCASE ASM. (Incl. 15,16,18,22,23,25-29)

3084579

$504.99

21

COVER, BLIND

3083834

Unavailable

22

Bearing, Ball

3084580

$31.99

23

BOLT W/WASHER

3080739

$6.39

24

SCREW&WASHER ASM.

3081635

Unavailable

25

SEAL, OIL, PTO (PTO)

3084581

$28.32

26

BOLT&WASHER ASSY.

3083615

Unavailable

27

PLUG, DRAIN

3083767

Unavailable

28

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

29

BOLT AND WASHER ASSY.

3082096

$1.49

30

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

31

GASKET,CYLINDER

3083733

$40.46

32

NUT-FLANGE(10)

3082911

$1.99

33

CYLINDER Substituted by 3085541

3083769

Unavailable

34

STUD (10)

3080016

$5.75

35

Stud

3080283

$12.94

36

GASKET, EXHAUST

3083770

Unavailable

37

WASHER LOCK ,(10)

3080530

$3.19

38

NUT(10)

3080285

Unavailable
