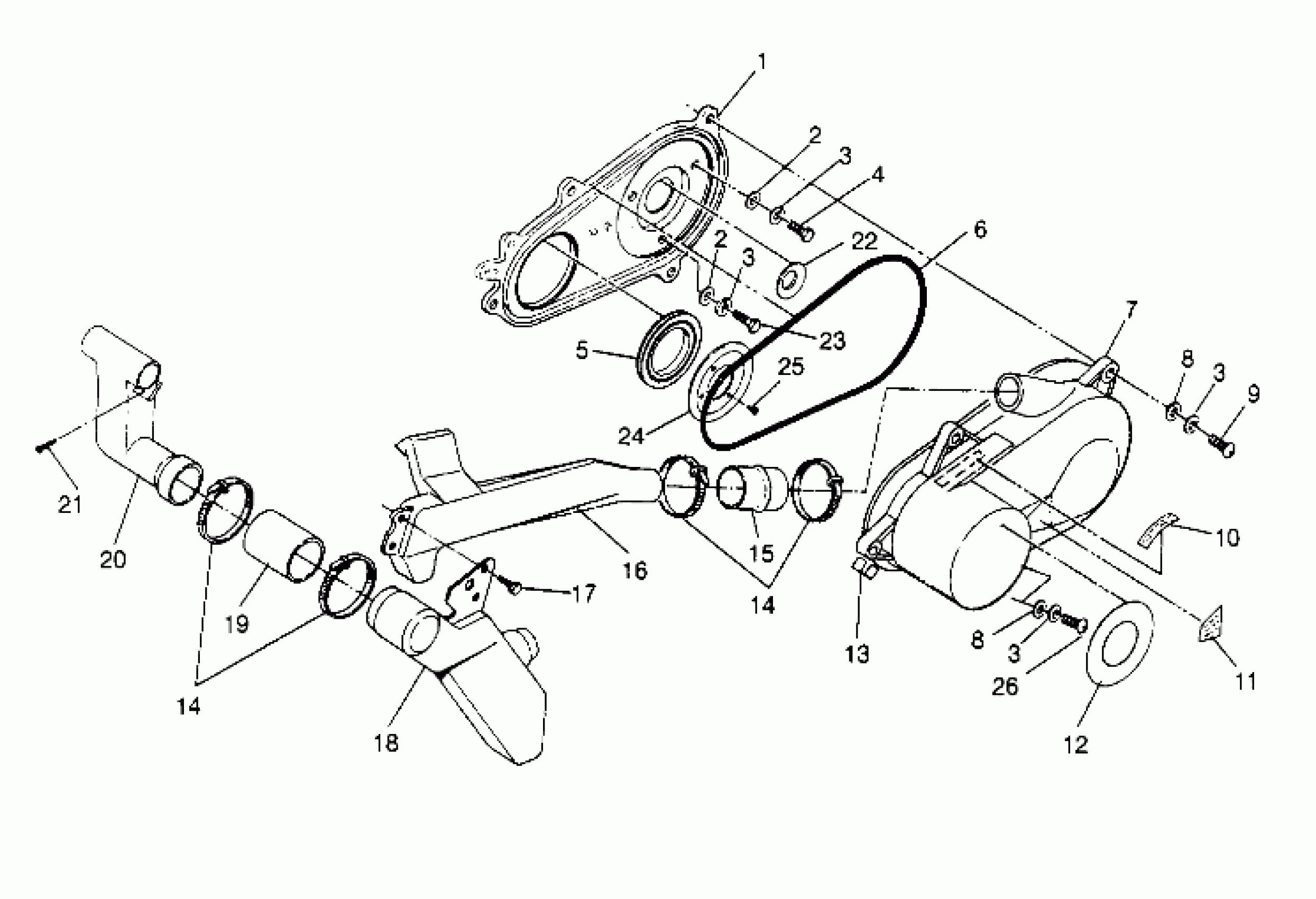

Polaris TRAIL BLAZER - W947221 CLUTCH COVER ASSEMBLY Trail Blazer W947221 (4926832683B011) Diagram

#

Description
Price

1

COVER,CLUTCH(INNER PVT) Substituted by 5431716

5431569

$309.99

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

3

WASHER(10)

7552605

$5.69

3

WASHER(10)

7552605

$5.69

3

WASHER(10)

7552605

$5.69

3

WASHER(10)

7552605

$5.69

4

SCREW(10)

7515159

$4.76

5

SEAL,COVER CASE

5410749

Unavailable

6

SEAL,CLUTCHCOVER

5521301

$32.37

7

COVER, CLUTCH,FRONT

5430771

Unavailable

8

WASHER(10) Substituted by 7558301

7555776

$1.19

8

WASHER(10) Substituted by 7558301

7555776

$1.19

9

BOLT(10)

7512281

$3.97

10

DECAL(CPSC),CLUTCH COVER Substituted by 7074946

7072787

Unavailable

11

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

12

DECAL, PVT [No Longer Available]

7072386

Unavailable

13

CLIP,CLUTCH COVER(10)

7670051

Unavailable

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

BOOT,CLUTCH INTAKE

5410421

$11.32

16

DUCT, AIR OUTLET

5431010

Unavailable

17

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

18

DUCT,INLET DOWN TUBE

5431006

$81.75

19

BOOT, INTAKE

5410509

Unavailable

20

DUCT,INLET TOP

5431007

Unavailable

21

SCREW(10)

7512017

$4.76

22

SEAL,COVER CASE

5410489

$13.75

23

BOLT(10)

7512276

$4.76

24

BRKT,RETAINER SEAL

5222877-067

Unavailable

25

SEALER,10.3 OZ,SILICONE#732, Substituted by 8560054

2870661

Unavailable

25

Asm., Screw and Washer (See Pg. A32, Ref. 24)

----

Unavailable

26

SCREW(10)

7512222

$2.38
