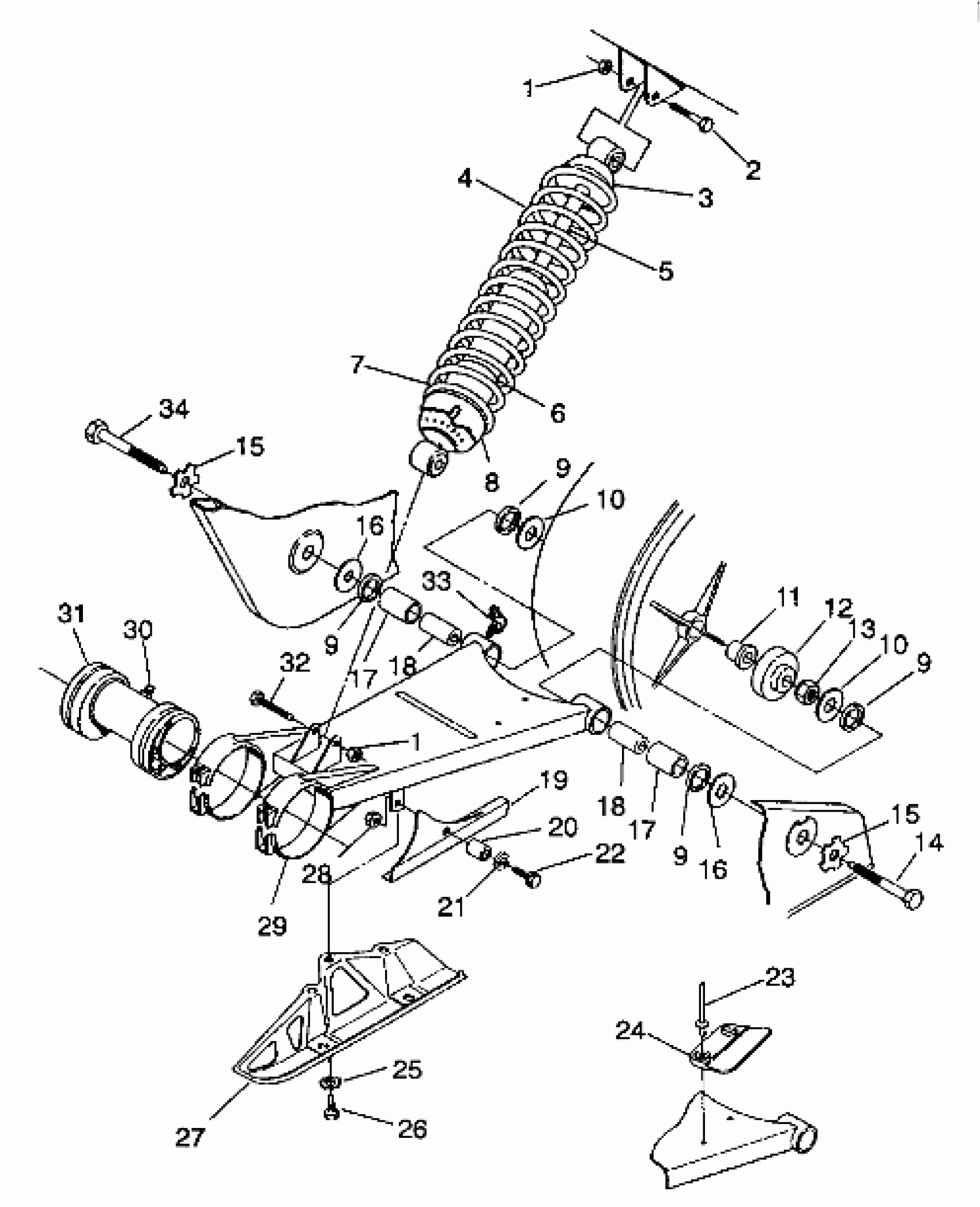

Polaris TRAIL BLAZER - W937221 SWING ARM/SHOCK MOUNTING Trail Blazer W937221 (4924082408018A) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

2

BOLT(10)

7515415

$1.49

3

RETAINER, SHOCK

5222118

Unavailable

4

SPRING,COMP,REAR

7041204-067

$64.99

5

SHOCK, REAR Substituted by 7041448

7041218

$146.71

6

SLEEVE,SPRING PROTECTOR

5431032

$31.99

7

ADAPTER,SPRING,SEAT

5630351

Unavailable

8

CAM,ADJUSTING SPRING

5630334

$32.37

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

10

WASHER(10)

7555779

Unavailable

10

WASHER(10)

7555779

Unavailable

11

Support (See pg.28, Ref.3)

-------

Unavailable

12

ROLLER,CHAIN GUIDE

5431003

Unavailable

13

NUT,CROWN LOCK(10)

7542601

Unavailable

14

BOLT, SHOULDER

7512702

Unavailable

15

PLATE,BOLT LOCK

5220958

$35.99

15

PLATE,BOLT LOCK

5220958

$35.99

16

BUSHING, MACH.(10)

7555752

Unavailable

16

BUSHING, MACH.(10)

7555752

Unavailable

17

BEARING,SWINGARM

3576512

Unavailable

17

BEARING,SWINGARM

3576512

Unavailable

18

BUSHING,SWING ARM

5010255

Unavailable

18

BUSHING,SWING ARM

5010255

Unavailable

19

GUARD,CHAIN(MODIFIED) Substituted by 5430776

5430952

$34.74

20

Bushing

5332828

$9.59

21

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

22

SCREW-FLANGED(10)

7515304

$5.59

23

RIVET(50)

7621433

$1.49

24

GUIDE, CHAIN

5431017

$1.83

25

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

26

SCREW(10)

7512252

Unavailable

27

GUARD, SWING ARM

1040166-067

Unavailable

28

NUT LOCK(10)

7542321

$1.49

29

ARM, SWING

1580048-067

Unavailable

30

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

31

Housing, Axle (See pg.25, Ref.24)

-------

Unavailable

32

BOLT(10)

7515438

$4.79

33

FITTING, LUBE.

7080438

$10.39

34

BOLT, SHOULDER

7512701

$23.99
