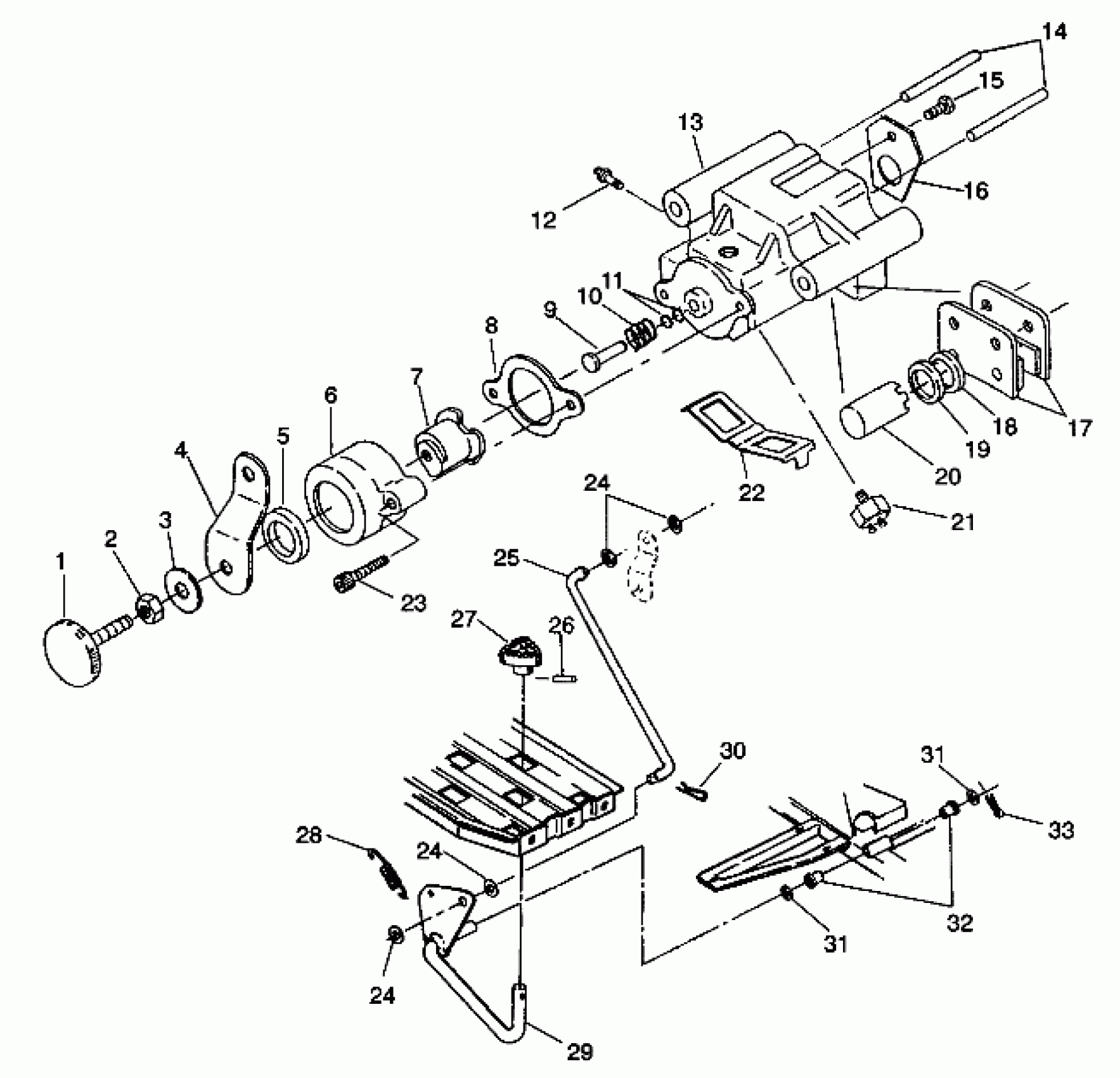

Polaris TRAIL BLAZER - W937221 REAR BRAKE/FOOT PEDAL ASSEMBLY Trail Blazer W937221 (4924082408023A) Diagram

#

Description
Price

1

KNOB,BRAKE ADJUSTOR

1930691

Unavailable

2

NUT(10)

7542129

$4.79

3

WASHER, SPRING(10)

7555828

Unavailable

4

ARM,BRAKE,CALIPER

5222664

Unavailable

5

SEAL, BRAKE

3610026

$7.99

6

RAMP,STATION.BRAKE Substituted by 2200391

5630395

Unavailable

7

RAMP,MOVE.BRAKE Substituted by 2200391

5630394

Unavailable

8

GASKET, BRAKE

5830009

$9.99

9

PIN, BRAKE ADJUSTER

5020523

Unavailable

10

SPRING,BRAKE,COMP.

7041219

$24.99

11

O RING-.364X.504X.07

5410542

Unavailable

12

SCREW,BLEEDER

7080352

$3.19

13

CALIPER,REAR BRAKE

5130714

Unavailable

13

CALIPER, R.BRAKE

1910073

Unavailable

14

PIN, DOWEL(10)

7661820

$13.99

15

SCREW, SEMS(10)

7512020

$2.39

16

PLATE, PIN

5211143

Unavailable

17

KIT,BRAKEPAD,REAR (Incl. Pins)

2200464

$31.99

18

RING,SQUARE,(.120) (.120 sq.)

5410518

$7.19

19

RING, SQUARE (.066 sq.)

5410519

Unavailable

20

PISTON, BRAKE

5020521

Unavailable

21

SWITCH, STOPLIGHT

4110089

Unavailable

22

SPRING,ANTI-RATTLE

5222232

Unavailable

23

BOLT, SOC. HD.(10)

7512292

Unavailable

24

WASHER(10)

7555827

$3.99

24

WASHER(10)

7555827

$3.99

24

WASHER(10)

7555827

$3.99

25

ROD,BRAKE LINKAGE Substituted by 5224446

5224394

Unavailable

26

PIN, SPIRAL(10)

7661416

Unavailable

27

PEDAL,FOOT

5130715-067

Unavailable

28

SPRING-EXHAUST(10)

7042029

$4.84

29

PEDAL, BRAKE

1910045-067

$11.33

30

PIN, COTTER(10)

7661103

$4.99

31

WASHER THRUST(10)

7558702

$1.59

31

WASHER THRUST(10)

7558702

$1.59

32

BUSHING-PEDAL PIVOT

5431107

$8.79

33

COTTER PIN(10)

7661401

$1.49
