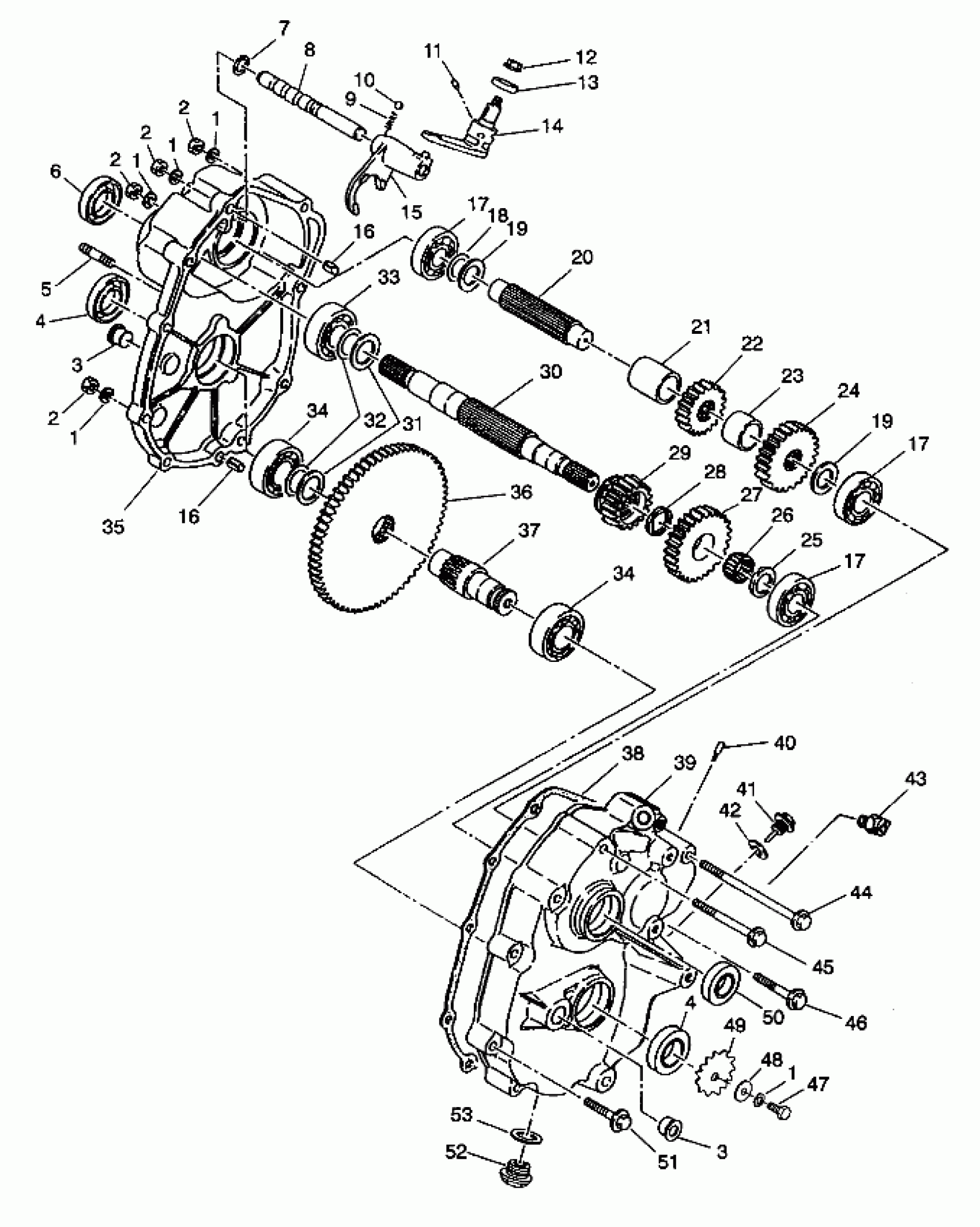

Polaris TRAIL BLAZER - W937221 GEARCASE ASSEMBLY Trail Blazer W937221 (4924082408027A) Diagram

#

Description
Price

-

TRANSMISSION(T.B.) (Incl. 1-53)

1341064

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

1

WASHER, SPRING(10)

3231545

Unavailable

2

NUT(10)

3231604

Unavailable

2

NUT(10)

3231604

Unavailable

2

NUT(10)

3231604

Unavailable

2

NUT(10)

3231604

Unavailable

3

SUPPORT

3231517

Unavailable

3

SUPPORT

3231517

Unavailable

4

SEAL, OIL

3231516

Unavailable

4

SEAL, OIL

3231516

Unavailable

5

STUD

3231608

Unavailable

6

SEAL, OIL

3231507

Unavailable

7

C-CLIP

3231591

Unavailable

8

SHAFT, SHIFT

3231589

$16.63

9

SPRING

3231550

$1.49

10

BALL, STEEL

3231502

Unavailable

11

PIN

3231607

Unavailable

12

NUT, LOCK

3231555

Unavailable

13

SEAL, OIL

3231521

Unavailable

14

SHAFT, SELECT

3231584

Unavailable

15

SHIFTER

3231501

$78.39

16

PIPE, KNOCK

3231543

$1.41

16

PIPE, KNOCK

3231543

$1.41

17

BEARING

3231511

Unavailable

17

BEARING

3231511

Unavailable

17

BEARING

3231511

Unavailable

18

SHIM 20, 0.3

3231564

Unavailable

18

SHIM 20, 0.1

3231565

Unavailable

19

Washer

3231513

$4.39

19

Washer

3231513

$4.39

20

SHAFT

3231512

$34.70

21

COLLAR

3231590

Unavailable

22

GEAR (18)

3231510

$29.59

23

COLLAR

3231587

Unavailable

24

GEAR

3231529

$55.54

25

WASHER

3231527

Unavailable

26

BEARING,NEEDLE

3231526

Unavailable

27

GEAR

3231524

$57.14

28

WASHER

3231525

Unavailable

29

GEAR (18)

3231585

Unavailable

30

SHAFT, INPUT

3231580

Unavailable

31

WASHER

3231505

$3.40

32

SHIM 25, 0.3

3231562

Unavailable

32

SHIM 25, 0.1

3231563

Unavailable

33

BEARING

3231506

Unavailable

34

BEARING

3231609

Unavailable

34

BEARING

3231609

Unavailable

35

CASE, LH

3231594

Unavailable

36

GEAR (66)

3231582

Unavailable

37

SHAFT, OUTPUT

3231586

Unavailable

38

PACKING

3231553

Unavailable

39

CASE, RH

3231583

Unavailable

40

PIPE,BREATHER

3231548

Unavailable

41

PLUG, OIL

3231561

Unavailable

42

GASKET

3231539

Unavailable

43

SW,REV./NEUT.INDIC.

4110062

$32.37

44

BOLT

3231606

Unavailable

45

BOLT

3231603

Unavailable

46

BOLT

3231605

Unavailable

47

BOLT

3231536

Unavailable

48

WASHER(10)

3231599

Unavailable

49

SPKT, 11T

3221043

$39.99

49

SPKT,13T,SPLINED (Optional)

3221041

$43.99

50

SEAL, OIL

3231528

Unavailable

51

BOLT

3231602

Unavailable

52

PLUG,DRAIN,20MM,MAGNET

3231569

Unavailable

53

GASKET

3231592

Unavailable
