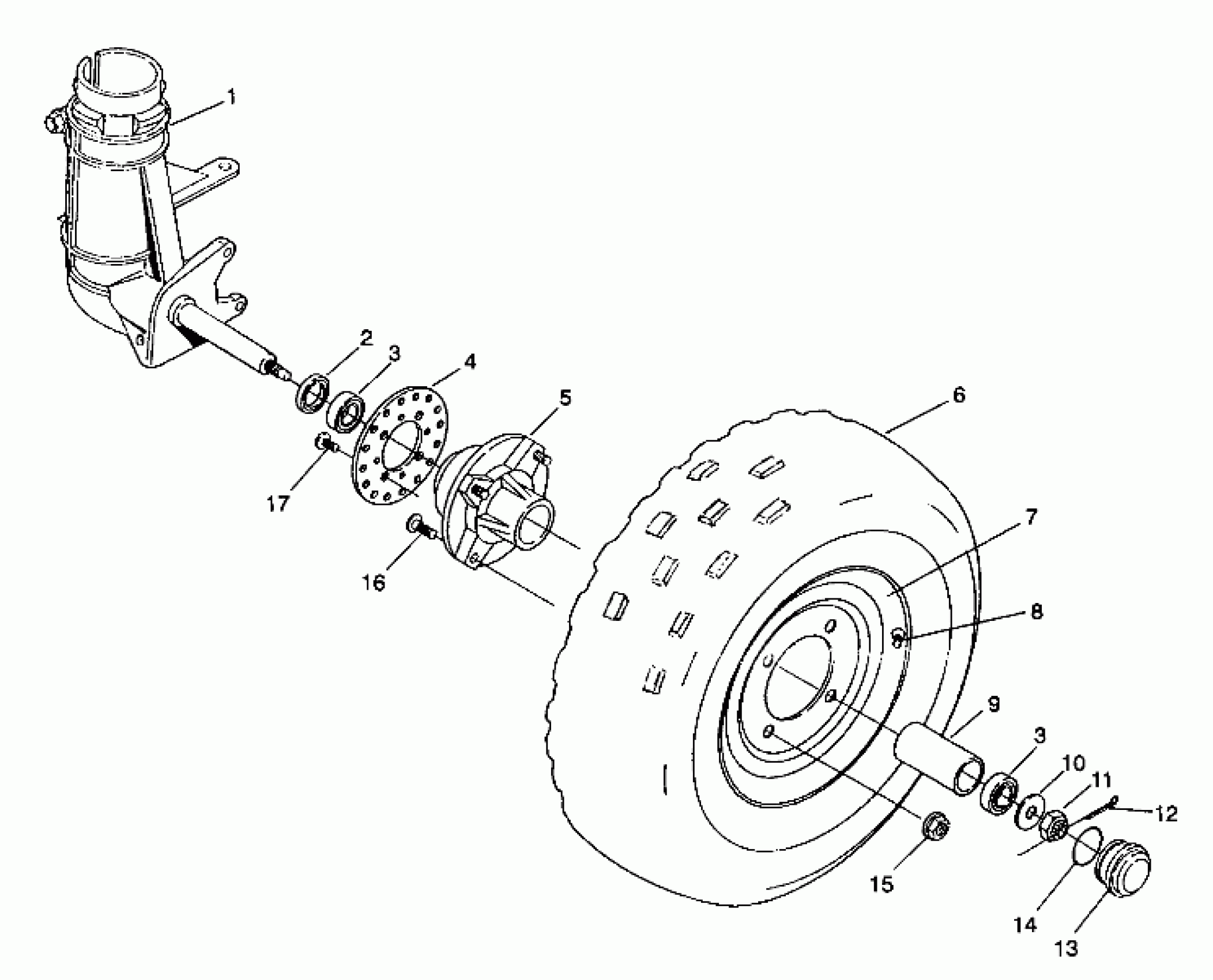

Polaris TRAIL BLAZER - W937221 FRONT WHEEL ASSEMBLY Trail Blazer W937221 (4924082408011A) Diagram

#

Description
Price

1

Support, Strut & Spindle, LH (See Pg.10, Ref.16)

----

Unavailable

2

SEAL,FRONT HUB

3610020

Unavailable

3

BEARING, BALL

3514001

$19.84

3

BEARING, BALL

3514001

$19.84

4

DISC, BRAKE

5211325

$76.89

5

HUB,WHEEL,2WD. Substituted by 1520453

5130940

$185.99

6

TIRE,FR(22X8X10) (22x8x10)

5410726

Unavailable

7

RIM,FRT,WHITE

1520175-133

Unavailable

8

VALVE-RIM

1525017

$6.46

9

SPACER, HUB,FRONT

5010256

Unavailable

10

WASHER(10)

7555721

$1.19

11

NUT(10)

7542712

$9.52

12

COTTER PIN(10)

7661407

$4.76

13

CAP, HUB

5431018

$14.56

14

O RING

5410470

$2.41

15

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

16

STUD(10)

7515523

$3.17

17

BOLT(10)

7515321

Unavailable
