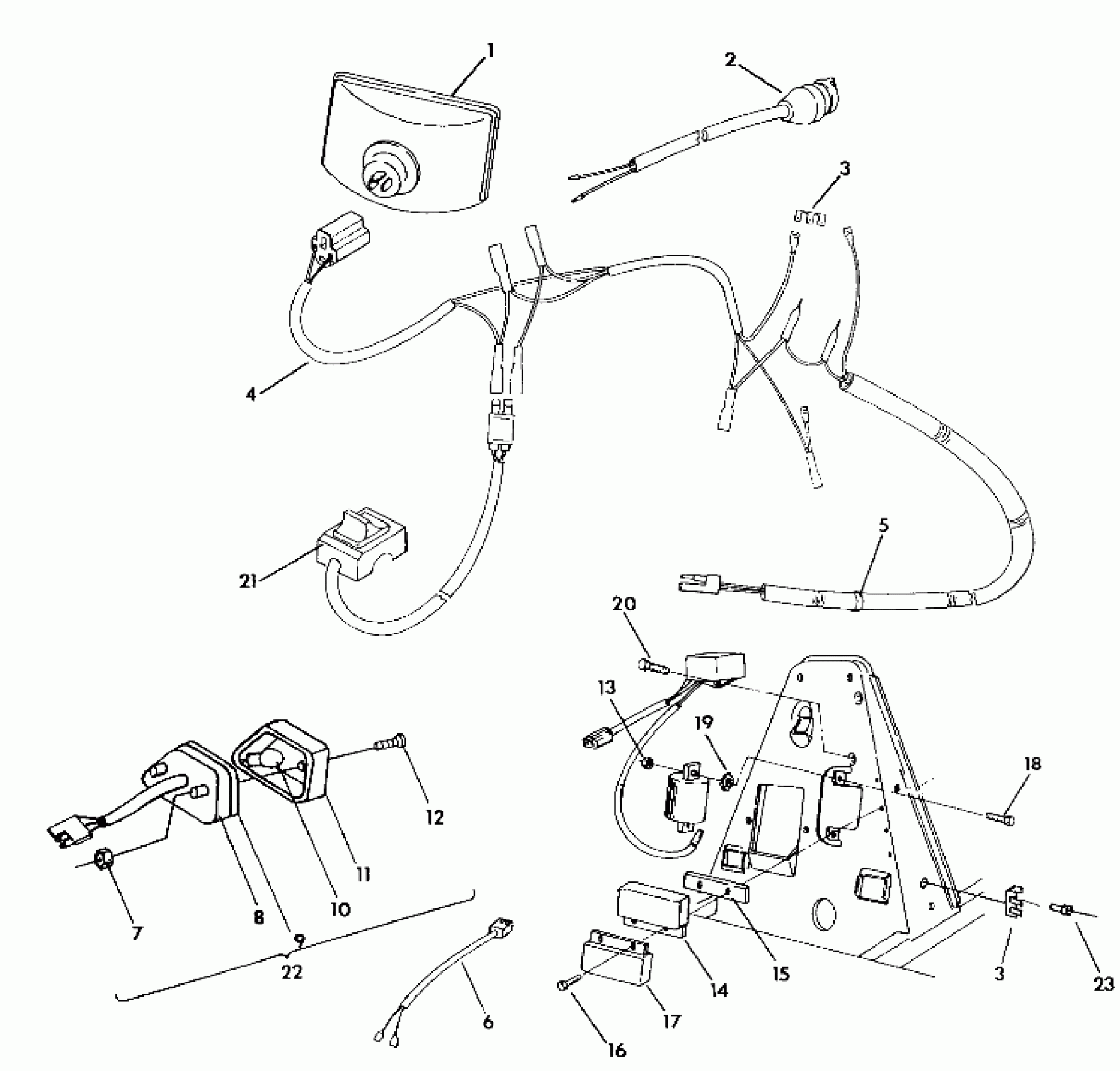

Polaris TRAIL BLAZER - W927221 WIRING HARNESS Trail Blazer / W927221 (4922852285022A) Diagram

#

Description
Price

1

HEADLIGHT ASM.

4032038

Unavailable

2

SWITCH,IGN.(MOD.) Substituted by 4110139

4110102

Unavailable

3

STRIP,TERMINAL

4040025

Unavailable

3

STRIP,TERMINAL

4040025

Unavailable

4

HARNESS, MAIN WIRE Substituted by 2460404

2460346

Unavailable

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

HARNESS,(BRAKELIGHT KIT)

2460310

Unavailable

7

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

8

BACKING,TAILLIGHT

4032064

$83.99

9

GASKET,TAILLIGHT

4032045

$4.03

10

BULB,TAILLIGHT

4030043

$6.46

11

LENS,TAILLIGHT

4032046

$32.37

12

Screw, Taillight

4032029

$4.79

13

NUT(10)

7541925

$1.49

14

REGULATOR, VOLTAGE

4060092

Unavailable

15

HEAT SINK

5210650

Unavailable

16

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

17

LIMITER,LR-47,MINKS

4060093

Unavailable

18

SCREW(10)

7512007

$3.99

19

WASHER(10)

7571602

$4.79

20

BOLT(10)

7512232

$1.49

21

SWITCH,AUX.SHUT-OFF

4110101

$60.70

22

TAIL LIGHT ASM.

2432034

$55.99

23

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49
