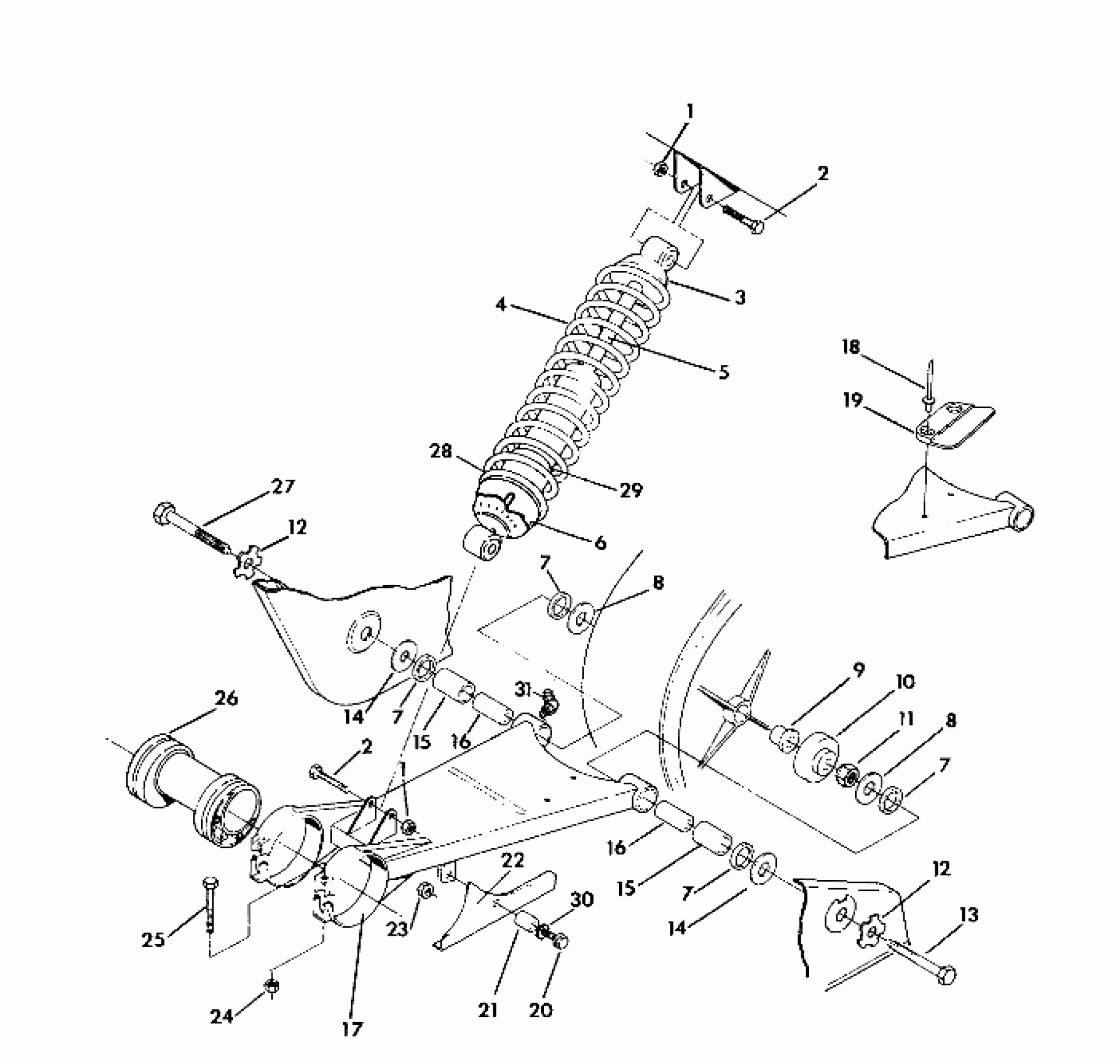

Polaris TRAIL BLAZER - W927221 SWING ARM WELD / REAR SHOCK ASSEMBLY Trail Blazer / W927221 (4922852285021A) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

2

BOLT(10)

7515415

$1.49

2

BOLT(10)

7515415

$1.49

3

RETAINER, SHOCK

5222118

Unavailable

4

SPRING,COMP,REAR Substituted by 7041204-067

7041204-157

Unavailable

5

SHOCK, REAR Substituted by 7041448

7041218

$146.71

6

CAM,ADJUSTING SPRING

5630334

$32.37

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

8

WASHER(10)

7555779

Unavailable

8

WASHER(10)

7555779

Unavailable

9

SUPPORT

3231517

Unavailable

10

ROLLER,CHAIN GUIDE

5431003

Unavailable

11

NUT,CROWN LOCK(10)

7542601

Unavailable

12

PLATE,BOLT LOCK

5220958

$35.99

12

PLATE,BOLT LOCK

5220958

$35.99

13

BOLT, SHOULDER

7512702

Unavailable

14

BUSHING, MACH.(10)

7555752

Unavailable

14

BUSHING, MACH.(10)

7555752

Unavailable

15

BEARING

3576507

Unavailable

15

BEARING

3576507

Unavailable

16

BUSHING,SWING ARM

5010255

Unavailable

16

BUSHING,SWING ARM

5010255

Unavailable

17

ARM, SWING

1580048-067

Unavailable

18

RIVET(50)

7621433

$1.49

19

GUIDE, CHAIN

5431017

$1.83

20

SCREW-FLANGED(10)

7515304

$5.59

21

Bushing

5332828

$9.59

22

GUARD,CHAIN(MODIFIED) Substituted by 5430776

5430952

$34.74

23

NUT LOCK(10)

7542321

$1.49

24

NUT,FLANGE(10)

7542522

$5.59

25

BOLT(10)

7512569

Unavailable

26

HOUSING, AXLE

5130663

Unavailable

27

BOLT, SHOULDER

7512701

$23.99

28

ADAPTER,SPRING,SEAT

5630351

Unavailable

29

SLEEVE,SPRING PROTECTOR

5431032

$31.99

30

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

31

FITTING, LUBE. (45 Degree)

7080438

$10.39
