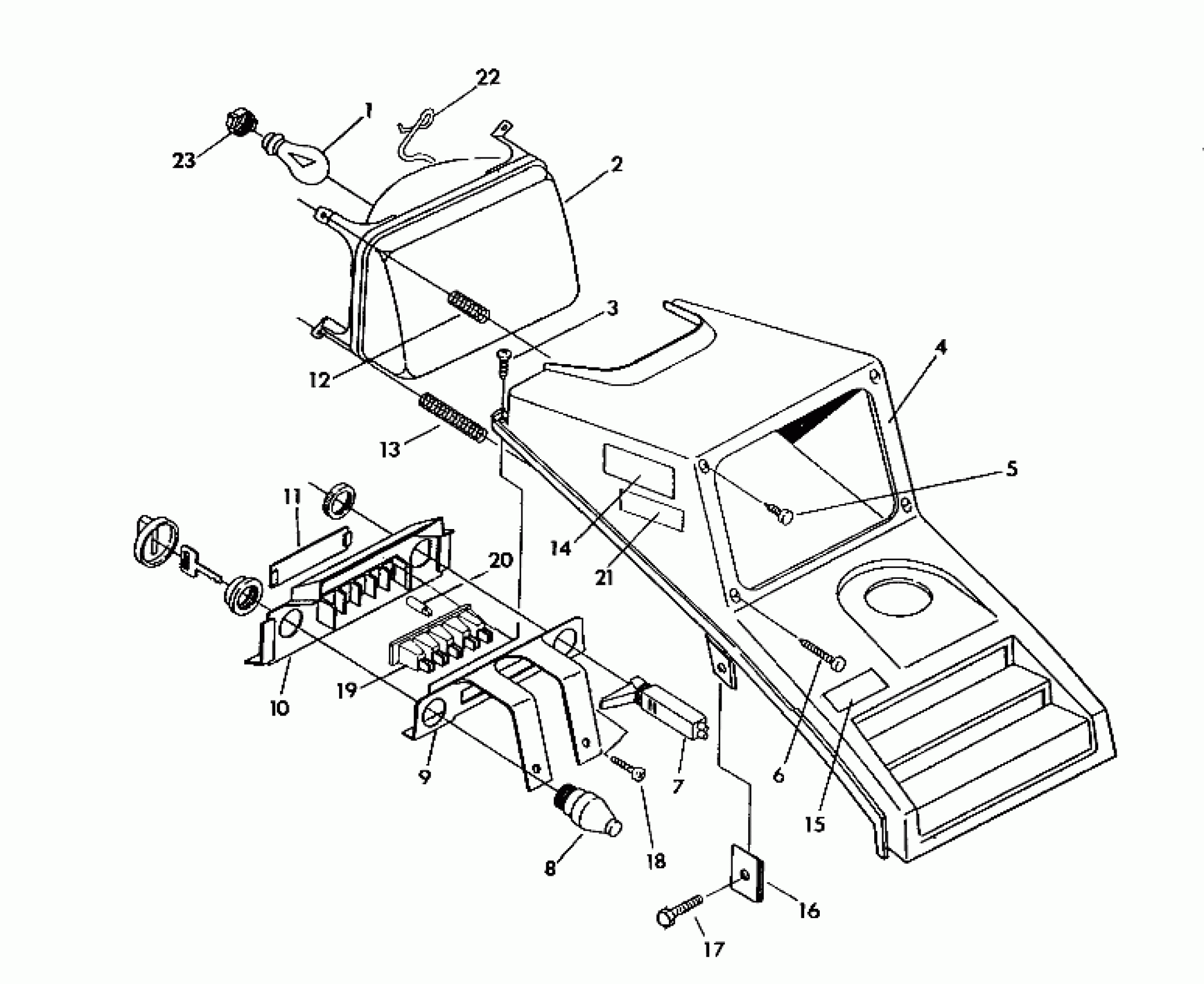

Polaris TRAIL BLAZER - W927221 HEADLIGHT ASSEMBLY Trail Blazer / W927221 (4922852285007A) Diagram

#

Description
Price

1

BULB, H/L

4030028

$29.99

2

HEADLIGHT ASM.

4032038

Unavailable

3

SCREW(10)

7512017

$4.79

4

COVER,OIL-H/L,BON.BLUE

5430973-157

$64.29

5

SCREW, ADJ.(10)

4032003

Unavailable

6

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

7

KIT-CHOKE CONTROL

2200188

$24.27

7

CABLE, CHOKE

7080371

$97.13

8

SWITCH,IGN.(MOD.) Substituted by 4110139

4110102

Unavailable

9

BRKT, IGN. PANEL

5220965-067

Unavailable

10

PANEL, IGNITION

5430995

Unavailable

11

LENS ASM,PILOT LIGHT

2652049

Unavailable

12

SPRING-ADJ

4032002

Unavailable

13

SPRING,ADJ.

4032041

Unavailable

14

DECAL,'250',PINK

7073443

Unavailable

15

LABEL, 'U.S.A.'

7073024

Unavailable

16

NUT, SPEED(10)

7670060

$3.99

17

BOLT, BLACK(10)

7512282

$1.49

18

SCREW, SEM(10)

7511862

$6.99

19

STRIP, SOCKET

4032037

$27.19

20

BULB

4030042

Unavailable

21

REFLECTOR ASM,AMBER

2670134

$9.70

22

RETAINER,H/L BULB

4032063

Unavailable

23

COVER,SOCKET,H/L. Note: Ignition key may be ordered by using the 4 digit number on the ignition switch.

4032066

Unavailable
