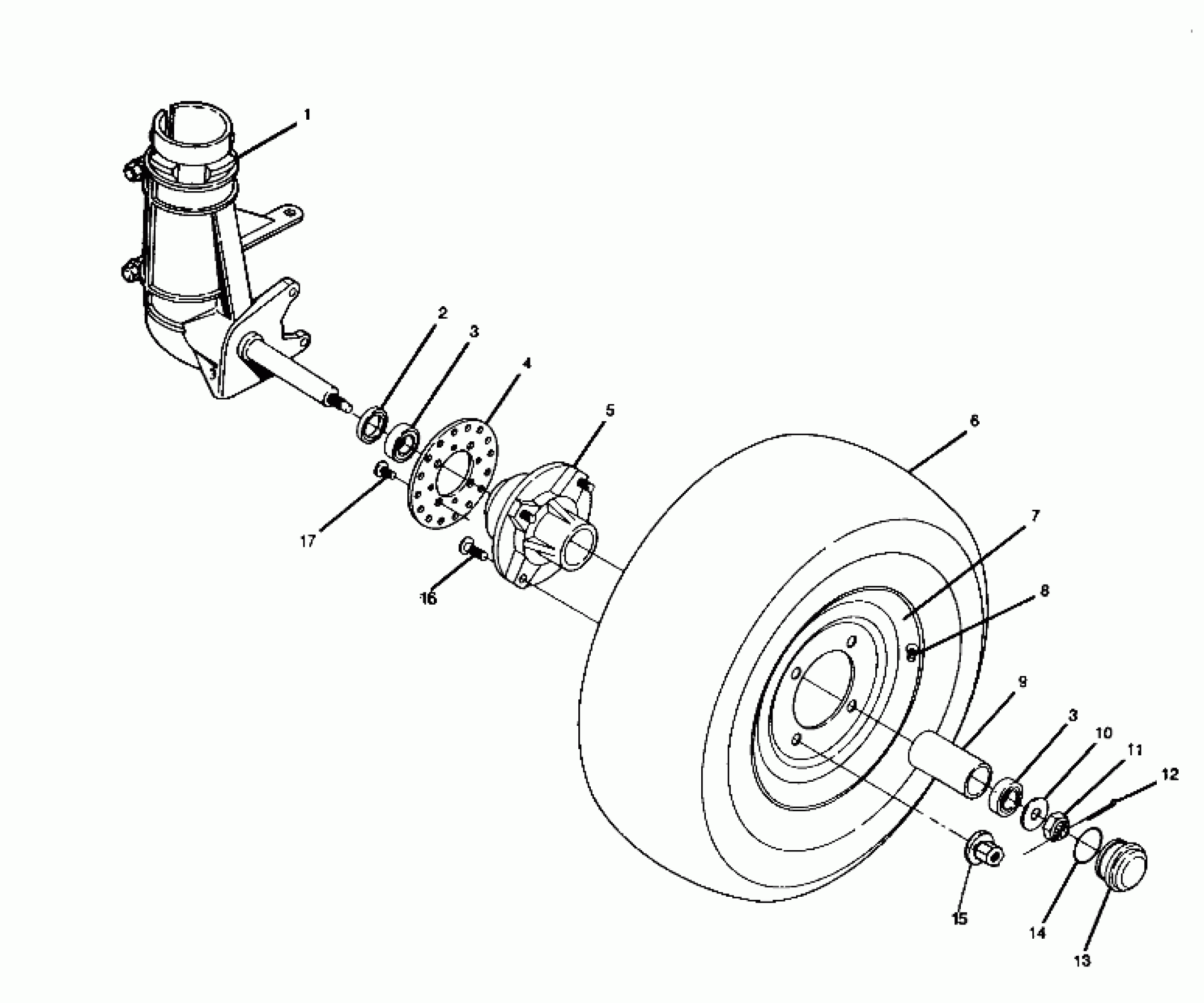

Polaris TRAIL BLAZER - W927221 FRONT WHEEL ASSEMBLY Trail Blazer / W927221 (4922852285015A) Diagram

#

Description
Price

1

SUPPORT,LH STRUT

5130803

Unavailable

1

SUPPORT,RH STRUT

5130804

Unavailable

2

SEAL,FRONT HUB

3610020

Unavailable

3

BEARING, BALL

3514001

$19.99

3

BEARING, BALL

3514001

$19.99

4

DISC, BRAKE

5211325

$76.89

5

HUB,WHEEL,FRONT

5130658

Unavailable

6

TIRE,FR,(22X8-10)

5410408

Unavailable

7

RIM,FRONT,WELD. (Silver)

1520118

Unavailable

8

VALVE-RIM

1525017

$5.59

9

SPACER, HUB,FRONT

5010256

Unavailable

10

WASHER(10)

7555721

$1.49

11

NUT(10)

7542712

$9.59

12

COTTER PIN(10)

7661407

$4.79

13

CAP, HUB

5431018

$14.39

14

O RING

5410470

$2.41

15

NUT LOCK(10)

7542321

$1.49

16

STUD,WHEEL,5/16-18(10)

7515330

Unavailable

17

BOLT(10)

7515321

$1.49
