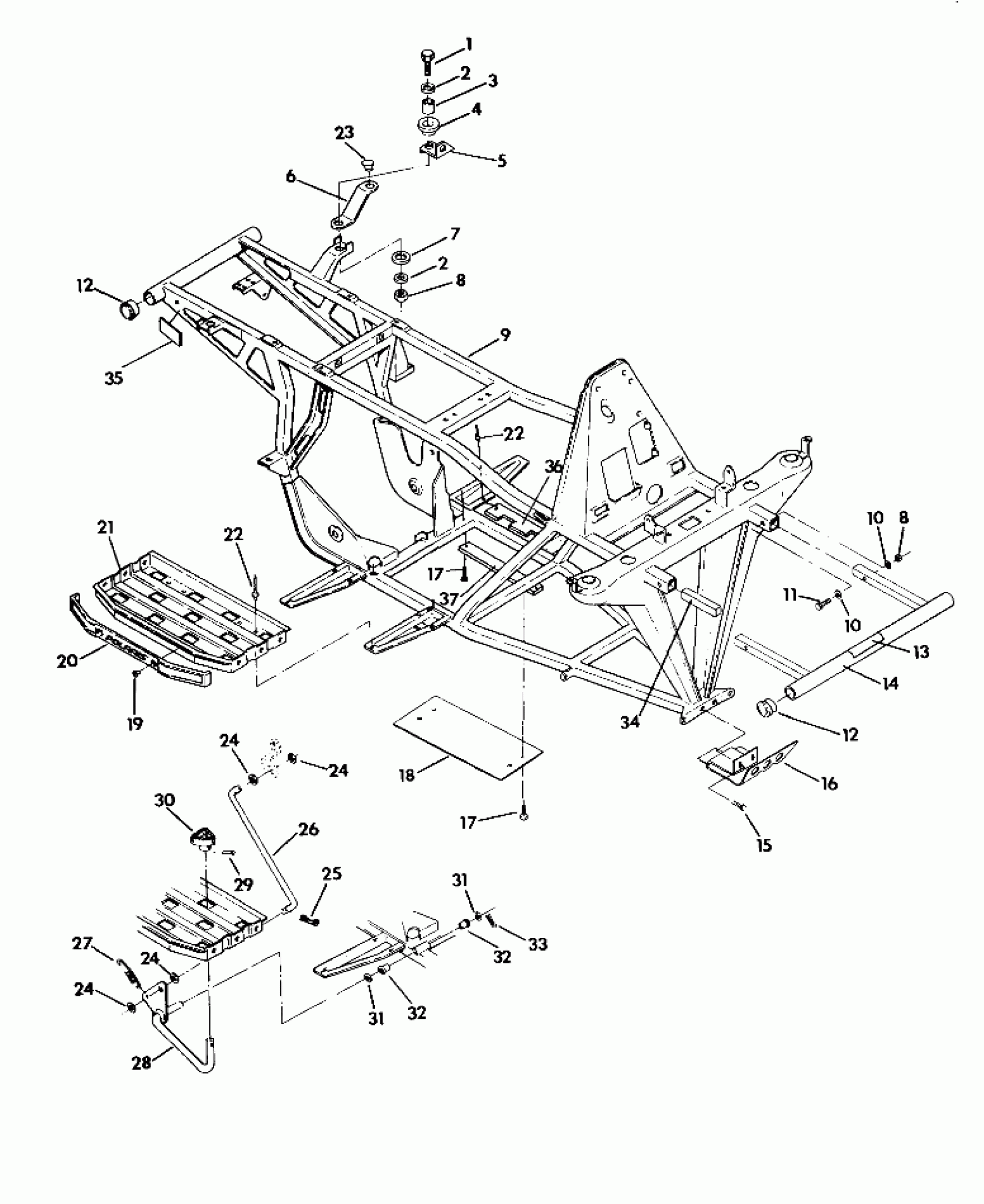

Polaris TRAIL BLAZER - W927221 FRAME ASSEMBLY Trail Blazer / W927221 (4922852285003A) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

6

SUPPORT,R.FENDER

5220902-067

$48.40

7

WASHER,RUBBER

5410436

$1.59

8

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

8

NUT-5/16-18 NYLOK-Y (Nylok)

7542324

$1.49

9

FRAME, SQUARE,(ATV) [No Longer Available]

1040270-067

Unavailable

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

11

BOLT(10)

7512329

$3.99

12

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

12

CAP, BUMPER, 4 WHL.(10) Substituted by 5410794

5430823

Unavailable

13

DECAL, F.SUSP.

7073455

Unavailable

14

BUMPER, FRONT

2670124-067

$34.92

15

SCREW(10)

7512399

$5.59

16

BRKT,LOW,F.BUMPER

2670126-067

Unavailable

17

BOLT(10)

7512232

$1.49

17

BOLT(10)

7512232

$1.49

18

GUARD, ROCK

5211257-067

Unavailable

19

RIVET,(50)

7661825

$1.49

20

Trim, Footrest

5431484

Unavailable

21

FOOTPAD,LH,(ATV) Substituted by 1040274-117

1040274

$81.75

22

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

22

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

23

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

24

WASHER(10)

7555827

$3.99

24

WASHER(10)

7555827

$3.99

24

WASHER(10)

7555827

$3.99

24

WASHER(10)

7555827

$3.99

25

PIN, COTTER(10)

7661103

$4.99

26

ROD,BRAKE LINKAGE Substituted by 5224446

5224394

Unavailable

27

SPRING-EXHAUST(10)

7042029

$4.84

28

PEDAL, BRAKE

1910045-067

$11.33

29

PIN, SPIRAL(10)

7661416

Unavailable

30

PEDAL,FOOT

5130715-067

Unavailable

31

WASHER THRUST(10)

7558702

$1.59

31

WASHER THRUST(10)

7558702

$1.59

32

BUSHING-PEDAL PIVOT

5431107

$8.79

32

BUSHING-PEDAL PIVOT

5431107

$8.79

33

COTTER PIN(10)

7661401

$1.49

34

PLUG, FRAME (Foam)

5810467

Unavailable

35

REFLECTOR ASM,RED

2670133

$5.75

36

GUARD,CLUTCH,OUTER

5222860-067

$7.06

37

GUARD,CLUTCH,INNER

5211359-067

Unavailable
