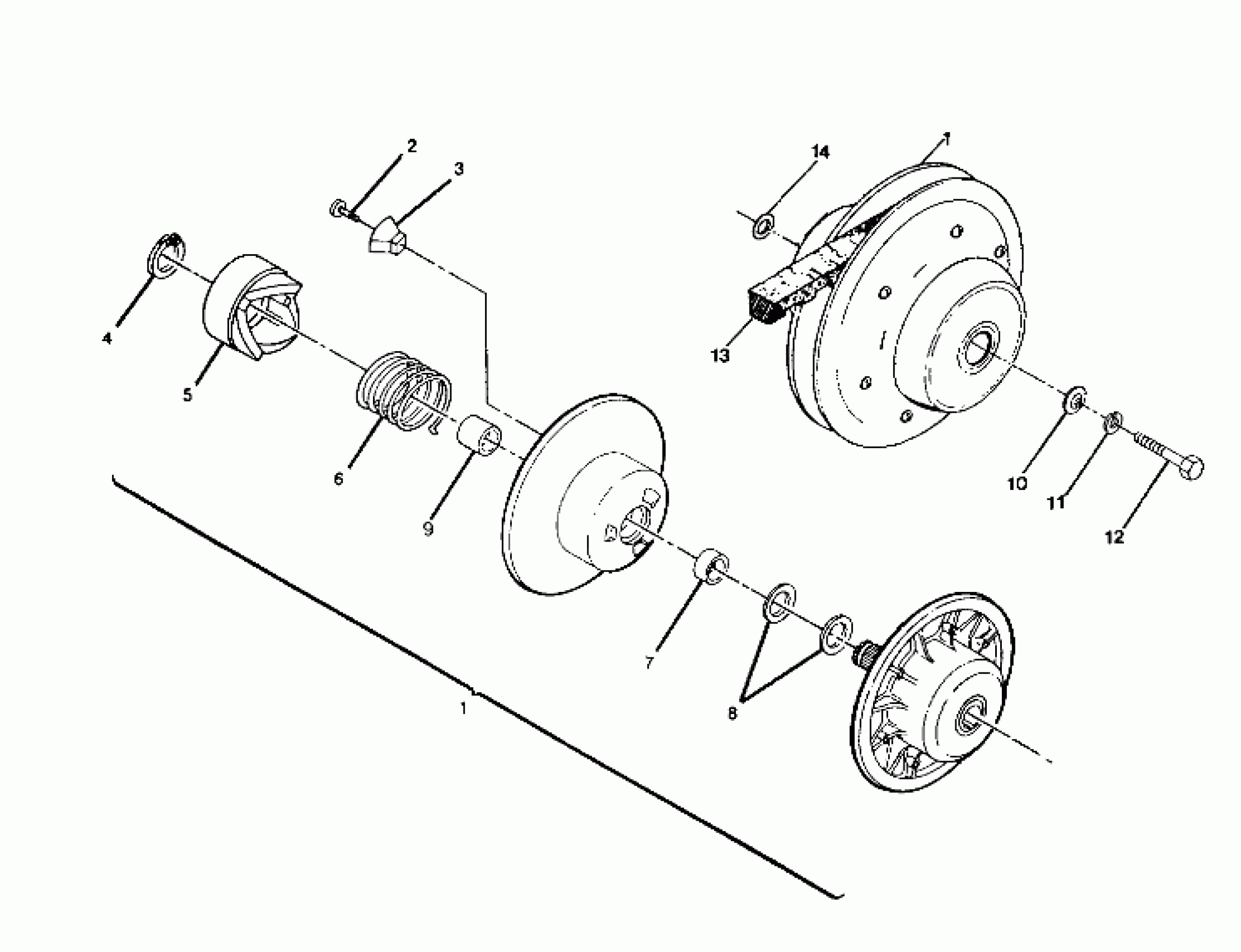

Polaris TRAIL BLAZER - W927221 DRIVEN CLUTCH ASSEMBLY Trail Blazer / W927221 (4922852285024A) Diagram

#

Description
Price

1

CLUTCH, DRIVEN Substituted by 1322158

1322138

Unavailable

1

CLUTCH, DRIVEN Substituted by 1322158

1322138

Unavailable

2

BOLT(10)

7511854

$1.49

3

BUTTON,RAMP

5430766

Unavailable

4

RETAINING RING(10)

7714401

$2.63

5

RAMP, STATIONARY

5130738

Unavailable

6

SPRING,CLUTCH,(RED)

7041198

$52.60

7

BUSHING, DRIVEN

3576504

$23.99

8

WASHER(10)

7556804

$1.49

9

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

10

WASHER, DOMED(10)

5220646

$2.39

11

LOCK WASHER(10)

7552901

$1.49

12

BOLT(10)

7515318

Unavailable

13

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

14

BUSHING(10)

7556401

Unavailable
