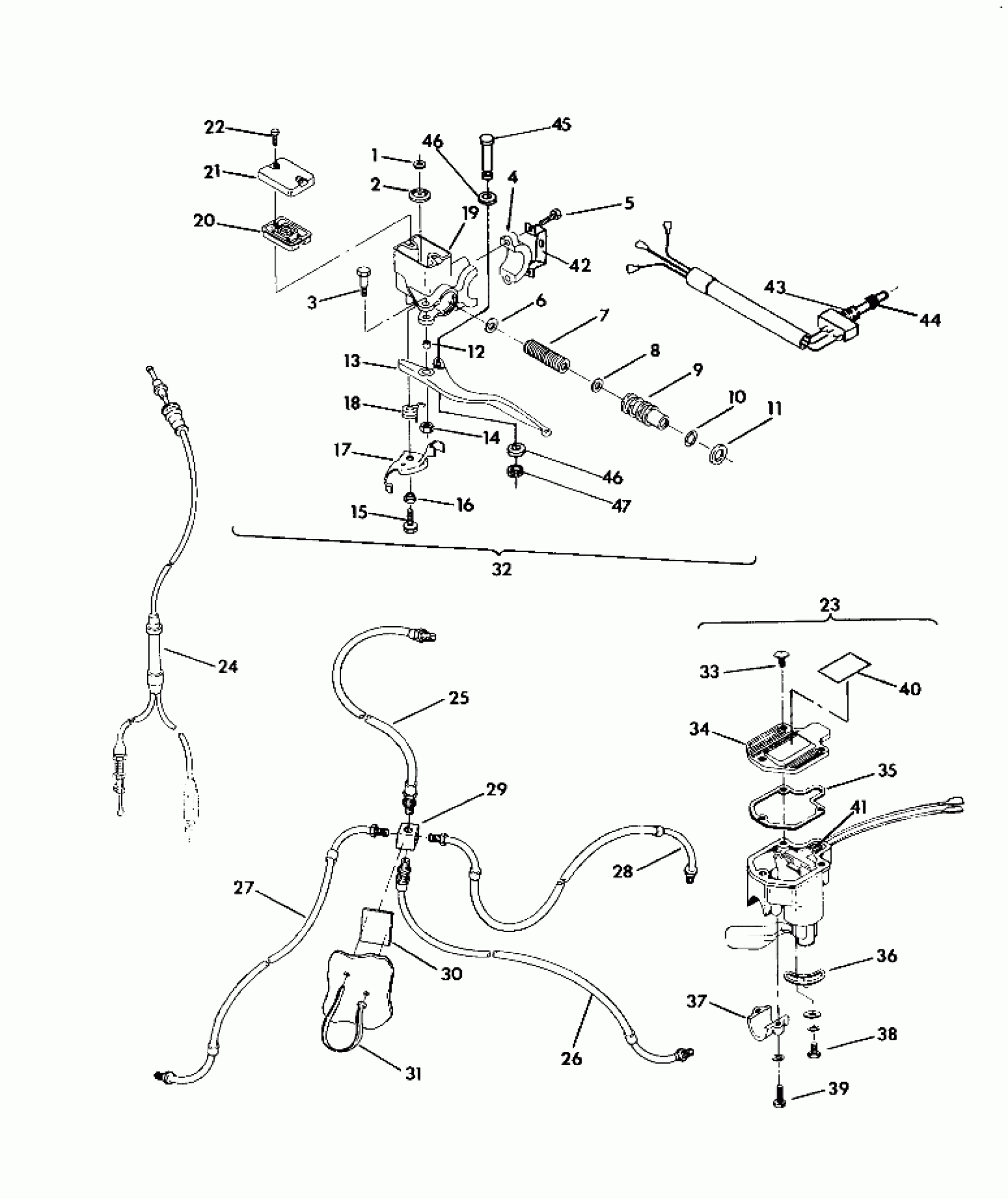

Polaris TRAIL BLAZER - W927221 CONTROL ASSEMBLY Trail Blazer / W927221 (4922852285013A) Diagram

#

Description
Price

1

WASHER, BAFFLE(10)

1930662

Unavailable

2

BAFFLE,MASTER CYL.

1930673

Unavailable

3

BOLT,BRAKE LEVER(10)

7512287

Unavailable

4

CLAMP, MASTER CYL.

5630342

Unavailable

5

BOLT,SOCKET HEAD(10)

7512290

$4.79

6

WASHER(10)

7555708

$3.99

7

SPRING,COMPRESSION,(10)

7041203

$33.87

8

U PACKING SEAL

5410164

Unavailable

9

PISTON, MASTER CYL.

5020599

Unavailable

10

O RING

5410163

$1.60

11

SEAL, OIL

3610022

Unavailable

12

BUSHING,BRAKE LEVER

5332931

Unavailable

13

LEVER, BRAKE

5630387

Unavailable

14

NUT(10)

7542124

Unavailable

15

SCREW(10)

7511866

$4.79

16

BUSHING,PK.BRAKE LEVER

5020545

Unavailable

17

LEVER,PARK.BRAKE

2050060

$5.75

18

SPRING,PK.BRAKE

7041229

$32.37

19

HSG.,MASTER CYL.

5130772

Unavailable

20

GASKET,MASTER CYL.

5410527

$8.99

21

COVER,MASTER CYL.

5630338

Unavailable

22

SCREW,W/WASHER(10)

7512050

$3.99

23

THROTTLE CONTROL ASM.

2010091

Unavailable

24

CABLE,THROTTLE CONTROL Substituted by 7080531

7080375

$204.99

25

LINE,BRAKE,UP.,W/FTGS. Substituted by 1930748 (M/C)

1930633

$84.93

26

LINE,BRAKE,LH.FRT,W/FTGS. Substituted by 1930752

1930631

$84.93

27

LINE,BRAKE,RH FRT. Substituted by 1930753

1930634

$84.93

28

LINE,BRAKE,R.,W/FTGS.

1930632

Unavailable

29

FITTING, TEE

7052044

Unavailable

30

PAD,GAS TANK [No Longer Available]

5850040

Unavailable

31

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

32

MASTER CYL.ASM.(ATV) Substituted by 2050066 (Incl. 1-5,10-19)

2050055

$235.51

33

SCREW,BUTTON HEAD

2010079

Unavailable

34

CAP

2010080

Unavailable

35

PACKING,THROTTLE

2010081

Unavailable

36

PLATE

2010075

Unavailable

37

HOLDER

2010078

$13.19

38

BOLT, HEX.

2010076

Unavailable

39

SCREW, SEMS(10)

2010077

Unavailable

40

DECAL,THROTTLE(ENG.) [No Longer Available]

7072724

Unavailable

41

SWITCH,ETC,REPL.(2WD-4X6)

4110131

Unavailable

42

BRKT,O'RIDE SW. Substituted by 5222475

5222318

Unavailable

43

SWITCH, O'RIDE

4110119

$12.79

44

BOOT, O'RIDE SW.

7080379

Unavailable

45

PIN,BRAKELEVER ROLLER

7661627

Unavailable

46

ROLLER, BRAKE LEVER

5020598

Unavailable

46

ROLLER, BRAKE LEVER

5020598

Unavailable

47

RING, RETAINING(10)

7710425

Unavailable
