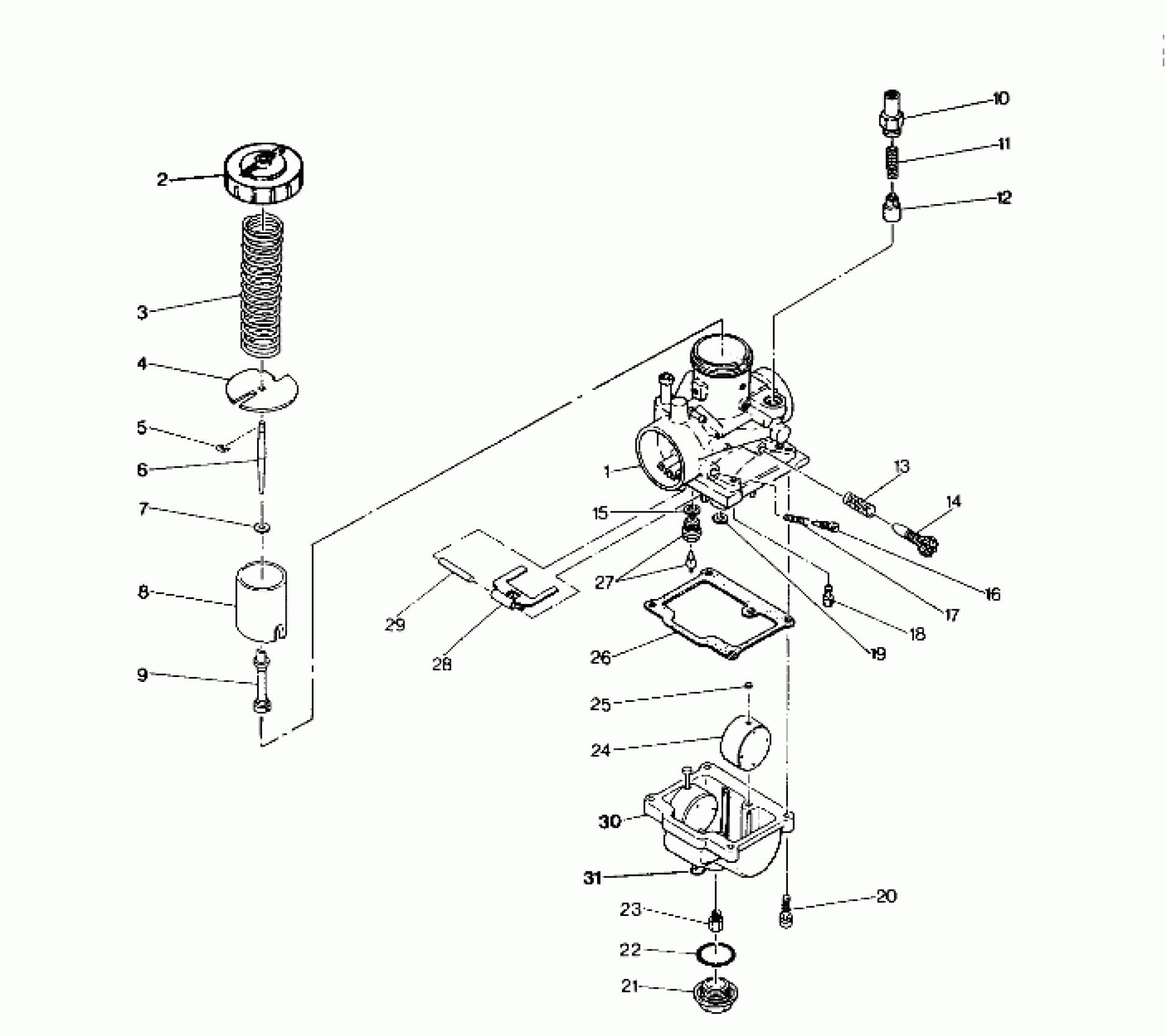

Polaris TRAIL BLAZER - W927221 CARBURETOR ASSEMBLY Trail Blazer / W927221 (4922852285034A) Diagram

#

Description
Price

1

CARBURETOR (Incl. 1-31)

3130424

Unavailable

2

TOP,MIX CHAMBER

3130060

Unavailable

3

SPRING,THROTTLE

3130354

$28.32

4

PLATE,THROTTLE

3130002

$20.22

5

E RING(10) Substituted by 3130508

3130003

Unavailable

6

JET NEEDLE Substituted by 3130155

3130356

$24.27

7

Washer

3130355

$7.19

8

VALVE,THROTTLE,(2.0)

3130420

Unavailable

9

JET,NEEDLE(0-4),169 (169)

3130409

$39.99

10

Cap, Plunger

3130359

$14.56

11

SPRING,PLUNGER

3130006

$8.89

12

PLUNGER ASM. Substituted by 3130328

3130440

Unavailable

13

SPRING,THROTTLE ADJ.

3130010

$8.89

14

Screw, Throttle Stop

3130324

$19.84

15

PACKING(10)

3130017

$4.03

16

SCREW,AIR

3130011

$19.99

17

SPRING,AIR ADJUST

3130012

$8.89

18

JET,PILOT,#40(10)

3130067

$10.99

19

WASHER (10)

3130014

$1.59

20

SCREW & WASHER(10)

3130025

$3.19

21

BOLT,BANJO

3130321

$23.99

22

O RING

3130239

Unavailable

23

JET, MAIN, #145 Substituted by 3130112

3130351

Unavailable

24

FLOAT ASM

3130021

$40.46

25

CAP,(10)

3130237

$4.03

26

PACKING,FLOAT CHAMBER

3130020

$16.17

27

VALVE, NEEDLE

3130360

$43.99

28

ARM,FLOAT

3130018

$24.27

29

PIN, FLOAT Substituted by 3130235

3130240

$8.89

30

BOWL,FLOAT,(250)

3130441

$99.99

31

VENT, ELBOW

3130442

Unavailable
